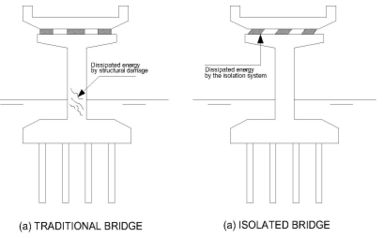

Earthquakes can be really destructive. There is no doubt. Recent seismic events have demonstrated the important effects on structures, and especially on bridges. In this sense, cablestayed bridges are not an exception, although their seismic performance during recent events has been satisfactory. Their inherent condition as part of lifelines makes the seismic design and retrofitting of such structures be seriously considered.
Traditionally, seismic protection strategies have been based on provide enough strength and ductility. In the case of buildings or bridges with adequate supports and degrees of redundancy, that approach can be satisfactory, however, in the case of structures with few degrees of redundancy, or questionable ductility, that scheme could be inadequate, and worse, dangerous, as usually happens with cablestayed bridges. All traditional modern strategies to design seismic structures are focused on the adequate comprehension of the mechanisms involved, in which ductility can be provided by some elements specially designed for these purposes. In these sense, strategies such as performedbased design or displacementbased design consider that welldesigned structures need to dissipate enough energy by hysteresis in order to obtain economic and safe structures.
The incorporation of additional energy dissipation and isolation devices, by means of passive, active, semiactive and hybrid strategies, constitutes without doubt efficient schemes to protect structures controlling or avoiding damage, in which the energy dissipation is guaranteed through the action of external elements specially designed for those purposes. By this way, now it is possible to provide enough strength and energy dissipation capacity at the same time, avoiding damage on important structural elements, with the subsequent guaranty of the functionality, very important on lifelines, even during strong ground motions.
The present work constitutes an approach to the seismic protection of cablestayed bridges including the incorporation of fluid viscous dampers as additional energy dissipation devices. The idea of the authors is to provide an uptodate vision of the problem taking into account that longperiod structures such as those proposed here, need to be adequately protected against strong motions, and considering that, because of their importance, an elastic behaviour is desirable. Chapter 1 describes the object to study in general terms. Chapter 2 constitutes a stateoftheart review regarding the seismic behaviour and performance of fluid viscous dampers as external energy dissipation devices. The mechanical behaviour and technological aspects are now introduced with an energetic point of view, in which some practical applications are exposed and discussed. Chapter 3 describes the seismic response of cablestayed bridges without external seismic protection, considering a parametric analysis in order to study the effects of the stay cable layout, stay spacing and deck level. A complete modal characterization is exposed, followed by a response spectrum analysis for comparative purposes. The effect of variations of the stay forces is analyzed, and finally, a nonlinear stepbystep analysis is performed for the critical structures, considering the velocity dependence of such bridges and the effects of farfault and nearfault ground motions. The last Chapter exposes the seismic analysis of the selected structures including the incorporation of fluid viscous dampers as passive additional energy dissipation devices. Because of the inherent nonlinear behaviour of the structures and external devices, a mandatory nonlinear direct integration timehistory analysis is performed for all the cases, in which parametric analyses are carried out in order to select the best damper parameters, and for the case of both farfault and nearfault ground motions. In this part, comparative results are exposed with the aim to propose some practical recommendations.
Bridges are without a doubt attractive civil engineering works from a structural point of view. But they are not only exciting as a structure: the project, construction, maintenance, operation as well as functional, aesthetic, economic and political aspects make them extremely interesting constituting a great social event [Maldonado et al, 1998].
Suspension bridges are very interesting and useful structures because they can be used for longspans, solving many practical problems for which is necessary to cross large distances without intermediate supports. These kinds of structures are a challenge from all points of view, due to the constant increase of the main span length demand, constituting most of the times a human whim or that competitive and insatiable desire to break goals at any price. Cable supported bridges can be divided into suspended and cablestayed bridges, as can be appreciated in Fig. 1.1.
From a structural point of view, both types of bridges are completely different, since contrary to suspended bridges, in cablestayed bridges the cables are prestressed. Keeping in mind functional and economical aspects, suspension bridges permit longer spans with more economical results than cablestayed bridges [Podolny and Scalzi, 1986]. Actually, the longer main spans in cablestayed bridges reach 900 m, although recent investigations show the feasibility and possibility of building bridges of this kind with main spans exceeding 1000 m. These studies are based on the current high standard technologies and the lightness of superstructures that use orthotropic slabs [Aschrafi, 1998; Nagai et al, 1998].
In spite of the relative simplicity of bridges, the recent earthquake events of San Fernando (1971), Loma Prieta (1989), Northridge (1994), Kobe (1995) and Taiwan (1999) have shown that these systems are very vulnerable, mainly those of reinforced concrete. For that reason, is a highpriority to improve the comprehension of this phenomenon, learning from the recent earthquake lessons [Priestley et al, 1996]. These structural systems expose a few degrees of redundancy, and the collapse mechanisms should be known in detail to reach an appropriate performance. Some aspects that should be considered are: degree of redundancy of the system, soilstructure interaction, spatial variability effects, near source effects, geological faults and geotechnical aspects, bridge length effects, vertical component of motion and damping [Valdebenito, 2005]. All these aspects are explained in the references of Ghasemi (1999), Kawashima (2000); Cheung et al (2000) and Calvi (2004).
The structural analysis of a bridge depends undoubtedly on the structural modelling. Therefore, a welldone modelling is reflected in the degree of accuracy of the results. The vertiginous development of highperformance computers permits to solve more complex and large structures, testing a lot of conditions in a relatively short time. Thus, computing time will depend on the modelling used and the required accuracy for the results. Because of almost all the seismic isolators or energy dissipators experience nonlinear behaviour, consideration of nonlinear aspects in the analysis of the bridge – energy dissipation system is advisable. In spite of the current computer capacity and better nonlinear structural analysis software, it is clear that the time and knowledge level of the designer are two serious limitations of the extensive application of these methodologies [Jara and Casas, 2002]. In fact, sometimes is preferable the use of simplified methods that show sufficiently accurate results in short time. In the case of longspan cablestayed bridges, the problem is more complex, maybe due to the high nonlinear behaviour of those structures, and hence, nonlinear analysis becomes an indispensable condition, leaving aside the classical response spectrum analysis or the equivalent static analysis. Thus, a relatively complex structure can be solved by the iterative definition of the stiffness and equivalent damping.
Traditional seismic control strategies are based on the modification of stiffness, mass or geometric properties of the structure, reducing inertial forces and displacements caused by an earthquake. Thus, in the current design is necessary to permit controlled structural damage by the ductility provided, with the aim of avoiding too conservative designs and expensive costs. In other words, in the current philosophy, a structure with energy dissipation capacity is required, more than a resistant structure against all events. Although it is certain that traditional strategies for the seismic protection of bridges have progressed in the last years, for appropriate bridge strength and to assure a satisfactory behaviour for different intensity levels, development of special vibration control devices has given origin to a new path in seismic engineering. In general terms, instead of provide more strength, is more attractive to reduce internal forces and displacements through special isolation systems or energy dissipation devices. This energy distribution means that the seismic energy proceeding from the subsoil is distributed to different structural components and thus significant energy accumulation is avoided.
Amongst the existent control systems on bridges, passive strategies are well accepted because of their low comparative price, simple installation and maintenance as well as their great reliability and better theoretical and technological development [Jara and Casas, 2002]. Active, semiactive and hybrid systems seems to be an excellent strategy for the seismic control of structures, however, a lack of regulations and uncertainty regarding their real performance under strong ground motions are important limitations for their application. Without a doubt, there is a very promising future, mainly with semiactive and hybrid systems because of their incomparable advantages, although now their use is very limited, not been properly tested on real structures with real earthquakes. Thus, the general approach reducing the seismic demand of structures, more than trying to increase their strength or deformation capacity with appropriate criteria, is without a doubt an advantageous seismic protection system. These new seismic control strategies are conceived for the reduction of the seismic demand, and the appropriate application of this approach leads to systems that behave elastically during great earthquakes, on the contrary of a traditional design, where high energy dissipation capacity by controlled damage is needed. Passive control systems convert the kinetic energy of the system into heat, transferring it among different vibration modes. They do not require additional external energy for their operation, constituting their main advantage. In general terms, these systems operate elastically during great earthquakes, permitting structural functionality conditions after the event. Because of their low cost, high efficiency and low maintenance, they are additional seismic protection systems widely used in the world. Passive control systems can be classified as follows (Table 1.1):
Base Isolation  Energy Dissipators  Seismic Connectors  Resonant Dampers
1. Rubber Bearings (RB)  1. Metallic Yield Dampers (MD)  1. Shock transmission Units TU)  1. Tuned Mass dampers (TMD)
2. High Damping Rubber Bearings (HDR)  2. Friction Dampers (FD)  2. Displacement Control Devices (DCD)  2. Tuned Liquid Dampers (TLD)
3. Lead Rubber Bearings (LRB)  3. Viscoelastic Dampers (VE)  3. Rigid Connection Devices (RCD)
4. Rubber Bearings with Additional Energy Dissipation  4. Fluid Viscous Dampers (VF)
5. Sliding Bearings (SB)  5. Lead Extrusion Dampers (LED)
6. Shape Memory Alloy (SMA)
Base isolation and dissipation result in decreasing the energy applied to the system and the transformation from energy to heat. This is also designated as energy approach, which especially takes into account the energy character of the seismic event. In the seismic isolation, the structure is separated from the subsoil, automatically limiting the energy that affects the structure, which is considerably reduced. As a result, the natural period is increased, which causes a considerable reduction of the structural acceleration during seismic events. Depending on the installed type of isolator, they do not only guarantee the vertical load transmission but also the restoring capacity during and after a seismic event.
Base isolation systems and seismic connectors applied to bridges have been properly tested and used for more than 20 years, and there is a lot of documentation and experience regarding to this. In relation to energy dissipation systems, the use of fluid viscous dampers can be the future for the application to large structures such as longspan cablestayed bridges, mainly due to their high capacity, robustness, and good results of recent investigations.
In the case of cablestayed bridges, their seismic behaviour has been, in general terms, very satisfactory, maybe due to their great flexibility. In spite of the abovementioned, comprehension of their behaviour is very complex being appropriate and promising to consider special systems of additional seismic protection. On those structures, these additional systems have been applied basically to control vibrations on cables due to the effect of the wind and rain (rain  wind vibration), to solve aerodynamic problems on unstable and complex structures and for the seismic retrofit of existing bridges. Now, application of these devices for the control of seismic actions begins to be used with more frequency; not only on the cables to mitigate the cabledeck interaction [Macdonald and Georgakis, 2002] but also to isolate the superstructure, as can be appreciated in the recently inaugurated RionAntirion Bridge (Fig. 1.4), in the Gulf of Corinthian, Greece [Infanti et al, 2004].
Design of almost all cablestayed bridges located at moderatetohigh seismicity zones is more complex than design of conventional bridges. Bridge design regulations and modern previsions have been developed in general terms and for standard bridges, in order to provide safe and economical structures. As general design philosophy, it is accepted the important request of having structural damage but permitting emergency communications for a not frequent severe earthquake. For the new cablestayed bridges, code previsions cannot be applicable, being necessary the urgent improvement of regulations and general recommendations for the seismic design of these bridges, based on numeric, experimental or fullscale testing investigations. Also, the lack of information about the real performance of these bridges during strong earthquakes increases the uncertainty in terms of an appropriate design [AbdelGhaffar, 1991]. In fact, according to Eurocode 8 Part 2 [CEN, 1998b], cablestayed bridges are classified as special bridges, aspect that implies that these regulations need to be considered only as general recommendations. At the moment, existent regulations with regard to passive systems are limited to seismic isolation and energy dissipation devices, without the incorporation of hybrid, active or semiactive systems. Design specifications for bridges with LRB systems, published by the New Zealand Ministry of Works and Development in 1983, were the first regulations about bridges with special seismic protection based on isolation and energy dissipation systems. Later, in the 90s, official recommendations for the first time in USA [1991, 2000], Italy (1991), Japan (1996), and Europe through Eurocode 8 [CEN, 1998a, 1998b] were published.
The early stayed bridges used chains or bars for the stays. The advent of various types of structural cables, with their inherent high carrying capacity and ease of installation, led engineers and contractors to replace the chains and bars [Podolny and Scalzi, 1986].
Cablestayed bridges might have become a conventional form of construction had it not been for the bad publicity that followed the collapses of two bridges: the 79 m pedestrian bridge crossing the Tweed River near DryburghAbbey (England) in 1818; and the 78 m long bridge over the Saale River near Nienburg, Germany, in 1824 [Podolny and Scalzi, 1986]. The famous French engineer, Navier, discussed these failures with his colleagues, and his adverse comments are assumed to have condemned the staybridge concept to relative obscurity. Whatever the reason, engineers turned to the suspension bridge, which was also emerging, as the preferred type of bridge for river crossings.
The principle of using stays to support a bridge superstructure returned with the works of John Roebling. The Niagara Falls Bridge (Fig. 1.6), the Old St. Clair Bridge in Pittsburgh (USA), the Cincinnati Bridge over the Ohio River (USA) and the Brooklyn Bridge (Fig. 1.7) in New York (USA) are good examples.
Fig. 1.6 Niagara Falls Bridge [Courtesy of the Niagara Falls Bridge Commission]
Fig. 1.7 Brooklyn Bridge [from [2] www.elclubdigital.com]]
It should be noted that the stays used by Roebling in his suspension bridges were used as an addition to the classical suspension bridge with the main catenary cable and its suspenders. During Roebling’s time the suspension bridge concept was suffering with failures resulting from wind forces. He knew that by incorporating the diagonal stays he could minimize the susceptibility of his structures to adverse wind loading. However, it is not clear whether he used the two suspension systems compositely.
Towards the end of the 19^{th} century, the success of these hybrid structures – part suspension, part stayed – resulted in a slowing down of the use of structures supported exclusively by inclined rods. However, it was not until 1899 that the French engineer A. Gislard further advanced the development of stayed bridges by the introduction of a new system of hangers, at the same time economic and sufficiently rigid [Walter, 1999]. The system was characterized by the addition of cables intended to take up the horizontal components of the forces set up by the stays. This arrangement cancels out any compressive forces in the deck and thus avoids deck instability.
The increasing popularity of this new type of structure with German engineers slowly extended to other countries. Thus, the Italian architect R. Morandi designed several cablestayed bridges in reinforced and prestressed concrete. His most outstanding work is the bridge on Lake Maracaibo, Venezuela, built in 1962 (Fig. 1.10).
The international development of this bridge type began in the 1970s, but a very big step forward took place in the 1990s, when cablestayed bridges entered the domain of very long spans which was previously reserved for suspension bridges. As examples, the Barrios de Luna Bridge – also called the Fernandez Casado Bridge – in Spain (430 m, 1983, Fig. 1.11); the Yang Pu Bridge in Shangai, China (602 m, 1993, Fig. 1.12); the Normandie Bridge in Le Havre, France (856 m, 1994, Fig. 1.13) and the Tatara Bridge in Japan (890 m, 1998, Fig. 1.14). It is extremely interesting to analyse the progress in the world record for cablestayed bridges, since it provides keys to understand the evolution of their design (Fig. 1.15).
The recently inaugurated Millau Bridge in the Tarn Valley, France, is one of the world’s famous multispan cablestayed bridge, with 342 m main span length and 343 m height for the highest pylon. This also called “bridge over the clouds” is one of the more interesting French engineering works at the present (Fig. 1.16). In the same way, the new Sutong Bridge, in Nantong, China (inaugurated in 2008), is considered the longest cablestayed bridge of the world, with a main span length of 1088 m, and surpassing the Japanese record reached with the Tatara Bridge (Fig. 1.17).
Fig. 1.11 Barrios de Luna Bridge, Spain [from en.structurae.de]
Fig. 1.12 Yang Pu Bridge, China [photo: M. Virlogeux]

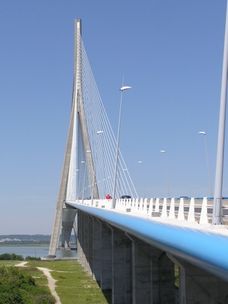

Fig. 1.13 Normandie Bridge, France [from fr.structurae.de]
Fig. 1.14 Tatara Bridge, Japan [from [3] www.answers.com]]

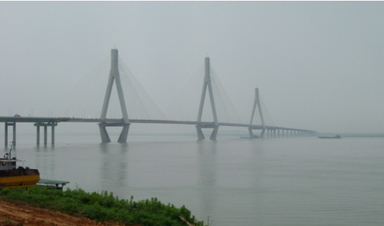

Fig. 1.16 Millau Bridge, France
Fig. 1.17 Sutong Bridge, Nantong, China
Although the use of energy dissipation devices began as an attempt to control the cable vibration on cablestayed and suspension bridges, very common on those structures due to the inherent low damping of the cable system, the inclusion of additional seismic protection, with the introduction of passive and active energy dissipation devices, has just begun. In this sense, the use of fluid viscous dampers in the recently inaugurated RionAntirion Bridge (Greece) is an exceptional opportunity to test in situ, with a real structure in a highseismicity zone, those devices (Fig. 1.18). The deck of this multispan cablestayed bridge is continuous and fully suspended from four pylons (total length of 2252 meters). Its approach viaducts comprise 228m of concrete deck on the Antirion side and 986m of steel composite deck on the Rion side. The Main Bridge seismic protection system comprises fuse restraints and viscous dampers of dimensions heretofore never built. The same act in parallel, connecting the deck to the pylons. The restrainers of the Rion Antirion Bridge were designed as a rigid link intended to withstand high wind loads up to a predetermined force. Under the reaction of the design earthquake, fuse restrainers will fail and leave the dampers free to dissipate the earthquakeinduced energy acting upon the structure. The Approach Viaducts were seismically isolated utilizing elastomeric isolators and viscous dampers [Infanti et al, 2004].
The recent application of active (i.e. hybrid, semiactive) systems on cablestayed bridges is very limited. Actually, a benchmark structural problem for cablestayed bridges was defined in order to provide a test bed for the development of strategies for the seismic control of those structures. The problem is based on the new cablestayed bridge that spans the Mississippi River: the Bill Emerson Memorial Bridge, in Cape Girardeau, Missouri, USA. [Dyke et al, 2002].
Structures situated on seismic areas must be designed to resist earthquake ground motions. A fundamental rule regarding the seismic design of structures, express that higher damping implies lower induced seismic forces. For conventional constructions, the induced earthquake energy is dissipated by the structural components of the system designed to resist gravity loads. It is well known that damping level during the elastic seismic behaviour is generally very low, which implies not much dissipated energy. During strong ground motion, energy dissipation can be reached through damage of important structural elements, and considering only the resulting response forces within the structure due to an earthquake leads to massive structural dimensions, stiff structures with enormous local energy accumulation and plastic hinges. This strengthening method combined with usual bearing arrangements permits plastic deformations by way of leading to yield stress and cracks. In this sense, structural repair after an important seismic event is generally very expensive, the structure is set temporarily out of service and sometimes a lot of damaged structures must be demolished [Alvarez, 2004].

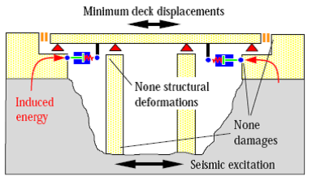

General concepts for appropriate protection of structures against earthquakes do not exist, as every structure is quite unique and requires individual considerations. Earthquakes are often interpreted in terms of deformations and acting forces induced upon the structure. As a consequence, there is a tendency to think only about increasing the strength of the structure. Actually, forces and displacements are nothing but a mere manifestation of seismic attacks and do not in fact represent their very essence. An earthquake is actually an energy phenomenon and the forces causing stresses in the structure are the final effect of that event.
In recent years, other strategies have been developed to reduce the seismic response of the structures using additional passive devices. A passive control system may be defined as a system which does not require an external power source for operation and utilizes the motion of the structure to develop the control forces, as a function of the response of the structure at the location of the passive control system, according to Fig. 2.1.
Passive supplemental damping strategies, including base isolation systems, viscoelastic dampers and tuned mass dampers are well understood and are widely accepted by the engineering community as a means for mitigating the effects of dynamic loading on structures. In this sense, energy dissipation systems can be considered as an important passive strategy in which the objective of these devices is to absorb a significant amount of the seismic input energy, thus reducing the demand on the structure by means of the relative motion within the passive devices which, in turn, dissipate energy. In general terms, these devices are not part of the structural system that resists gravity loads, constituting an external system that can be easily replaced after a strong earthquake. Of course, in this case the structural functionality is not affected as well as the stability of the structure, with a low replacement cost of such devices compared with repair or service interruption costs.
Additional damping devices dissipate energy by means of yielding, friction, Viscoelastic action or fluid flow through orifices [Soong and Dargush, 1997; Constantinou, 2003]. In this sense, fluid viscous dampers constitutes one of the well accepted energy dissipation systems by the scientific and engineering community, being considered as additional damping system in this work, as was previously explained and justified. These systems are capable of dissipate an important amount of energy during strong ground motions as well as to control long period displacements. These dampers are basically comprised of a cylinder filled with silicone fluid (oil or paste) and a piston that divides it into two chambers and is free to move in both directions. In case of sudden movements, due to earthquakes or other dynamic actions like braking, wind, etc., lamination of silicone fluid occur through an appropriate hydraulic circuit and leads to energy dissipation. In case of slow displacements, due to structure thermal expansion, such flow is obstructed, so that during normal service the behaviour is substantially rigid, acting like a shock absorber. Because of those advantages, utilization of this technology permits to take full advantage of the strength of structural elements, because it is possible to maximize energy dissipation reaching the maximum level of force that the structure can sustain, without exceeding it. As a consequence, structural elements remain in the elastic field also during high intensity earthquakes.
Actually, manufacture of fluid viscous dampers permits to design such devices for a wide range of specific requirements of velocity and force, constituting a good choice for implementation on new and existing facilities. Those devices are properly tested at specific laboratories, especially when they are applied on important structures or they are required for special conditions. In this sense, manufacturers such as Alga s.P.a. (Milano, Italy); FIP Industriale s.P.a. (Selvazzano, Italy), Taylor Devices, Inc. (New York, USA), Maurer Söhne (München, Germany), Mageba (Bülach, Switzerland) or Nanjing Damper Technology Engineering Co. Ltd (Nanjing, China) design and manufacture a wide variety of such systems.
Today an increasing number of applications of energy dissipation devices on bridges for the control of seismic displacements and energy dissipation is taking place. The more common solution is, probably, the use of linear / nonlinear viscous dampers, permitting an adequate control of the displacements avoiding an increase of the structural internal forces and the increase of stiffness for piers and abutments [Jerónimo and Guerreiro, 2002].
The new tendencies regarding the seismic analysis and design of fluid viscous dampers capture the frequency dependence of such devices [Singh et al, 2003]; the earthquake response of nonlinear fluid viscous dampers [Peckan et al, 1999; Lin and Chopra, 2002]; the seismic performance and behaviour of these devices during nearfield ground motion [Tan et al, 2005; Xu et al, 2007] and the performancebased design of viscous dampers [Kim et al, 2003; Li and Liang, 2007]. A stateoftheart review can be found in the works of Lee and Taylor (2001) and Symans et al (2008).
As with many other types of engineered components, the requirements, needs and available funds from the military allowed rapid design evolution of fluid dampers to satisfy the needs of armed forces. Early fluid damping devices operated by viscous effects, where the operating medium was sheared by vanes or plates within the damper. Designs of this type were mere laboratory curiosities, since the maximum pressure available from shearing a fluid is limited by the onset of cavitation, which generally occurs at between 0.06 N/mm^{2} and 0.1 N/mm^{2}, depending on the viscosity of the fluid. This operating pressure was so low that for any given output level, a viscous damper was much larger and more costly than other types [Taylor, 1996].
In the late 1800`s, applications for dampers arose in the field of artillery, where a high performance device was needed to attenuate the recoil of large cannons. After extensive experimentation, the French Army incorporated a unique (and “topsecret”) fluid damper into the design of their 75 mm gun. These first fluid damper designs used inertial flows, where oil was forced through small orifices at high speeds, in turn generating high damping forces. This allowed the damper to operate at relatively high operating pressures, in the 20 N/mm^{2} range. The output of those devices was not affected by viscosity changes of the fluid, but rather by the specific mass of the fluid, which changes only slightly with temperature. Thus, the technology of fluid inertial dampers became widespread within the armies and navies of most countries in the 1900 – 1945 period.
During the World War II, the emergence of radar and similar electronic systems required the development of specialized shock isolation techniques. During the Cold War period, the guided missile became the weapon of choice for the military, and the fluid inertial damper was again turned to by the military as the most cost effective way of protecting missiles against both conventional and nuclear weapon detonation. In these cases, transient shock from a miss near weapons detonation can contain free field velocities of 3 to 12 m/s, displacements of up to 2000 mm, and accelerations up to 1000 times gravity. For that reason, extremely high damping forces were needed to attenuate these transient pulses on large structures, and fluid inertial dampers became a preferred solution to these problems [Taylor, 1996].
With the end of the Cold War in the late 80`s, much of this fully developed defence technology became available for civilian applications. In this context, demonstration of the benefits of damping technology on structures could take place immediately, using existing dampers and the seismic test facilities available at U.S. university research centres. In this sense, application of fluid viscous dampers as part of seismic energy dissipation systems was experimentally and analytically studied, being validated by extensive testing on onesixth to onehalf scale building and bridge models in the period 1990 – 1993 at the Multidisciplinary Centre for Earthquake Engineering Research (MCEER), located on the campus of the State University of New York at Buffalo in USA. Thus, implementation of fluid viscous damping technology began relatively swiftly, with wind protection usage beginning in 1993, and seismic protection usage beginning in 1995 [Taylor and Duflot, 2002].
Fluid viscous dampers operate on the principle of fluid flow through orifices. A stainless steel piston travels through chambers that are filled with silicone oil. The silicone oil is inert, non flammable, non toxic and stable for extremely long periods of time. The pressure difference between the two chambers cause silicone oil to flow through an orifice in the piston head and seismic energy is transformed into heat, which dissipates into the atmosphere. This associated temperature increase can be significant, particularly when the damper is subjected to longduration or largeamplitude motions [Makris 1998; Makris et al, 1998]. Mechanisms are available to compensate for the temperature rise such that the influence on the damper behaviour is relatively minor [Soong and Dargush, 1997]. However, the increase in temperature may be of concern due to the potential for heatinduced damage to the damper seals. In this case, the temperature rise can be reduced by reducing the pressure differential across the piston head (e.g., by employing a damper with a larger piston head) [Makris et al, 1998]. Interestingly, although the damper is called a fluid viscous damper, the fluid typically has a relatively low viscosity (e.g., silicone oil with a kinematic viscosity on the order of 0.001 m^{2} /s at 20°C). The term fluid viscous damper is associated with the macroscopic behaviour of the damper which is essentially the same as that of an ideal linear or nonlinear viscous dashpot (i.e., the resisting force is directly related to the velocity). Generally, the fluid damper includes a doubleended piston rod (i.e., the piston rod projects outward from both sides of the piston head and exits the damper at both ends of the main cylinder). Such configurations are useful for minimizing the development of restoring forces (stiffness) due to fluid compression [Symans et al, 2008]. The force/velocity relationship for this kind of damper can be characterized as F = C.V^{α} where F is the output force, V the relative velocity across the damper; C is the damping coefficient and α is a constant exponent which is usually a value between 0.1 and 1.0 for earthquake protection, although at the present time some manufactures begin to apply dampers with very low damping coefficients, typically in the order of 0.02. Fluid viscous dampers can operate over temperature fluctuations ranging from –40°C to +70°C, and they have the unique ability to simultaneously reduce both stress and deflection within a structure subjected to a transient. This is because a fluid viscous damper varies its force only with velocity, which provides a response that is inherently outofphase with stresses due to flexing of the structure [Taylor and Duflot, 2002].
Fluid velocity is very high in the piston head so the upstream pressure energy converts almost entirely to kinetic energy. When the fluid subsequently expands into the full volume on the other side of the piston head it slows down and loses its kinetic energy into turbulence. There is very little pressure on the downstream side of the piston head compared with the full pressure on the upstream side of the piston head. This difference in pressures produces a large force that resists the motion of the damper. Viscous dampers, when correctly designed and fabricated, have zero leakage and require no accumulator or external liquid storage device to keep them full of fluid. They have nearly perfect sealing. In a correctly designed and fabricated viscous damper there is nothing to wear out or deteriorate over time so there is no practical limit on expected life. Warranty periods of 35 years are common [Lee and Taylor, 2001]. Fig. 2.2 shows a general view of a fluid viscous damper, and Fig. 2.3 shows fluid viscous dampers for a highspeed railway bridge in Spain.
Fig. 2.4 exposes a schematic of a typical fluid viscous damper showing its elements, which are described next.
The cylinder contains the working fluid and must withstand the pressure loading when the damper operates. Cylinders are usually made from seamless steel tubing and are sometimes machined from steel bars. Proof pressure is generally 1  5 times expected internal pressure for the maximum credible seismic event.
Structural applications require a fluid that is fireresistant, nontoxic, thermally stable and that will not degrade with age. Under current OSHA (Occupational Safety & Health) guidelines this means a flash point of at least 200°F. Silicone fluid is often used as it has a flash point over 650°F and is cosmetically inert, completely nontoxic and one of the most thermally stable fluids available.
The seal must provide a service life of at least 35 years without replacement. As dampers often sit for long periods without use, the seal must not exhibit longterm sticking or allow fluid seepage. The dynamic seal is made from highstrength structural polymer to eliminate sticking or compression set during long periods of inactivity. Acceptable materials include Teflon^{®}, stabilized nylon and members of the acetyl resin family. Dynamic seals made from structural polymers do not age, degrade or cold flow over time.
The piston head attaches to the piston rod and effectively divides the cylinder into two separate pressure chambers. This space between the outside diameter of the piston and in the inside diameter of the cylinder forms the orifice. Very often the piston head is made from a different material than the cylinder to provide thermal compensation. As the temperature rises the annulus between the piston head and the cylinder shrinks to compensate for thinning of the fluid.
The damper shown in Fig. 2.4 uses an internal accumulator to make up for the change in volume as the rod strokes. This accumulator is either a block of closedcell plastic foam or a movable pressurized piston, or a rubber bladder. The accumulator also accommodates thermal expansion of the silicone fluid.
Viscous dampers add energy dissipation to a structure, which significantly reduces response to earthquakes, blasts, wind gusts and other shock and vibration inputs. A value of 30% of the critical damping ratio is a practical upper limit for combined viscous and structural damping. Around 25% of this is viscous damping and the remaining 5% is structural damping [Lee and Taylor, 2001]. This provides a 50% reduction in structural response compared with the same structure without viscous dampers. Note that the addition of viscous dampers does not change the period of the structure. This is because viscous damping is 90 degrees out of phase with the structural forces. Fig. 2.5 shows a typical plot of base shear against interstorey drift, taken from a laboratory test, according to Lee and Taylor (2001).
Fig. 2.5 Typical Plot of Base Shear Against Interstorey Drift [Lee and Taylor, 2001]
Fig. 2.6 Base Shear Against Interstorey Drift with Added Dampers [Lee and Taylor, 2001]
Note that the hysteresis loop is very flat and thin as there is only 5% damping. Figure 2.6 shows a plot of the same structure with the same input only this time with added viscous damping. Note that interstorey drift is 50% less and that the hysteresis curve is much fuller. In this case, 20% of added linear damping to the structure increased its earthquake resistance compared to that of the same structure without added damping. The area inside the hysteresis loop is the same as in Fig. 2.5. It is theoretically possible to provide enough viscous damping to completely prevent plastic hinging. This provides a totally linear structure. Economically, it is best to retain some plastic hinging as this results in the least overall cost. Viscous dampers still limit interstorey drift sufficiently to provide immediate occupancy after a worstcase event. They also limit and control the degree of plastic hinging and greatly reduce base shear and interstorey shear [Lee and Taylor, 2001]. Only as comparative purpose Table 2.1 shows equivalent damping coefficients for different structures and components. It is clear that an enormous amount of energy can be dissipated with the implementation of seismic dampers, reaching the largest values of dissipated energy. Of course, with those quantities, structural damping in the case of cablestayed bridges may represent no more than 3% of the additional damping provided by the dampers, that is to say, a negligible amount.
Table 2.1 Comparison of Equivalent Damping Coefficients ξ of Different Structures and Components [Courtesy of Maurer Sönhe, Germany]

In terms of the efficiency, the damping coefficient ξ relates to the efficiency η according to:
This ends up in a maximum efficiency η = 96% for fluid viscous dampers.
As a summary, the overall characteristics of fluid viscous dampers include:

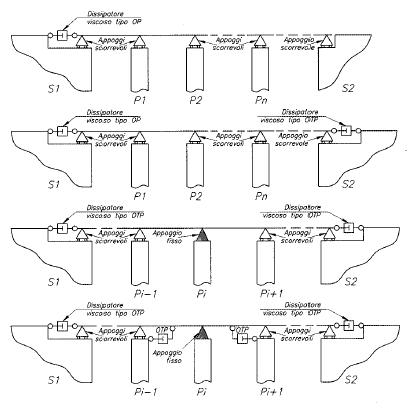

Decks for viaducts and longspan bridges require adequate expansion joints for large displacements under service conditions to absorb the effects of creep and thermal expansion. A common structural layout used in Europe, consists of continuous deck supported by POT devices [Priestley et al, 1996]. By this way, the idea of employing devices with an insignificant response under longperiod displacements and at the same time, capable of dissipating much induced seismic energy, was developed.
Some manufacturers differentiate the type of damper according to the motion of the device in the presence of slow displacements. In this case, as for example when thermal expansion occurs, in the OTP type the fluid flows from one chamber to the other with minimum opposition (normally smaller than 10% of the maximum force), while in the OP type such a flow is obstructed, so that during normal service the behaviour is substantially rigid [see the scheme of the typical application of viscous dampers on bridges in Fig. 2.7].
Application of fluid viscous dampers to bridges have been used since middle 90`s. Although these devices may be applied to any kind of structures, their application is easier and more effective in bridges. One of the problems in the use of such devices is that the analysis of the dynamic behaviour becomes more elaborated and difficult than the analysis of a bridge with its seismic resistance based on the ductile capacity of the piers [Virtuoso et al, 2000]. Figs. 2.8 and 2.9 show some examples of application of fluid viscous dampers to bridges.
An important aspect to consider is that, if there is some available stiffness and resistance in the connection between the deck and the piers/towers or abutments, it is possible to obtain optimised solutions without inducing significant forces in the structure. That stiffness as the advantage of guaranteeing recentering capability after an earthquake can be used to improve the structure behaviour under other actions [Virtuoso et al, 2000].
An earthquake is an energy phenomenon and therefore this energy character should be considered to achieve the best possible seismic protection for the structure. Without seismic protection system, the seismic energy is entering the structure very concentrated at the fixed axis. By means of shock transmission units the entering energy is distributed to several spots within the structure. In this case the energy input into the structure is still in same magnitude like without those devices, but now the energy is spread over the entire structure in more portions. By implementing additional energy dissipation capability, less energy is entering the structure, with the consequent response mitigation.
The principles of physics that govern the effects of dissipation on the control of dynamic phenomena were studied more than two centuries ago [D`Alembert, Traité de Dynamique, 1743]. Nonetheless, their practical application has come about much later and within a much different timeframe in several sectors of engineering. As was previously exposed, the sector that was the first to adopt such damping technology was the military [France, 1897], followed by the automobile industry. In 1956 Housner already suggested an energybased design of structures. Kato and Akiyama (1975) and Uang and Bertero (1990) made a valuable contribution to the development of the aspects of an energybased approach, which presently meets with great concensus.
The dynamic equation of a singledegreeoffreedom structure with mass m_{s} damping coefficient c_{s}, stiffness k_{s} and control force u, subject to ground acceleration is:
where , and are the displacement, velocity and acceleration responses respectively. The involved parameters are clearly explained in Fig. 2.10, which shows a simplified scheme for a singledegreeoffreedom system. Of course, each term in Eq. 2.2 is a force.
Fig. 2.10 Complex Bridge Structure Explained with a Simplified Single Oscillation Mass
Integrating Eq. 2.2 with respect to x:
where each term is now an energy component. Thus, we can define:
An energy balance equation can be proposed in terms of the above defined:
where:
E_{k}: Kinetic energy
E_{v}: Dissipated energy by inherent damping
E_{e}: Elastic strain energy
E_{h}: Dissipated energy by additional damping devices
E_{i}: Induced energy in the structure.
The concept of energy approach (Fig. 2.11) easily explains the energy terms involved in Eq. 2.8. The amount of structural stored energy (E_{s}) has to be as low as possible to avoid damages. Therefore the value of the dissipated energy (E_{d}) must be great. In the term E_{h} energy dissipated by hysteretic or plastic deformation may be included; however this part must be kept low, as this way of energy dissipation causes structural yielding and cracks. For that reason, the drastic increase of the value of the energy of additional damping devices is the final opportunity to control the energy balance of the structure.
Fig. 2.11 Concept of Energy Approach Considering the Energy Exchange Between Structure and Environment
: Stored energy within structure
: Dissipated energy within structure
Thus:
The control force u by nonlinear viscous dampers with damping coefficient c_{d} is expressed as
In Eq. 2.10, the exponent N controls the damper nonlinearity and has typical values in the range of 0.10 to 1.0 for seismic applications. For the special case of N = 1, Eq. 2.10 represents the force applied by linear viscous dampers. In the case of N = 0, Eq. 2.10 changes to a friction damper as follows:
Linear damping is easy to analyze and can be handled by most software packages. Also, linear damping is unlike to excite higher modes in a structure. Another advantage of linear damping is that there is very little interaction between damping forces and structural forces. Structural forces peak when damping forces are zero as well as damping forces peak when structural forces are zero. Between these points there is a gradual transfer of force [Lee and Taylor, 2001].
Applying the force – velocity relationship expressed in Eq. 2.10 to Eq. 2.6 results:
which represents the dissipated energy for a nonlinear fluid viscous damper. The hysteretic behaviour of fluid viscous dampers can be plotted and shown in Fig. 2.13.
In the case of a linear damper, the hysteresis loop is a pure ellipse. In this case it is clear that the dissipated energy is lower than the case of a nonlinear damper for similar conditions. As example, Fig. 2.14 shows typical Force – Displacement hysteretic curves of a nonlinear viscous damper according to prototype tests carried out by FIP Industriale Laboratories (Italy).
In general terms, for viscous dampers, c_{d} does not affect the shape of the hysteretic force – displacement cycle; however, an increase of the value of this parameter increases the energy dissipation capacity and the maximum force in the device [Guerreiro, 2006]. In this sense, the work carried out by Virtuoso et al (2000) studies the modelling of the seismic behaviour of bridges with added viscous dampers, analyzing the effects of the constant c_{d} (here called C). To allow an analysis on the influence of that parameter on the structural response, values of the constant C between 0.10 and 10 were considered, since those values, together with the values considered for the parameter N (here called α), will cover forces corresponding to seismic coefficient varying from 1% to 50% of the weight. In this study a set of five artificial accelerograms compatible with the response spectrum defined in Eurocode 8 – Part 2 [CEN, 1998b] with a peak ground acceleration of 0.30g, type B soil and 30 sec total duration of the series, were used. Two extreme cases were considered: a solution without elastic stiffness (deck totally free over the piers) and a solution with elastic stiffness (low stiffness elastic connection between the piers and the deck). Also, in this research the configurations of the force – velocity relation curves were presented for different values of α, corresponding to the linear branch, which, were defined by the origin and the point corresponding to 10% of the maximum velocity and force corresponding to the defined seismic action and obtained without the consideration of the linear branch. Figs. 2.15 and 2.16 show maximum forces and displacements in the viscous damper without and with elastic stiffness respectively. They show that solution involving a higher displacement control always lead to higher force levels in the device. It is also possible to observe that the more efficient solutions, with better displacement control for the same force level, generally corresponds to low α values. Likewise, for device solutions with low values of the constant C, the elastic stiffness of the structure has an important contribution on the displacement control. It is important to notice that the contribution of the elastic force is out of phase with the one transmitted by the devices, what means that, in a solution of this type there is always a force restraining the movement of the deck. The problem is that the forces transmitted to the structure must be controlled to limit the contribution of the piers to values lower than their elastic limit.
Fig. 2.17 presents the forces in the structure corresponding to the device solutions considered in the study and whose results, in terms of devices response, were represented in Fig. 2.16. The results show that, for low C values the forces transmitted to the structure are important and higher than the corresponding forces in the devices. For C values higher than 1 a significant reduction on the displacements is verified. For the device solutions in this range there is no influence of the elastic stiffness in the device forces. From these results, it can be concluded that the best solutions corresponds to devices with C values higher than 1.
The contribution of the elastic spring is irrelevant for the forces in the device and conducts to some negligible reduction in the displacements when C > 1. From these results, consideration of the elastic stiffness of the structure is not important for the displacement control of the deck.
The damping exponent N represents the essence of the nonlinear behaviour of fluid viscous dampers. On the contrary of the damping coefficient c_{d}, this parameter does not affect the size of the hysteretic forcedisplacement cycle and for that reason incidence of this parameter on the seismic response is not decisive as occurs with the damping coefficient, aspect enlarged in 2.3.2.1. Changes in the Nexponent imply changes in the shape of the hysteretic forcedisplacement cycle, as was explained in Fig. 2.13. Low damping exponents tend to expose rectangular forcedisplacement hysteresis, as well as linear behaviour implies more elliptical forcedisplacement hysteresis cycles. The more practical incidence of the Nexponent relates with the damper forces, depending on the relative velocities.
If we consider the force at the dampers F as a function of the exponent N, we can write
If c_{d} is constant, F is maximum if is maximum.
if and only if which implies a constant force F = c_{d}
Analyzing f in its domain:
Then, f is maximum if is little, which implies .
This analytical approach shows that the critical point is . Being the damper velocities larger than 1, the maximum damper forces are obtained for high values of the damping exponent, on the contrary of the case where the damper velocities are lower than 1, in which the maximum damper forces are obtained when N is close to zero, that is to say, for nonlinear dampers. Graphically, the abovementioned can be clearly exposed in Fig. 2.18. Fig. 2.18 exposes variations of the dampers forces with the velocity exponent N for some common damper velocities. From these results, it is necessary to be cautious if velocity pulses are considered in the presence of linear dampers or dampers with N > 1. Likewise, similar considerations are necessary to take into account if nonlinear dampers are considered in the presence of low velocities.
The consideration of the damper parameters must be taken carefully, because sometimes interpretation of the results could be confused. In this sense, tables 2.2 and 2.3 show similar conditions of the damper parameters. Table 2.2 exposes the forces for a damper with c_{d} = 2015 kN/(mm/sec)^{N}, and design velocity of 300 mm/sec for three different values of N. The obtained forces increase when N increases. On the right, in Table 2.3, the same situation is represented; however, the units have been changed. Because of the units for the damping coefficient c_{d} depend on the value of N it is necessary to be cautious with the change of units. This transformation implies a change of the values for the damping coefficients. Now, c_{d} increases as a result of this change, which implies that the damper forces obviously increase. Notice that in Table 2.2 damper velocities are higher than 1.0, which implies that for a constant value of c_{d} damper forces increase as the damper exponent increases, as was previously explained. In Table 2.3, damper forces increase because the damping coefficient increases, regardless the damper exponent increases and the damper velocity is lowers than 1.0.

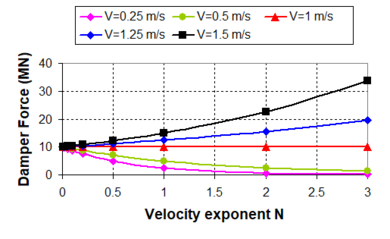

Table 2.2 Damper Forces for Three Different Damper Exponents and c_{d} in kN/(mm/sec)^{N}

Table 2.3 Damper Forces for Three Different Damper Exponents and c_{d} in kN/(m/sec)^{N}

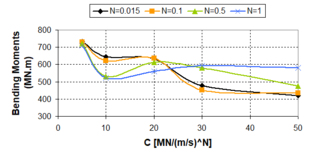

A similar situation is exposed in tables 2.4 and 2.5. Table 2.4 shows the damper forces considering the same damper exponents, a constant value of 2235 kN/(m/sec)^{N} for c_{d}, and 0.3 m/sec for the damper velocity. In this case, the damper forces decrease as the damper exponent increases. This situation is in agreement with results shown in Fig. 2.18 because now the damper velocity is lower than 1. In Table 2.5, the same situation is represented, but now the units have been changed to [kN/(mm/sec)^{N}] for c_{d}. This change implies that the values of the damping coefficient decrease, which implies that the damper forces decrease regardless the damper velocity is higher than 1. Results of this analysis show that influence of the damper exponent N on the damper forces is in relation with relative velocities of the dampers, being one the critical value. It is not possible to formulate valid conclusions only considering the damper exponent and the damper velocity, as some manufacturers propose. It is necessary to take into account the damping coefficient c_{d} and its units, which depends in some sense on the damping exponent.
Table 2.4 Damper Forces for Three Different Damper Exponents and c_{d} in kN/(m/sec)^{N}

Table 2.5 Damper Forces for Three Different Damper Exponents and c_{d} in kN/(mm/sec)^{N}

Commonly, use of fluid viscous dampers limits the damping exponent N between 0.1 and 1.0 for seismic applications. Recently, some manufacturers propose the application of extralow damping exponents, using values in the order of 0.02 or lower. As was previously explained, using damping exponents close to zero implies an almost constant response force for the damper, aspect that can be useful for situations involving high damper velocities or velocity pulses, as usually happens in the presence of nearfault ground motions. Fig. 2.19 shows the Damper Force – Velocity relation for an extralow damping exponent damper. In this case, 0.015 damping exponent was selected according to practical applications of some manufacturers. For damper velocities higher than 0.71.0 m/sec, the damper responses with an almost constant force, well defined to a certain limit. This special characteristic can be very positive to control peak responses when high velocities are demanding the damper, however, this selection cannot be an efficient solution for earthquakes inducing lowtomoderate velocities.
Numerous experimental and analytical investigations have focused on linear fluid viscous dampers, because they can be modelled simply by a linear dashpot. While being effective in reducing seismic demands on the structure, linear viscous dampers may develop excessive damper forces in applications where large structural velocities can occur, as for example in long period structures subjected to intense ground shaking, especially in the nearfault region. Recently, some researchers and earthquake engineering professionals have begun to focus on fluid viscous dampers exhibiting nonlinear ForceVelocity relationship because of their ability to limit the peak damper force at large structural velocities while still providing sufficient supplemental damping [Lin and Chopra, 2002; Symans et al, 2008].
In the last years, some analytical and experimental investigations have been conducted regarding the dynamic response of fluid viscous dampers, and especially, with nonlinear dampers. In order to verify the behaviour and constitutive laws, prototype viscous dampers have been tested at National Center for Earthquake Engineering Research in Buffalo, USA [Seleemah and Constantinou, 1997]; University of Florence [Terenzi, 1999] and University of California at Berkeley [Infanti et al, 2003].
Although the mean response spectra for deformation, relative velocity, and total acceleration are affected very little by damper nonlinearity, the influence increases at longer periods and for smaller values of the nonlinearity parameter (here called α). Fig. 2.20 shows as example, the mean response spectra for deformation, relative velocity and total acceleration for elastic singledegreeoffreedom systems and considering 20 ground motions. If the ratio of responses r for α=0.35 and 1 are plotted for three response quantities, as shown in Fig. 2.21, clearly, then damper nonlinearity has essentially no influence on system response in the velocitysensitive spectral region (0.6 ≤ T_{n }≤ 3 sec) and small influence in the displacement (T_{n} ≥ 3 sec) and acceleration (T_{n }≤ 0.6 sec) sensitive regions. These aspects has the useful implication for design applications that, for a given supplemental damping ratio ξ_{d}, the response of systems with nonlinear fluid viscous dampers can be estimated to a sufficient degree of accuracy by analysing the corresponding linear viscous system (α = 1). Likewise, damper nonlinearity has very little influence on the deformation, velocity and acceleration time histories of the system (Fig. 2.22), but affects the damper force significantly, primarily near the response peaks, as was previously explained.
Regarding the influence of supplemental damping, as expected, it reduces the structural response, with greater reduction achieved by the addition of more damping (Fig. 2.20). As T_{n}→0, supplemental damping does not affect response because the structure moves rigidly with the ground. And as T_{n}→∞, supplemental damping again does not affect the response because the structural mass stays still while the ground underneath moves. The response reduction is significant over the range of periods considered. Moreover, the reduction in responses is essentially unaffected by damper nonlinearity in the velocitysensitive region and only weakly dependent in the acceleration and displacement sensitive regions (Fig. 2.21).
It is important to say that for a given force and displacement amplitude, the energy dissipated per cycle for a nonlinear fluid damper is larger, by a factor λ/π (where λ is a parameter whose value depends exclusively on the velocity exponent), than that for the linear case and increases monotonically with reducing velocity exponent (up to a theoretical limit of 4/π=1.27 which corresponds to a velocity exponent of zero); however, the additional energy dissipation afforded by the nonlinear dampers is minimal. For a given frequency of motion, ω, and displacement amplitude, x_{0}, to dissipate the same amount of energy per cycle, the damping coefficient of the nonlinear damper, c_{dNL}, must be larger than that of the linear damper, c_{dL}, as given by
As an example, for a frequency of 1.0 Hz and displacement amplitude of 5 cm, the damping coefficient of a nonlinear damper with velocity exponent of 0.5 must be approximately three times larger than that of a linear damper to dissipate the same amount of energy per cycle. Conversely, if nonlinear dampers are used to limit the damper force, a reduction in energy dissipation capacity as compared to the case of linear dampers would be accepted [Symans et al, 2008].
A last aspect to consider regarding the earthquake response of nonlinear fluid viscous dampers, is that the earthquakeinduced force in a nonlinear viscous damper can be estimated from the damper force in a corresponding system with linear viscous damping, its peak deformation, and peak relative velocity; however, the relative velocity should not be approximated by the pseudovelocity as this approximation introduces a large error in the damper force. In fact, if spectral pseudovelocities are used, they are based on design displacements (S_{v} = ω_{0}S_{d}). It is well known that effectiveness of nonlinear viscous dampers is highly dependent on operating velocities, being necessary to have reliable estimates of the true velocity in the device [Pekcan et al, 1999; Lin and Chopra, 2002].
The energy dissipation capacity of a fluid viscous damper can be characterized by the supplemental damping ratio ξ_{d} and its nonlinearity by the parameter N; and it is found that the structural response is most effectively investigated in terms of these parameters because they are dimensionless and independent, and the structural response varies linearly with the excitation intensity [Lin and Chopra, 2002]. In this sense, a system with nonlinear dampers is usually replaced by an equivalent linear system, with its properties determined using different methods: equalling the energy dissipated in the two systems [Jacobsen, 1930; Fabunmi, 1985]; equalling power consumption in the two systems [Pekcan et al, 1999]; replacing the nonlinear viscous damping by an array of frequency and amplitudedependent linear viscous model [Rakheja and Sankar, 1986]; random vibration theory [Caughey, 1963; Roberts, 1976], and more recently, applying closedform formulas based on probabilistic concept to obtain fundamental modal damping ratio without carrying out structural analysis [Lee et al, 2004].
Thus, equalling the energy dissipated in a vibration cycle of the nonlinear system to that of equivalent viscous system [Pekcan et al, 1999] and considering equation 2.10:
Soong and Constantinou (1994) have shown that the work done (dissipated energy) in one cycle of sinusoidal loading can be written as
that is basically the same equation as 2.6. Here, T_{0} = 2π/ω_{0}, where ω_{0} is the circular frequency of the system and .
Equation 2.14 can be integrated to give
where Г( ) is the gamma function.
The equivalent (added) damping is calculated by equating equation 2.15 and the energy dissipated in equivalent viscous damping:
in which strain energy E_{s} = kx_{0}^{2}/2. Solving Eq. 2.16 for equivalent damping ratio:
where M is the mass of the system, and x_{0} the amplitude of harmonic motion at the undamped natural frequency ω_{0}.
Of course, the additional damping that the passive system introduces to the structure can be obtained by its energy dissipation capacity in each hysteretic cycle. This dissipated energy for each cycle, can be obtained calculating the area of the cycle in the force – displacement relationship of the viscous damper. Thus, for a selected cycle, it is possible to assess the equivalent damping ratio as follows:
where u_{max} and x_{max} are the maximum force and maximum displacement at the damper respectively.
Pekcan et al (1999), proposed a simple method for making the transformation from the nonlinear damper behaviour to equivalent viscous damping. They explain that for velocitydependent systems such as viscous dampers, consideration of the rate of energy dissipation – that is power (rather than energy) – becomes more important in seeking the equivalent linear properties for these systems. The proposed equivalent damping is
Given the customary definition of damping ratio (ξ) obtained from c = 2ξω_{0}M, equation 2.19 can be expressed as follows:
This formulation, also called power equivalent approach, predicts higher damping values compared with energy based method (Eq. 2.17). This difference is greater for low values of N, and for that reason it is necessary to be cautious using any of the above formulations for small N powers (N<0.1), since the mechanism of the devices changes from viscous (velocity dependent) to Coulomb friction type (when N tends to zero).
Nearfield earthquakes are characterized by short duration pulses of long period with large peak ground velocities and accelerations. It has been observed from recent earthquake records that motions in the faultnormal direction contain destructive longperiod pulses with high peak ground velocities, aspect that negatively affects longperiod structures such as cablestayed bridges. A lot of approaches to model these pulses have been recently proposed [Makris, 1997; He, 2003; Mavroeidis et al, 2004].
Linear viscous dampers have been found to perform well during mild to moderate earthquakes. However, the force demand on linear dampers during pulsetype excitations may be excessive, leading to device capacity saturation and larger force demands on structural components. Nonlinear viscous dampers may be more suitable in such situations because of their inherent force saturation capability at high velocities.
The recent investigation by Xu et al (2007) on the performance of passive energy dissipation systems during nearfield ground motions, shows that both linear and nonlinear viscous dampers with 25% supplemental damping ratio are effective in achieving more than 40% displacement reduction when 3/5 < T_{n}/T_{p} < 5/3, T_{n} and T_{p} being structural and excitation periods, respectively. Nonlinear viscous dampers can yield additional 10% reductions in displacement and input energy over those by linear dampers when T_{p} > 4/5T_{n} and they achieve less displacement reduction when T_{p} < 4/5T_{n}. Likewise, performance of viscous dampers depends on their absorbability of instantaneous input energy. If a damper cannot dissipate the input energy instantaneously, even through it may have an excellent ability to dissipate the total input energy, the structure may still undergo damage due to instantaneous accumulation of input energy during an earthquake.
Although the damper nonlinearity does not significantly influence the displacement response (As was demonstrated in the research by Lin and Chopra, 2002), in general terms nonlinear viscous dampers are more advantageous than linear dampers in reducing peak structural displacements and peak input energies when a structure is subjected to pulsetype excitation with pulse period longer than the natural period of the structure.
The first step in the analysis is to find out how added damping affects the structure. This is generally done with a simple stick model with one node for each storey. Adding global damping to the stick model provides a good indication of how damping elements can benefit the structure. The analyst will then construct a simple twodimensional model of the structure. In this model the dampers are entered as discrete elements. At this point there are a number of variables to play with: force capacity of the dampers, location and number of dampers, damper coefficient and damper exponent. The analyst has the task of finding the best solution. This is generally a trialanderror process but there are some general guidelines. It is always best to minimize the number of dampers and the number of bays that use dampers. Also, it is known from experience that approximately 20%–30% of critical damping is a desirable range, and that 5% of this can be structural, leaving 15%–25% for viscous damping. So the first objective of the analyst is to determine the smallest possible number of dampers to provide approximately 20% critical damping without overloading either the beams or the columns. Also, it is always best to start with linear dampers and then find out what happens with nonlinear dampers after the locations, number and characteristics of the dampers have been fairly well determined [Lee and Taylor, 2001].
Note that analysis of a structure with dampers always involves a stepbystep timehistory simulation. Sometimes a timehistory is not available for a particular location but a shock spectrum is. In this case, a timehistory can be arrived at by going through a library of time histories, comparing their shock spectra with the specified shock spectrum at the site and selecting the one that fits best. Likewise, with the current computer capability, a detailed nonlinear time history analysis to satisfy individual requirements can be applied. Some advantages of a nonlinear time history analysis include: more exact determination of structural displacements, more accurate assessment of the seismic response forces acting onto the device and structure, exact evaluation of real structural safety factors and possible economical benefits due to savings in design.
Finally, it can be important to say that in the present days exist good and powerful computing tools that permit to solve nonlinear structures equipped with linear/nonlinear energy dissipation devices such as fluid viscous dampers. Commercial computing codes such as ANSYS [Ansys Inc, 2005] or SAP2000 [Computers & Structures, 2007] include the option of applying nonlinear energy dissipation devices. However, modelling of some damping elements (e.g. dampers with temperaturedependent or frequencydependent) can be more challenging or, in some cases, not possible with a given program. When the modelling of such behaviour is not possible, the expected response may be bounded by analyzing the structure over a range of behaviours. Fortunately, for majority of fluid viscous dampers actually manufactured, properties are largely independent with respect to frequency and temperature [Symans et al, 2008].
The peak force f_{D0}(N) in the nonlinear fluid viscous damper with known nonlinear parameter N can be expressed as
where V = ω_{0}x_{0} is the spectral pseudovelocity for the SDF system; c_{1} is the damping coefficient of the linear system and β_{N }is a constant defined as
The nonlinear damper force can be computed from Eq. 2.21 if x_{0} and are known. They can be estimated as the peak values of deformation and relative velocity of the corresponding linear system. Equation 2.21 is almost exact in the velocitysensitive region of the spectrum, overestimates the damper force in the accelerationsensitive region (by at most 15%); and underestimates in the displacementsensitive region (by at most 7%). Moreover, the accuracy of Eq. 2.21 deteriorates slightly with the increase of the equivalent damping ξ_{d}. However, the actual velocity of the corresponding linear system required in Eq. 2.21 and to compute f_{D0 }(N=1) = c_{1} is not readily available, because the velocity spectrum is not plotted routinely. If the velocity is replaced by the pseudovelocity, Eq. 2.21 changes to
The resulting estimate of the damper force is not accurate, which increase with the system’s period, damper nonlinearity and supplemental damping ratio. Thus, velocity should not be approximated by the pseudovelocity [Lin and Chopra, 2002].
Another important point regarding the design of nonlinear fluid viscous dampers is how to select the properties c_{d} and N to satisfy a design requirement. As was previously explained, the structural deformation is essentially unaffected by the damper nonlinearity parameter N and it is essentially the same as that for the corresponding linear system. The total damping capacity that must be provided in the system to limit the deformation of a linear system to a design value can be determined directly from the design spectrum. Subtracting the inherent damping in the structure from the total damping required gives ξ_{d}, the necessary supplemental damping. Many different nonlinear fluid viscous dampers can be chosen to provide the required supplemental damping ratio ξ_{d}. Thus, for a selected value of N:
where M is the mass of the system and D is the allowable deformation.
Fig. 2.21 suggests that the selected damper defined by Eq. 2.24 should satisfy the design constraint reasonably well. Also, the structural deformation should be very close to the allowable value in the velocitysensitive region, less than the allowable value in the acceleration–sensitive spectral region, but exceed slightly the allowable value in the displacementsensitive spectral region [Lin and Chopra, 2002].

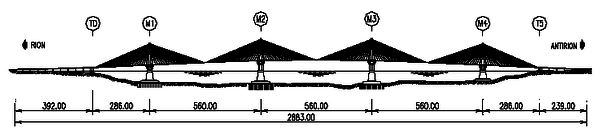

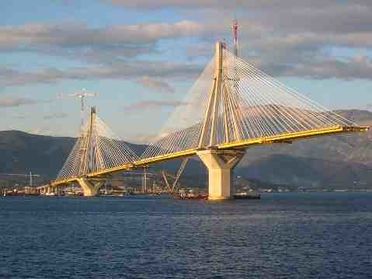

Amongst longspan cablestayed bridges that incorporate additional passive seismic protection, the recently inaugurated Rion – Antirion Bridge in the Gulf of Corinth, Greece, is one of the most interesting bridges located in a high seismicity zone generated by active local faults.
The structure is a concrete multispan doubleplane semiharp type cablestayed bridge, with a continuous floating deck, as can be appreciated in Fig. 2.23. The 2252 mlong bridge is divided into three spans of 560 m and two of 286 m (Fig. 2.24). A general description of the structure and the basic aspects regarding the design and construction can be found in the works of Combault et al (2000), Teyssandier (2002) and Teyssandier et al (2003).
The bridge was designed to resist seismic events of 0.48g – peak ground acceleration, and tectonic motion for two consecutive pylons up to 2 m at any direction. That was possible by using an energy dissipation system, connecting the deck with each pylon, which limited their motion during the occurrence of a strong earthquake, while it dissipated energy. The basic aspects of the seismic design of the bridge include a response design spectrum that corresponds to a 2000 years return period (Fig. 2.25) with a peak spectral acceleration equal to 1.20g.
For the dynamic analysis, a 3Dfinite element model was used for the whole structure, taking into consideration important aspects, such as [Combault et al, 2000]:

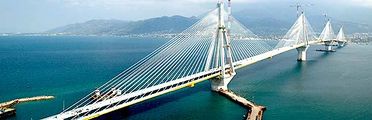

Fig. 2.26 shows the isolation system in the Antirion approach viaduct and Fig. 2.27 shows the fuse restraint general configuration.
Fig. 2.26 Isolation System in the Antirion Approach Viaduct [Infanti et al, 2004]
Fig. 2.27 Fuse Restraint [Infanti et al, 2003]
On each pylon, four viscous dampers of 3500 kN  reaction capacity each and damping constant C = 3000 kN/(m/s)^{0.15} were installed. The fuses consider a reaction capacity of 10500 kN. For the transition pylons, the same previous dampers were used, but in conjunction with structural fuses of 3400 kN  reaction capacity each.

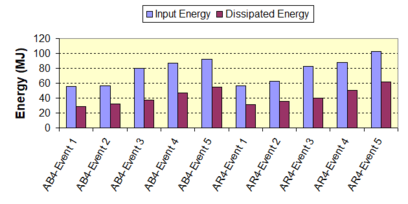

The seismic performance and the energy dissipation requirements were evaluated applying nonlinear time history analysis of a 3D model of the structure. However, the seismic design hypotheses and the real behaviour of the devices could be verified with a fullscale testing. Fluid Viscous Damper Prototype tests were performed at the laboratory of the University of California – San Diego (USA), and the Fuse Restraints were tested at the FIP Industriale Testing Laboratory (Italy). The fullscale testing of the seismic devices is explained by Infanti et al (2003, 2004). In their works, they show the methodology, implementation and results of the fullscale testing. Figs. 2.28 and 2.29 show the fullscale damper testing and a view of the Fuse Restraint Testing during fatigue test respectively.
Another interesting aspect included in the RionAntirion Bridge, is the addition of antiseismic deviators that work as dampers for the staycable vibration mitigation. Although hydraulic dampers are also used on cablestayed and suspended bridges to reduce rainwind vibration, they have a clear antiseismic purpose as was commented in the previous pages. Under certain circumstances, cable vibrations can modify the global seismic response of the bridge, introducing energy in higher order vibration modes. In this sense, Lecinq et al (2003) gives a description of the alternatives to increase the damping on staycables, and explain the antiseismic deviators employed in the RionAntirion Bridge. Fig. 2.30 shows a render view of an internal hydraulic damper used for cable vibration mitigation of cablestayed bridges. Fig. 2.31 shows an external damper for cable vibration used in the Normandy Bridge (France).
Fig. 2.28 FullScale Viscous Damper Prototype Testing [Infanti et al, 2004]
Fig. 2.29 Fuse Element During Fatigue Test [Infanti et al, 2004]
Fig. 2.30 Internal Hydraulic Damper [Lecinq et al, 2003]
Fig. 2.31 External Hydraulic Damper on Normandy Bridge [Lecinq et al, 2003]
In his MSc Thesis, Morgenthal (1999) carries out a detailed research on the seismic behaviour of the RionAntirion Bridge. He describes the bridge and exposes analytical modelling using finite elements to study the seismic control strategies incorporating different seismic protection devices, such as structural fuses, hydraulic dampers, seismic connectors and elastoplastic isolators. Finally, a parametric analysis of the seismic behaviour of different deck isolation devices is exposed.
Due to severe damage to bridges caused by the HyogokenNanbu earthquake in 1995, very high ground motion was required according to the bridge design specifications set in 1996 [Japan Road Association, 1996], in addition to the relatively frequent earthquake motion specifications by which old structures were designed and constructed. Hence, seismic safety of cablestayed bridges that were built prior to that specification was reviewed, and seismic retrofit was performed. In order to study the effectiveness of passive control to the seismic retrofit of a cablestayed bridge, a numerical analysis on a model of a cablestayed bridge was carried out. An existing cablestayed bridge with fixedhinge connections between deck and towers was modelled and its connections were replaced by isolation bearings and dampers. The isolation bearings were assumed to be of the elastic and hysteretic type. The dampers were linear and variable. The objective was to increase the damping ratio of the bridge by using passive control technologies. The chosen bridge model was the Tempozan Bridge, located in Osaka, Japan.
The Tempozan Bridge, built in 1988, is a threespan, continuous steel, cablestayed bridge situated on reclaimed land. It crosses the mouth of the Aji River in Osaka, Japan. The total length of the bridge is 640 m with a centre span of 350 m, while the lengths of side spans are 170 and 120 m (Figs. 2.32 and 2.33).
Fig. 2.32 Tempozan Bridge [from en.structurae.de]
Fig. 2.33 Side View of the Tempozan Bridge [Iemura and Pradono, 2003]
The main towers are Ashaped to improve the torsional rigidity. The cable in the superstructure is a twoplane, fan pattern, multicable system with nine stay cables in each plane. The bridge is supported on a 35mthick soft soil layer and the foundation consists of castinplace reinforced concrete piles of 2m diameter. The main deck is fixed at both towers to resist horizontal seismic forces. The bridge is relatively flexible with a predominant period of 3.7 sec. As to the seismic design in transverse direction, the main deck is fixed at the towers and the end piers [Iemura and Pradono, 2003].
If the deck is connected with very flexible bearings to the towers, the induced seismic forces will be kept to minimum values but the deck may have a large displacement response. On the other hand, a very stiff connection between the deck and the towers will result in lower deck displacement response but will attract much higher seismic forces during an earthquake, which is the case of the original bridge structure. Therefore, it is important to replace the existing fixedhinge bearings with special bearings or devices at the decktower connection to reduce seismic forces, absorb large seismic energy, and reduce the response amplitudes. Additionally, energyabsorbing devices may also be put between the deckends and piers. However, because doing so will attract a relatively large lateral force to the piers, this is avoided for this bridge at present.

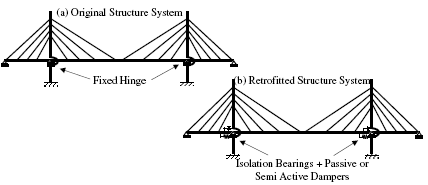

The original structure system has fixedhinge connections between the towers and the deck and roller connections between the deckends and piers, so that the deck longitudinal movement is constrained by the towers (Fig. 2.34a). For the retrofitted bridge, isolation bearings and dampers connect the deck to the towers (Fig. 2.34b). The cables were modelled by truss elements, the towers and deck were modelled by beam elements, and the isolation bearings were modelled by spring elements. The moment–curvature relationship of the members was calculated based on sectional properties of members and material used.
The first modes of the structures are interesting because these modes have the largest contribution to the longitudinal motion of the bridge. The first mode shape of the original structure is shown in Fig. 2.35a. The natural period (T) of this mode is 3.75 sec, which is close to the design value for the bridge (3.7 sec). This first mode has effective modal mass as a fraction of total mass of 84%. For the retrofitted structure, the stiffness of bearings was an important issue as large stiffness produces large bearing force and makes any energyabsorbing device work ineffectively in these connections (Fig. 2.35b). However, very flexible connections produce large displacement response. Therefore, based on a study on a simplified model of the bridge under seismic motions, a bearing stiffness that produced a retrofitted main period (T) 1.7 times the original main period was chosen. This bearing stiffness makes the energyabsorbing devices work well in reducing seismicinduced force and displacement. The main natural period of the retrofitted bridge (T′) then becomes 6.31 sec and the effective modal mass as a fraction of total mass is 92%. It is clear from the figures that smaller curvatures were found at the towers and the decks of the retrofitted structure than were found in those of the original structure.
The models were analyzed by a commercial finite element program [Prakash and Powell, 1993] which produces a piecewise dynamic time history using Newmark’s constant average acceleration (β= 1/4) integration of the equations of motion, governing the response of a nonlinear structure to a chosen base excitation. The input earthquake motions were artificial acceleration data used in Japan for design for soft soil condition, according to the 1996 Seismic Design Specifications of Highway Bridges [Japan Road Association, 1996]. The data are intended as Type I (interplate type). Table 2.6 shows the seismic response effects due to different kinds of bearings and dampers: fixedhinge bearings for the original bridge model, elastic bearings, elastic bearings plus viscous dampers, and hysteretic bearings for the retrofitted bridge model.
From the table, if only elastic bearings are used for seismic retrofit, the sectional forces can be reduced to about 40% of the original ones; however, the displacement response increases to 176% of the original one. By adding viscous dampers to the elastic bearings, the sectional forces can be reduced to about 25% of the original ones and the displacement response is reduced to 63% of the original one. So the viscous dampers plus bearings work to reduce the seismic response of the retrofitted bridge. The structural damping ratio is calculated as 35%. If hysteretic bearings are used for seismic retrofit, the sectional forces are reduced to about 29% of the original ones and the displacement response is reduced to 67% of the original one. Equivalent structural damping ratio is calculated as 13.1% by using pushover analysis to obtain a hysteretic loop at the main mode. The hysteretic bearings are modelled by bilinear model and the second stiffness of the hysteretic bearings is 0.03 times the initial stiffness and produces a first mode natural period of 6.31 sec.
Retrofitted Structure
Items  Original Structure  Elastic Bearings  Elastic Bearings + Viscous Dampers  Hysteretic Bearings
Deck displacement  2.37 m  4.17 m  1.50 m  1.58 m
Tower moment ^{a}  3100 MN.m  2000 MN.m  900 MN.m  900 MN.m
Tower axial force ^{a}  48000 kN  15000 kN  15000 kN  21000 kN
Cable force  24000 kN  3440 kN  4000 kN  5000 kN
Bearing force ^{b}  94000 kN  44000 kN  17000 kN  25000 kN
Deck moment  370 MN.m  95 MN.m  75 MN.m  95 MN.m
Deck axial force  56000 kN  21000 kN  11000 kN  15000 kN
Damping ratio  2%  2%  35%  13.1%
Natural period  3.75 s  6.31 s  6.73 s  3.86 and 6.31 s ^{c}
As a conclusion remark, it is clear that additional viscous damping to control the seismic response of cablestayed bridges is beneficial, reducing the seismic forces on members as well as their displacements by increasing the structural damping.
As a starting point, the seismic analysis without the incorporation of additional damping devices is presented. In order to compare the analysis results of the bridge models considering the incorporation of additional passive devices, this part is essential, and must be employed as basic configuration (reference structures).
The structural analysis begins with the nonlinear static analysis under service loading. This analysis is very important, because the assessment of some geometric nonlinearities involved with the overall change in the bridge geometry is based on the deformed shape of the structures under this static condition, being the starting point of the nonlinear time history analysis. In other words, these initial stresses and strains, including all nonlinearities available, are considered as starting point for the subsequent analyses.
Secondly, the assessment of the natural frequencies, modal shapes and damping properties in order to obtain a general dynamic characterization of the bridge models, is exposed. After that, and only as first approach, the seismic response of the cablestayed bridges applying the response spectrum method is obtained. This analysis gives an idea about the seismic response of the structures, of course, considering a linear behaviour. Because of the inherent nonlinear behaviour of the bridges, this analysis permits a comparison of the maximum values of the structural responses for a linear condition with regard to the nonlinear time history analysis, with the aim to recommend the best structural configurations for those bridges. With this analysis, the critical bridges to be analyzed applying the direct integration nonlinear time history analysis are selected. Because of the tremendous computational effort involved in the stepbystep analysis, two comparable structures are selected for the subsequent analyses.
The last point of this chapter corresponds to the seismic response of the selected bridges considering farfault and nearfault ground motions respectively. In this part, nonlinear time history analysis is conducted taking into account the geometric and material nonlinearities of the structures and the cable vibration effects. The input ground motions are acceleration time histories: five artificial threeorthogonal component acceleration records for farfault analysis and five real threeorthogonal component acceleration records for nearfault analysis. The seismic response of the bridges considers the displacement, velocity and acceleration time histories and the response of the deck, cables and towers. Because of the complex nature of the nonlinear time history analysis and according to the recommendations of Eurocode 8 Part 2 [CEN, 1998b], the average of the maximum response parameters in the assessment of the structural response for the record selection is considered.
The seismic response analysis of the concrete cablestayed bridges takes into consideration eight 3D symmetric bridge models for an adequate study. The chosen bridges were taken from the specialized literature, and specifically, from Walter’s Bridges [Walter, 1999] including the recommendations of Aparicio and Casas (2000) and Priestley at al (1996). The examination is based on a symmetric multistay reference cablestayed bridge, having two pylons, doubleplane cable layout and a main span length of about 200 m. Two stay cable layouts were selected: fantype and harptype. The semiharp pattern was rejected because this typology is an intermediate pattern, and both harp and fan patterns are enough for an adequate analysis. The main span lengths of the bridges are 217 m and 204.60 m, depending on the stay spacing. In this sense, longspan cablestayed bridges have experienced adequate performance during recent earthquake events, and it is expected that shorttomedium spans bridges show a worse seismic performance, mainly if nearsource effects are considered. That is the main reason to select the proposed span lengths. Moreover, the deck pattern considers two cases: a slabtype deck and a hollowbox type deck. The first one, due to its inherent flexibility, considers a stay spacing of 6.20 m. In the second case, 12.40 m  stay spacing is considered. The selected tower, for all cases, is a concrete frametype tower, with deck levels of 30 and 60 m from bottom. The height of the towers is 81 m and 111 m respectively. All these dimensions were taken from Walter’s recommendations.
The structural analysis considers the application of two codes: RAM Advanse [RAM International, 2003] and SAP2000 [Computers & Structures, 2007]. The first software is employed to generate the whole geometry of the bridges, the 3D meshing, the structural modelling and to carry out the static analysis. Also, this tool is employed to obtain the general dynamic characterization, such as natural frequencies and modal shapes, and the seismic analysis applying the design response spectrum method. This structural analysis package is very easy to use, with an excellent graphical interface. Some specific characteristics in relation to the structural modelling and analysis such as intuitive member selection, advanced automatic data generation, realistic rendering of 3D structures, rigid links, tension – only elements (cable elements), P – Δ effects, eccentricity due to offset columns and beams, automatic selfweigh calculation and dynamic analysis using response spectra are considered by this software. The second tool is employed for the nonlinear time history analysis of the critical bridges previously selected. To use this software, all available data is exported from RAM ADVANSE using [. DXF] extension files. This software can be used for the nonlinear seismic analysis of the bridges considering cable element modelling, incorporation of nonlinear fluid viscous dampers as link elements and the incorporation of all material and geometric nonlinearities available. Also, some specific bridge analysis tools are incorporated in the last version of this software.
Regarding the bridge modelling, the analysis is carried out considering the use of beam and cable elements for all the bridges. The deck is modelled using a single spine to avoid the use of shell elements, with the incorporation of transverse rigidlinks to simulate the anchor of cables. In fact, the use of beam elements can be more useful to assess forces on members, with clear graphical results and a considerable decrease of the computing time, especially when nonlinear time history analysis is applied. Moreover, the nonlinear analysis takes into consideration the geometric nonlinearities that are present in almost all cablestayed bridges. These nonlinearities due to high compressions in the deck and pylons are considered by the axial – bending interaction. Nonlinear behaviour of cables is considered by a multielement cable formulation (tensiononly elements), in order to take into account the spatial vibrations of them. Likewise, nonlinearities due to large displacements in the overall geometry are considered too. Spatial variability is not considered because of the main span length of the bridges (of about 200 m), that not recommends this effect according to Eurocode 8.
The longitudinal layout of the cable stays is one of the fundamental items in the design of cablestayed bridges. It influences, in fact, not only the structural performance of the bridge, but also the method of erection and the economics.
The main longitudinal layouts are the harp pattern, semiharp pattern and fan pattern. Whilst the harp pattern is not the best from the static or economic point of view, it is attractive because of its undeniable aesthetics advantages [Walter, 1999]. Also, this structural configuration can be very interesting from a dynamic point of view. The fan pattern brings all the stays together to the top of the pylons, being used in several recent structures. Some important advantages, according to Walter (1999) are: the total weight of the cables needed is substantially below that for a harp pattern; horizontal force introduced by the cable in the deck is less; longitudinal bending moments of the pylons remains moderate; movements of the deck due to changes in temperature can be absorbed by conventional expansion joints placed across the abutments, if the horizontal connection between the pylons and the deck is freed; flexibility of the structure is favourable where horizontal movements of the deck take place and increases the stability against seismic activity. However, the Achilles` heel of the fan pattern solution lies in the design and construction of the heads of the pylon, which are heavily stressed.
Regarding the stay spacing, it can be said that the use of wide spacing between the stays may still be imposed today. The multiplestay has numerous advantages: the large number of elastic supports leads to moderate longitudinal bending in the deck; the individual cables are smaller than in a structure with concentrated staying, which simplifies their installation and anchoring; replacement of stays is relatively simple, which is an important aspect to consider mainly when structural damage occurs after an important earthquake for example. Of course, when it is a matter of major bridges, with spans of some hundred metres, the multiplestay is the only possible solution. The maximum spacing of the stays depends of several parameters, in particular on the width and stiffness of the deck. In fact, as general rule, spacings between 6 m and 25 m are adopted for concrete decks [Walter, 1999].
For this study, eight cases were considered for the chosen typologies. Fig. 3.1 (a) shows the case of a fan pattern with stay spacing of 6.2 m, 30 m – deck level and 81 m – tower height. Fig. 3.1 (b) is similar to Fig. 3.1 (a), but it considers a tower height of 111 m and 60 m – deck level. Figs. 3.1 (c) and (d) are similar to Figs. 3.1 (a) and (b) respectively, but the stay spacing is 12.4 m. The main span length is 217 m for all cases, with 93 m span length at the approximation spans. The relationship (l/L) = 0.43 implies rigid pylons in this case. Moreover, the relationship (H/L) = 0.23 implies a good selection for the deck level and the towers in conjunction with the whole geometry, according to the design recommendations [Aparicio and Casas, 2000].

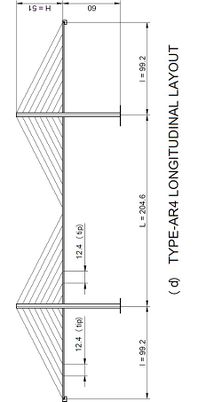

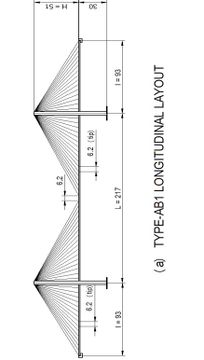

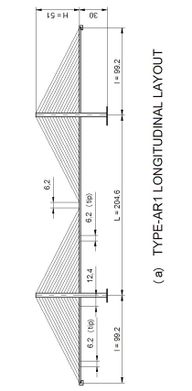

The geometry for the harp pattern can be seen in Figs. 3.2 (a), (b), (c) and (d). In the first case, 6.2 m stay spacing, 30 m – deck level and 81 m – tower height are considered. The second case is similar to the previous one, but with 60 m – deck level and 111 m – tower height. Figs. 3.2 (c) and (d) show similar conditions to the previous cases, with 12.4 m – stay spacing. In these cases the relationship (l/L) = 0.48 implies rigid pylons, and (H/L) = 0.25 is adequate according to the design recommendations [Aparicio and Casas, 2000]. The main span length for this configuration is 204.6 m.
The extreme spacings of 6.2 m and 12.4 m were selected according to the deck type. In fact, 6.2 m – stay spacing is adequate for flexible decks, as long as 12.4 m –stay spacing is a good length for rigid decks, as the hollowbox type.

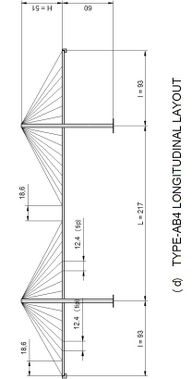

'Fig. 3.1 Longitudinal Layouts for Fan Pattern (dimensions in metres)

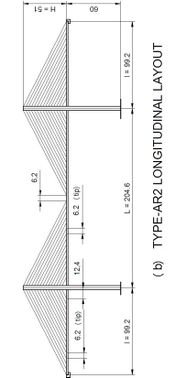

Fig. 3.2 Longitudinal Layouts for Harp Pattern (dimensions in metres)
In the transverse direction, the majority of existing structures consist of two planes of cables, generally on the edge of the structure. However, several bridges have been successfully built recently with only one central plane of cables. In principle, it is quite possible to envisage solutions using three or more planes, with the aim of reducing the crosssectional forces when the deck is very wide, but this possibility has been rarely exploited [Walter, 1999].
In the case of cablestayed bridges with vertical lateral suspension, the stays ensure a rigid connection between the pylons and deck. The vertical suspension does not give rise to any clearance problem above the deck. The width of the deck depends on the minimum distance required for the arms of the pylons. Of course, it is possible to reduce this one by placing these arms outside the deck, as occurs in this research (Fig. 3.3). On the other hand, the vertical lateral suspension seems to be an advantage from a seismic point of view, maybe due to its better stability, mainly when the earthquake occurs in the transverse direction. Although the stiffness and stability of the structure can be further improved by the use of Aframe pylons, the inclined suspension can give rise to certain clearance problems in the transverse direction. Also, the erection of Aframe pylons is generally more complicated than that of vertical pylons. Lateral suspension with this kind of pylons is particular suited for bridges of very large spans, where aerodynamic stability becomes allimportant [Walter, 1999]. As can be appreciated in Fig. 3.4, and taking into account the above mentioned, a frame type pylon with lateral suspension was selected. Its geometric simplicity and better comprehension of the structural and nonlinear seismic characteristics is one of the main reasons to consider this typology in this study. T
Two deck levels were chosen for this study: 30 m and 60 m. The first height was selected as general rule. The second one was selected to take into consideration free height below the deck for navigation. Of course, those deck levels are a different structural and seismic condition for the bridges. In fact, in the second case due to its inherent flexibility, natural periods will be larger than the first case. This can be a special condition for the supports, and for that reason, a fixed hinge support between the deck and the pylons is selected for the bridges.
(a) Atype Pylon
(b) Btype Pylon
The main dimensions for the towers were selected according to the recommendations of Walter [1999] and Aparicio and Casas (2000). Special seismic considerations according to the recommendations of Priestley et al (1996) were applied too, considering an elastic seismic behaviour of the structures according to the general guidelines of Eurocode 8 Part 2 [CEN, 1998b] for this special kind of bridges. For the Atype pylon, the critical mechanical slenderness is λ = 124.7, which is a reasonable value for the arms. The dimensions of the crossbeams are enough, and are in relation with the whole geometry of the structure. For the Btype pylon, the critical mechanical slenderness is λ = 128, so the geometric dimensions of the arms are enough to guarantee an adequate geometric stability. Likewise, dimensions of the crossbeams are adequate. Nevertheless, the whole dimensions of the pylons (predesign) were checked for service loads.
Regarding the decks, two 13 m  width concrete decks are proposed: slabtype and hollowbox type, as can be appreciated in Figs. 3.5 (a) and (b). The main geometric characteristics (height, area A, shear areas A_{V}, torsion constant J_{T} and inertias I) can be seen in Table 3.1. Y and Z are the horizontal and vertical axis respectively.
(a) SlabType Deck
(b) Hollowbox Type Deck
Fig. 3.5 Proposed Decks for the Analysis (dimensions in metres)
Deck type  Height (m)  A (m^{2})  A_{Vy} (m^{2})  A_{Vz} (m^{2})  J_{T} (m^{4})  I_{y} (m^{4})  I_{z} (m^{4})
Slab  0.40  5.20  4.33  4.33  0.272  0.0693  73.23
Hollowbox  2.25  5.20  3.20  1.06  9.735  3.710  63.489
The crosssection areas for the slabtype and the hollowbox type are the same, which implies the same weight. This point is very important, because the main difference between both typologies is the inertia. The slabtype deck considers a very low inertia. The slenderness ratio in this case is h/L = 0.40/217 = 1/543 for the fan pattern, and h/L = 0.40/204.6 = 1/512 for the harp pattern, which implies a very slender deck. Of course, in this case bending moments are expected to be low. The hollowbox type deck shows a high inertia. The slenderness ratio is h/L =2.25/217=1/96 for the fan pattern, and h/L = 2.25/204.6 = 1/91 for the harp pattern, which implies a rigid deck. These differences involve the use of 6.2 m stayspacing for the flexible deck (slabtype), and 12.4 m stayspacing for the rigid deck (hollowbox type).
Materials and their mechanical properties have been chosen according to the general specifications and regulations for bridge design, taking into account seismic considerations [Priestley et al, 1996; Walter, 1999; Ministerio de Fomento, 2000; Aparicio and Casas, 2000].
For the seismic design, high strength concrete is employed, with strengths between 22.5 Mpa and 45Mpa, avoiding higher strengths because of their less ductility. For decks and pylons on all the bridges, a prestressed concrete HP40 (Table 3.2) is employed according to the Spanish regulation EHE [Ministerio de Fomento, 2000]. Regarding the steel for reinforced concrete, welding steel B400SD with special characteristics for ductility is employed according to Ministerio de Fomento (2000). Its mechanical properties are shown in Table 3.3.

Table 3.3 Properties of Steel for Reinforced Concrete

The stays have been considered applying parallelstrand cables (Fig. 3.6). The employed steel is Y 1860 S7 according to the EHE instruction [Ministerio de Fomento, 2000]. For the nonlinear analysis, the mechanical properties of the stays were considered taking into account a multicable formulation, with the incorporation of tension  only elements. The main properties of the stays (Table 3.4) have been obtained from the reference of Walter (1999).
Regarding the design of the stays, consideration of strength and fatigue factors according to the recommendations of Aparicio and Casas (2000) were applied in order to satisfy strength requirements as well as fatigue design criteria.
For definition of the actions in this research, the criteria of the Dirección General de Carreteras de España [Ministerio de Fomento, 1998] and the specific regulations of Eurocode 8  Part 2 [CEN, 1998b] regarding the seismic action on bridges, were considered. The main objective of this research is to study the seismic response of cablestayed bridges, and that is the reason why some actions are not considered. In fact, some prestressing forces, rheological, thermic or brake loads are not considered. It means that these actions are less important with regard to dead loads, live loads and of course the seismic action.
In this investigation, the bridges were considered with a medium importance and normal design traffic. These considerations involve a seismic importance factor γ_{I} = 1.00 according to Eurocode 8 Part 2 [CEN, 1998b], and a live load factor ψ_{21} = 0, according to Eurocode 1 Part 3 [CEN, 1998c]. By this way, to study the seismic response of the bridges, the only considered actions are the permanent loads (q_{PL}), the stay prestressing forces (q_{SPL}) and the seismic action of course (q_{E}). These considerations are reasonable because the permanent loads of a cablestayed bridge may contribute 80 – 90% to total bridge loads [Ren and Obata, 1999].
For the above mentioned, to combine the loads on the bridge models, it is necessary to add each action: q_{PL} + q_{SPL} + q_{E}.
Nonlinearities can be broadly divided into geometric and material nonlinearities. Material nonlinearities depend on the specific structure (materials used, loads acting, design assumptions). Although it is certain that the elasticplastic effect tends to reduce the seismic response of longspan cablestayed bridges [Ren and Obata, 1999], material nonlinearities depend highly on the characteristics of the input earthquake records. In general terms, cablestayed bridges experience very long periods, and for that reason formation of plastic hinges at the supports can be difficult. In fact, EC8 – 2 [CEN, 1998b] recommends for a welldesigned cablestayed bridge a behaviour factor q = 1, that is to say, an elastic seismic behaviour. Moreover, because of the high axial forces on the pylons, ductility of them can be questionable, and due to the importance of such structures, it is preferable an elastic behaviour of the materials, without formation of plastic hinges at the pylons. That is the main reason why the inelastic behaviour is not considered in this research. In this sense, dimensions and some special considerations for the selected bridge typologies take into account an elastic seismic behaviour of the materials. However, material nonlinearities due to the presence of additional viscous dampers as well as the tensiononly nonlinear effect of the cables are considered.
Moreover, geometric nonlinearities are present in any cablestayed bridge, and they originate from [Nazmy and AbdelGhaffar, 1990; Morgenthal, 1999]:
Those nonlinearities are especially considered in this research, because in some sense they govern the behaviour of this kind of structures, as was explained before. Geometric nonlinearity can be considered on a stepbystep basis in nonlinear static and direct integration time history analysis, and incorporated in the stiffness matrix for linear analysis.
Fig. 3.7 Modelling of the Towers

The bridge towers are represented by threedimensional portal frames, as shown in Fig. 3.7. The tower legs and struts were modelled using linear elastic beam elements based on gross crosssection properties. Inertia factors I_{ef}/I_{g} equal to 0.70 for the legs and 0.50 for the struts, where I_{ef} is the effective moment of inertia and I_{g} is the moment of inertia of the gross crosssection, were considered to take into account a modified stiffness of the frames, according to recommendations of Priestley et al (1996). Moreover, because of the finite crosssectional dimensions of the members and the significant length of the overlaps of the connecting elements, rigid links for the strut – leg connection were considered. This approximation allows an adequate modelling of the encasement of the struts into the tower legs.
The stiffening effect of the rigid links for the modelling of the legstrut connection (also called End Offsets) is accounted by specification of rigidend factors, which give the fraction of each end offset that is assumed to be rigid for bending and shear deformation. In the case of the portal frames used for the towers, a value of 0.5 for the rigidend factor was used.
For the adequate consideration of the vibrational characteristics of the towers, the distribution of lumped masses shown in Fig. 3.7 was considered. The masses were obtained from the elements using the mass density of the materials and the volume of the elements. These uncoupled masses are equal for each of the three translational degreesoffreedom. In the case of the code RAM Advanse, these masses need to be explicitly added in the selected joints. In SAP2000, these masses are automatically added at the end joints of the elements. However, it was necessary to place additional masses to take into account an adequate distribution of lumped masses in order to have a more accurate dynamic model. The lumped masses involves no mass coupling between degrees of freedom at a joint or between different joints
As was previously mentioned, the decks of the bridges are of two kinds: a slabtype deck for a stay spacing of 6.2 m and a hollow boxtype deck for a stay spacing of 12.40 m. To simplify the computing process, the decks were modelled using a single spine passing through the centroid of the crosssections, and applying linear beam elements. To simulate the exact stiffness and masses of the decks, an accurate definition of the geometry of the cross sections was developed with the computational code RAM Advanse and also exported to SAP2000. That was possible modifying the internal code in RAM Advanse, in order to generate the desired sections. A 3D rendering of the deck models can be seen in Fig. 3.8.
(a) Slabtype deck
(b) Hollowbox type deck
Most of the nodes were arranged corresponding to the anchor locations of the cables. The cable anchorages and the deck spine were connected by massless rigid links placed horizontally at 90^{o} to the spine (Fig. 3.9). These rigid links were idealized by linear springs, with all the degreesoffreedom fixed.
Fig. 3.9 Deck Modelling
Also, translational and rotational lumped masses were considered in the centroid of the crosssections, with the same spacing of the anchorages (Fig. 3.9). Specifically, rotational lumped masses were added to take into account the torsional modes due to eccentricity of the crosssection of the hollow box type deck. Translational masses consider the action of the permanent load including the effect of the dead load. Moreover, because of the decks are made of prestressed concrete, an inertia factor equal to 1.0 was considered.
As for the nonstructural components, such as parapets and beacons, their contribution to the structural rigidity is expected to be quite insignificant and therefore is ignored in the modelling. Likewise, since the cross sections of the deck are rigid (especially the hollowbox type deck), the corresponding warping constants are very large. Consequently, no crosssectional warping is anticipated.
In a first stage, trusselements for the cables were applied to compute the prestressing forces on the stays. The strategy of modelling stay cables using trusselements has been widely used, in which the nonlinear behaviour of the cables is accounted by linearizing the cable stiffness using the concept of an equivalent modulus of elasticity [Ernst, 1965]. However, prediction of the tridimensional vibration of the cables is not possible, aspect that can be important for an accurate dynamic analysis, especially if the cabledeck interaction plays an important role. For that reason, this strategy was only considered for the evaluation of the cable forces, through the nonlinear static analysis applying the code RAM Advanse.
For all the subsequent analyses, cables were modelled using a multielement cable formulation (tensiononly elements), employing 5node isoparametric cable elements [Ali and AbdelGhaffar, 1995; Förars et al, 2000], formulation that is considered in the structural codes applied.
For an inclined cable, the forcedeformation relation is expected to be nonlinear due to cable tension and cable sagging. The cable element uses an elastic catenary formulation to represent the behaviour of a slender cable under its own selfweight, temperature and strain loading. This highly nonlinear behaviour inherently includes tensionstiffening and largedeflection effects, that is to say, slack and taut behaviour. Although it is possible to model the cable as a series of straight elements to consider material nonlinearity or complicated loadings, the catenary formulation is better suited to most applications. In the case of the formulation here employed, it was necessary to determine the undeformed length of the cable, using a shape calculator. This point is very important, because the relationship between the undeformed length and the cord length (the distance between the two end joints) is extremely critical in determining the behaviour of the cable; although recently some researchers have proposed the use of cable models applying iterative numerical techniques using the finite difference method, in which the initial cable geometry is not required, being internally computed [Girija Vallabhan, 2008]. In simple terms, when the undeformed length is longer than the chord length, the cable is slack and has significant sag. When the undeformed length is shorter than the chord length, the cable is taut and carries significant tension with little sag (Fig. 3.10).
If the undeformed length of the cable is shorter than the chord length at the beginning of a nonlinear analysis, tension will immediately exist in the cable and iteration may be required to bring the structure into equilibrium before any load is applied, as always happens with cablestayed bridges. With regard to the initial geometry of the cables, a lot of ways to calculate it are available, as for example: specifying the undeformed length, either absolute or relative to the chord length; specifying the maximum vertical sag, measured from the chord to the cable; specifying the tension at either end of the cable, etc. In the case of cablestayed bridges, because of the high stay prestressing forces, it is advisable to specify the undeformed length as the initial geometry of the cables, as was applied in this work. Of course, the shape calculated here may not actually occur during any analysis case, because only the cable length is determined. The deformed shape of the cable and the tensions it carries will depend upon the loads applied and the behaviour of the structure during analysis.
With regard to the modelling of the cable forces applied in SAP2000, the prestress of the stays was considered applying negative axial deformation loads, which cause a decrease of the undeformed length of the cables, implying an internal tension. This axial deformation was calculated for each cable of the bridge models, according to the specified cable tensions, the elasticity modulus, the undeformed length and the area of the cables. In the case of the code RAM Advanse, the prestressing forces of the stays were directly applied. The selfweight load was automatically included with the previous data of mass density and cable geometry.
For the mass distribution along the cables, it was necessary a discretization of the cable elements in order to obtain lumped masses to provide accurate results from the dynamic analyses including the spatial vibration of the cables. Of course, the mass contributed by the cable element is lumped at the end joints, with no inertial effects considered within the element itself. For that reason, discretization in multicable elements was mandatory to capture full dynamics of the cable itself. To decide the number of segments necessary for this purpose, a preliminary modal analysis was conducted for the models AB4 and AR4. Those structures were selected because they consider the same deck type, deck level and stay spacing, being differentiated in the stay cable layout. The cables for each bridge were divided into 4 and 12 segments, and a modal analysis using eigenvectors was performed. Tables 3.5 and 3.6 show the first periods obtained for the cables considering both discretizations.
Table 3.5 Cable Periods for AB4 Bridge

Table 3.6 Cable Periods for AR4 Bridge

Results of this analysis showed that differences for both bridges are very similar. In both cases, the lowest periods were obtained for a discretization with 12 segments of the cables. Likewise, differences up to 2.3% were obtained for the first periods of the cables and the same magnitude of the differences were obtained for higher order modes of the cables. This implies that a minimum of four segments is adequate to capture full cable behaviour, although more segments imply more accurate results. For that reason, 12 segments were employed in this research.
The influence of the stay cable vibration on the response of the bridge is either ignored or considered by approximate procedures. The transverse vibration of the stay cables, which can be significant in some cases, is usually neglected. The common practice of modelling the cables by a single truss element is inadequate for seismic response calculations because it essentially precludes the lateral cable vibration modes. In fact, cable vibration effects are found to be significant for seismic response calculations, particularly when the cable fundamental frequencies are overlapping with the first few frequencies of the bridge. In this case, the equivalent modulus method cannot in any way account for the cable vibration effects [Tuladhar et al, 1995]. Only if the mass distribution along the cable is modelled and associated with extra degrees of freedom, the vibrational response of the cables can be obtained. The investigations of Förars et al (2000) and Cheng and Lau (2002) are a good approach regarding the cable vibration effects on the seismic response of cablestayed bridges.
Another aspect that is interesting is the convergence conditions using cable elements. Models with cable elements will usually converge better if a large number of iterations in the analyses are allowed. In the case of SAP2000, at least 25 iterations are recommended [Computers & Structures, 2007]. Convergence behaviour is generally improved by using fewer elements in the cable object, and by applying larger load increments. In this research, accurate results and convergence were reached with 60 iterations for the static nonlinear analyses. For the nonlinear direct integration time history analyses, up to 180 iterations were necessary depending on the bridge model and the input record, aspect enlarged in Chapter 4.
The stay cable design considers the employ of parallel strand cables. Nominal diameters were obtained with the described multicable formulation. This preliminary design work considered the bridges in their operational status, and the inclusion of the permanent loads and the prestressing forces of the stays. Design of the stays took into account the strength criteria and recommendations for the dimensioning on a fatigue basis [Walter, 1999; Aparicio and Casas, 2000]. A safety factor γ_{1} = 1.30 and a behaviour factor γ_{2} = 1.25 were considered, that is to say, an allowable stress σ_{u} = 0.45 f_{u}, where f_{u} is the ultimate tensile strength of the stays.
Table 3.7 Nominal Diameters of the Stays  A last aspect in the stay cable design is the fact that cables on each bridge were designed uniformly, that is to say, for the worse stress condition. Table 3.7 shows the predesign of the stays for each bridge model
If the deck is connected with very flexible bearings to the towers, the induced seismic forces will be kept to minimum values but the deck may have a large displacement response. On the other hand, a very stiff connection between the deck and the towers will result in lower deck displacement response but will attract much higher seismic forces during an earthquake [Iemura and Pradono, 2003]. The influence of different support conditions on the mode distribution has been investigated by Ali and AbdelGhaffar (1995) and Tuladhar and Dilger (1999). Movable supports lead to a more flexible structure, and of course, the decision upon the support conditions of the deck is usually governed by serviceability as well as earthquake considerations. A restrained deck will avoid excessive movements due to traffic and wind loading, however, in the case of an earthquake a restrained deck will generate high axial forces which are applied to the pierpylon system. Elastic supports for the deck at the towers give very low deck displacements and deck bending moments compared to pinned or fixed connections. Roller supports also cause the bridge have very low first longitudinal direction mode frequency, indicating that the bridge is very flexible in that direction.
Fig. 3.11 Modelling of the Towerdeck Connection
In the present investigation, connection between deck and towers is supported by the lower strut through vertical rigid links with pinned bearings at the endjoints, in the connection with the deck (Fig. 3.11). These rigid links were idealized using linear massless springs with all the directional degreesoffreedom fixed. For the abutmenttodeck connection, sliding bearings were used, in order to permit free longitudinal displacements of the structure due to normal expansions, and free rotations about the transverse axes (Fig. 3.12).
The towers were founded to bedrock and their bases were treated as being fixed in all degreesoffreedom at the piers, as usually happens on cablestayed bridges. This affirmation implies that soilstructure interaction is not considered here, as was previously explained. For situations involving large amplitude–large force response, such as during an earthquake, it may be appropriate to reconsider the realistic nature of these boundary conditions as well as the permissible degreesoffreedom of the decktower bearings [Wilson and Gravelle, 1991].
For the incorporation of viscous dampers, it is important to replace the existing pinned bearings by roller supports plus these special devices at the decktower connection to reduce seismic forces, absorb large seismic energy, and reduce the response amplitudes considering pure viscous damping. Additionally, energyabsorbing devices may also be put between the deckends and the abutments. In order to show some of the complete 3D finite element models of the bridges, Fig. 3.13 exposes a general structural view of the bridges AB1, AB4, AR1 and AR4.
(a) AB1 pattern

(b) AB4 pattern
(c) AR1 pattern
(d) AR4 Pattern
As a first step of the nonlinear seismic analysis, a nonlinear static analysis under gravity loads and stay prestressing forces was carried out. Nonlinearities in this stage include the stay cable sag effect, axial forcebending moment interaction, large displacements effect and the material nonlinearity due to the tension only formulation of the cable elements. Of course, the nonlinear static analysis was performed for each bridge model, considering the actualized data of the stay prestressing forces.
Mathematically, nonlinear static analysis does not always guarantee a unique solution. Inertial forces in dynamic analysis and in the real world limit the path a structure can follow. But this is not true for static analysis, particularly in unstable cases where strength is lost due to material or geometrical nonlinearity. In this sense, small changes in properties or loading can cause large changes in nonlinear response [Computers & Structures, 2007].
With regard to the nonlinear solution control, the specified combination of loads is applied incrementally, with as many steps as necessary to satisfy equilibrium. The nonlinear equations are solved iteratively in each step, requiring reforming and resolving the stiffness matrix, until the solution converges. The parameters to control the iterations include the maximum total steps, which are the maximum number of steps allowed in the analysis, including saved and intermediate substeps. This parameter permits to control over how long the analysis will run, considering that the length of time it takes to run a nonlinear static analysis is approximately proportional to the number of steps. For all the bridge models in this research, the maximum total steps per stage were 200. The maximum null steps occur when iteration does not converge and a smaller step size is required. An excessive number of null steps indicate that the solution is stalled due to catastrophic failure or numerical sensitivity. In this investigation, the maximum null steps were 50. The number of iterations allowed in a step before the use of smaller substeps (maximum iterations per step) depends on the nature of the employed elements in the analysis. In the case of frame elements, normally 10 iterations is enough, however in the case of cable structures, more iterations are necessary. In the static analysis presented here, the convergence was guaranteed selecting 60 maximum iterations per step. With regard to the iteration convergence tolerance (a comparison of the magnitude force error acting on the structure), accurate results were obtained using a value of 1x10^{6}. In this sense, it is necessary to explain that the smaller values of this parameter are necessary when largedisplacement problems are solved, how occurs in this investigation.
Fig. 3.14 Location of Measured Displacements
Fig. 3.14 shows the location of the measured displacements on the bridges. ∆_{1L} corresponds to the longitudinal displacement of the towertop, and ∆_{1T}corresponds to the transverse displacement of the same point. ∆_{3V} is the vertical displacement of the deck at the midspan, and finally, ∆_{4L}corresponds to the longitudinal displacement of the deckends.
M_{maxtower} corresponds to the maximum bending moments of the towers; M_{maxdeck2}is the maximum inplane bending moment of the deck at the towerdeck connection; M_{maxdeck3} is the maximum inplane bending moment of the deck at the midspan; N_{maxtower} corresponds to the maximum compressive force of the tower legs; N_{maxdeck} corresponds to the maximum compressive force of the deck and N_{maxcable} is the maximum axial force of the cables.
Table 3.8 summarizes the maximum main displacements and Table 3.9 summarizes the maximum main forces for each bridge.
BRIDGE  ∆_{1L}^{a}  ∆_{1T}  ∆_{3V}^{b}  ∆_{4L}^{a}
AB1  0.38  0..40  1.55  1.83
AB2  0.30  0.16  1.51  1.88
AB3  0.05  0.35  1.41  1.57
AB4  0.03  0.14  1.55  1.59
AR1  0.00  0.02  0.45  2.11
AR2  0.52  0.03  1.59  2.13
AR3  0.13  0.01  0.11  1.92
AR4  0.02  0.04  0.28  1.97
^{a} Positive value implies a displacement toward the midspan
^{b} Negative value implies a descending
BRIDGE  M_{maxtower}^{a, c} [MN.m]  M_{maxtower}^{d, e} [MN.m]  M_{maxdeck3}^{c} [MN.m]  M_{maxdeck2}^{c} [MN.m]  N_{maxtower}^{a} [kN]  N_{maxdeck}^{b}[kN]  N_{maxcable} [kN]
AB1  18.0  8.15  0.48  1.58  57200  25200  4800
AB2  21.2  10.81  0.48  1.38  101200  25500  4950
AB3  15.7  7.50  7.59  13.3  52900  22100  5630
AB4  18.3  9.09  7.60  12.9  97000  22400  5770
AR1  11.0  6.55  0.77  3.94  52900  36400  1560
AR2  23.0  9.72  0.71  3.81  97000  36900  1790
AR3  19.5  6.36  6.24  22.9  51300  32000  2700
AR4  23.5  8.67  6.06  22.2  95300  32500  2820
^{a} At the tower base ^{c} In the bridge plane ^{e} Outofplane
^{b} At the towerdeck level ^{d }At the upper strut level  Implies compression
Values of displacements and forces shown in Tables 3.8 and 3.9 are in accordance with the structures. Although a static parametric analysis is not the aim of this investigation, it can be interesting to observe that maximum displacements at the deckends are associated with the harp pattern. Because of the loads and geometric symmetry of the structures, transverse deflections at the towerdeck level as well as the longitudinal and transverse deflections of the decks at the midspan are zero.
Regarding the internal forces, it can be observed in general terms that maximum bending moments of the towers occur for the tallest structures (for both inplane and outofplane directions). Likewise, because of the longer dimensions of the towers, maximum compressive forces of the tower legs occur for the bridges AB2, AB4, AR2 and AR4. Of course, maximum inplane bending moments and axial forces of the towers occur at their base. With regard to the internal forces of the decks, it can be appreciated that maximum inplane bending moments are associated with the longest stay spacing, aspect that is obvious because the stays work as elastic supports. In the same way, maximum bending moments take place for the harp pattern with the longest stay spacing at the towerdeck connection, and maximum axial forces of the decks occur for the harp pattern with the shortest stay spacing at the towerdeck connection. In general terms, an increase of the stay spacing increases the bending moments of the deck, but decreases the compressive forces. The maximum compressive forces and bending moments of the decks take place in the vicinity of the towerdeck connection, because of the presence of the fixed hinges. This issue can be very important in a seismic analysis, and it can be a sign for the location of additional energy dissipation devices in order to mitigate excessive axial forces. With regard to the cable forces, maximum values occur for the longest back stays. It is interesting to observe that the highest cable forces are associated with the fan pattern, and it is clear that longer stay spacing involves higher cable forces. In other words, the worse cable condition occurs for the back stays in the presence of fan pattern with the longest stay spacing. A detailed static parametric analysis can be found in the reference of Walter (1999).
As example, Figs. 3.15 and 3.16 show some results of the static analysis under service loads for the bridges AB1 and AR4. These bridges were chosen because they can be considered as extreme cases. Because of the loads and geometric symmetry of the structures, only onehalf is shown.
(a) Inplane bending moments of the deck

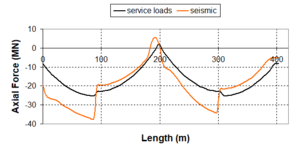

(b) Axial forces of the deck
(c) Inplane bending moments of the pylon
(d) Axial forces of the pylon
(a) Inplane bending moments of the deck
(b) Axial forces of the deck
(c) Inplane bending moments of the pylon
(d) Axial forces of the pylon
Nonlinearities associated to largedisplacements and axial forcebending moment interaction involved in the static analysis, are less important than those nonlinearities in the dynamic analysis. Because of the rapid change of the forces during an earthquake, those geometric nonlinearities can be very important in this situation. In this sense, Table 3.10 shows a brief comparison of the static response for AB4 bridge, considering only cablesag effect, cable sag plus PΔ effects and cable sag plus PΔ plus largedisplacement effects. Displacements are shown in [cm], forces in [kN] and moments in [MN.m].
Measured response  Nonlinearities considered
Cable sag  Cable sag + PΔ  Cable sag + PΔ+large displ.
Δ_{4L}  1.57  1.57  1.59
M_{maxdeck2}  9.00  9.07  12.9
N_{maxtower}  94300  94300  97000
N_{maxdexk}  22100  22200  22400
N_{maxcable}  5720  5730  5770
From Table 3.10, it is clear that in this case PΔ and largedisplacement effects are not very significant on the longitudinal deck displacements. More important differences can be found for the bending moments of the deck, with differences up to 30% comparing the case of only cable sag effect and the case including all the geometric nonlinearities. Differences for the axial force of the towers, axial force of the deck and axial force of the cables are less sensitive, which implies that PΔ and largedisplacement effects are not very important in such cases. However, it can be supposed that those differences could be more important on longer bridges, and of course, in the nonlinear dynamic analyses. For that reason it is important to consider all those nonlinearities in the static case as starting point for the nonlinear seismic analyses [AbdelGhaffar, 1991; Morgenthal, 1999].
The dynamic response of a structure can be well characterized by a modal analysis. Because of the complex nature of these structures and their seismic response, a twodimensional analysis is not adequate to capture the threedimensionality of the system, and for that reason, a 3D analysis is always recommended for the nonlinear static/dynamic analysis of cablestayed bridges, and of course, for a modal analysis.
As first approach of the seismic response of these structures, a characterization of natural frequencies, modal shapes, modal participation factors as well as damping mechanism is highly recommended, as was explained in the stateoftheart review. In order to obtain the modified stiffness matrix considering all nonlinearities available, a nonlinear static analysis was performed first using the proposed finite element modelling. The dynamic free vibration analysis is then performed based on the deformed configuration, and considering as previous stage the nonlinear static analysis. As a consequence, the modal analysis can be used as the basis for modal superposition in the responsespectrum analysis.
A lot of strategies to find the natural frequencies have been proposed. The Eigenvector analysis determines the undamped freevibration mode shapes and frequencies of the system, solving the generalized eigenvalue problem , where M is the diagonal mass matrix, K is the stiffness matrix, ω^{2 }is the diagonal matrix of eigenvalues, and Φ is the matrix of the corresponding eigenvectors (modal shapes). This problem can be solved using the classical tools of linear algebra, or applying approximate strategies to speedup the solution, as for example the StodolaVianella method.
The Ritzvector analysis is another strategy to solve this problem, in which the analysis seeks to find modes that are excited by a particular loading. In this sense, it has been demonstrated [Wilson et al, 1982] that dynamic analyses based on a special set of loaddependent Ritz vectors yield more accurate results than the use of the same number of natural mode shapes. The reason why the Ritz vectors yield good results is that they are generated by taking into account the spatial distribution of the dynamic loading, whereas the direct use of the natural mode shapes neglects this very important information. In addition, the Ritzvector algorithm automatically includes the advantages of the proven numerical techniques of static condensation, Guyan reduction and static correction due to highermode truncation. The spatial distribution of the dynamic load vector serves as a starting load vector to initiate the procedure. The first Ritz vector is the static displacement vector corresponding to the starting load vector. The remaining vectors are generated from a recurrence relationship in which the mass matrix is multiplied by the previously obtained Ritz vector and used as the load vector for the next static solution.
In this research, it was found that differences regarding the application of eigenvectors or Ritzvector analysis were absolutely negligible, with differences of about 0.5%. In spite of the low differences, the modal analysis was performed applying the Ritzvector Analysis, according to the algorithm detailed in Wilson (1985). The total number of modes was selected to reach at least 90% of the effective translational mass, in which more than 300 modes were necessary, although a total of 30 natural periods for each bridge were obtained that range between 0.237 and 2.938 sec. Depending on the relative amplitudes of the modal shapes, these modes were classified into the following groups: vertical modes (V), transverse modes (Tr), longitudinal modes (L) and torsional modes (Tor) for the deck and towers. All the dynamic properties were obtained applying the structural code RAM Advanse [RAM International, 2003]. For all the analyses, the predominant period of a structure corresponds to the natural period associated with the highest translational mass, sometimes different from the fundamental period, usually associated with the first natural frequency.
Table 3.11 Natural Periods for the Longest Cables

Table 3.11 shows predominant periods for the longest cables of the bridges that depend on the tension forces (T), the angle of the cable sag with regard to the horizontal plane (α_{0}), the unitary mass of the cables (m) and the horizontal projection of the cables (L).
Longest periods for the cables can be observed in the bridges AB1 and AB2 (2.51 sec) as well as the shortest periods correspond to the bridges AR3 and AR4 (1.12 sec). The main differences on the determination of the predominant periods of the cables come from the mass m and the prestressing forces T.
Tables 3.12 and 3.13 show natural periods and nature of the modal shapes for the first 15 modes considering the fan and harp pattern respectively. Table 3.14 shows modal shapes of the bridges for the first three modes, as well as Tables 3.15 and 3.16 show modal participation factors for the fan and harp pattern respectively. The longest fundamental periods correspond to the bridges AR2, AR4, AB4 and AB2 with values of 2.938, 2.845, 2.804 and 2.694 sec respectively. Those results are obvious because they are the tallest bridges, that is to say, the more flexible structures. For those cases, longitudinal/vertical motion of the deck governs; with the highest periods for the harp pattern; and modal participation factors for the fundamental periods over 70%. For the smallest bridges, fundamental periods of 2.020, 1.992, 1.806 and 1.801 sec, associated to bridges AR3, AR1, AB1 and AB3 were obtained respectively. In this case, modal shapes are governed by longitudinal/vertical oscillations of the deck, for the harp pattern; as long as transverse oscillations govern the modal shapes of the fan pattern bridges. Regarding the modal participation factors associated with the fundamental periods for the smallest bridges, values over 55% were observed. Comparing fundamental periods for tall and small bridges, it is easy to see that the highest periods were obtained with the harp pattern bridges. In other words, for these support conditions, harp pattern structures are more flexible than the fan pattern bridges. Analyzing the incidence of the stay spacing, fundamental period of AB1 bridge is slightly longer than period of AB3 bridge; and fundamental period of AB4 bridge is longer than period of AB2 bridge. For the harp pattern, fundamental period of AR3 bridge is longer than period of AR1 bridge; as long as fundamental period of AR2 bridge is longer than period of AR4 bridge. As a result, an increase of the longitudinal stiffness if the stay spacing decreases is not evident and significant.
If the regression analysis provided by Kawashima et al (1993), is applied here, an average predominant period of 1.76 sec is obtained. This value, associated with vertical bending vibrations, is relatively close to the average fundamental period computed with the modal analysis for the smallest bridges (T = 1.90 sec), which implies 7.4% difference.
From Tables 3.12 and 3.13 it is evident that the close spacing of the natural periods is a vibrational characteristic of these bridges, in accordance with the observations of AbdelGhaffar (1991). In this sense, some modal participation factors (Tables 3.15 and 3.16) are very close, indicating strong modal coupling, a very important characteristic of the dynamic behaviour of cablestayed bridges.
It is interesting to observe that the first ten modes for all bridges are associated with periods that range between 0.4 and 2.94 sec, that is to say, those structures can be more affected by velocity than acceleration or displacements according to Eurocode 8 [CEN, 1998a]. In fact, this code explains that velocitysensitive region corresponds to periods in the range between 0.4<T<3 sec. On the other hand, for structures equipped with additional damping devices, the reduction in responses is essentially unaffected by damper nonlinearity in the velocitysensitive region. For that reason, cablestayed bridge models of this work can be more affected by velocity, with no incidence of the damper nonlinearity on the seismic response. These aspects are necessary to be taken into account in the analysis of the bridges.
Mode  AB1  AB2  AB3  AB4
Period (sec)  Nature of modal shape  Period (sec)  Nature of modal shape  Period (sec)  Nature of modal shape  Period (sec)  Nature of modal shape
1  1.806  Deck Tr  2.694  Deck L  1.801  Deck Tr  2.804  Deck L
2  1.663  Deck Lon  2.539  Deck Tr  1.798  Deck V  2.662  Deck Tr
3  1.585  Deck V  2.064  Tower Tr  1.689  Deck L  2.156  Tower Tr
4  1.532  Tower Tr  1.567  Deck V  1.528  Tower Tr  1.737  Deck V
5  1.340  Deck + Tower Tr  1.320  Deck Tr  1.341  Deck Tr+Tower Tr  1.348  Deck Tr
6  1.027  Deck V  1.065  Deck V  0.983  Deck V  1.021  Deck V
7  0.768  Deck Tor+Tower L  0.858  Deck Tor+Tower L  0.850  Deck Tor+Tower L  0.932  Deck Tor+Tower L
8  0.766  Deck Tor+Tower L  0.845  Deck Tor+Tower L  0.773  Deck Tor+Tower L  0.879  Deck Tor+Tower L
9  0.655  Tower L+deck Tr  0.701  Tower Tr  0.679  Deck V  0.720  Tower Tr
10  0.549  Tower Tr+Deck Tr  0.660  Tower Tr  0.663  Tower Tr  0.705  Deck V
11  0.490  Deck V + Tower L  0.526  Deck V  0.582  Deck V  0.671  Tower Tr
12  0.479  Deck V  0.509  Deck Tr  0.550  Tower Tr  0.584  Deck Tr+Tower L
13  0.449  Tower Tr+Deck Tr  0.479  Deck V  0.532  Deck V  0.525  Deck V
14  0.439  Deck V  0.440  Deck V  0.460  Tower Tr+Deck Tr  0.567  Deck V
15  0.406  Deck V  0.402  Deck V  0.488  Deck V  0.495  Deck V
Mode  AR1  AR2  AR3  AR4
Period (sec)  Nature of mode shape  Period (sec)  Nature of mode shape  Period (sec)  Nature of mode shape  Period (sec)  Nature of mode shape
1  1.992  Deck L  2.938  Deck L  2.020  Deck V  2.845  Deck L
2  1.900  Deck V  2.568  Deck Tr  1.795  Deck L  2.535  Deck Tr
3  1.733  Deck Tr  2.130  Tower Tr  1.772  Deck Tr  2.080  Tower Tr
4  1.532  Tower Tr  1.772  Deck V  1.528  Tower Tr  1.886  Deck V
5  1.287  Deck Tr  1.269  Deck Tr+Deck Tor  1.323  Deck Tr  1.312  Deck Tr
6  1.049  Deck V  1.164  Deck V  1.058  Deck V  1.110  Deck V
7  0.877  Deck Tor+Tower L  0.950  Deck Tor+Tower L  0.955  Deck V  0.932  Deck V
8  0.867  Deck Tor+Tower L  0.928  Deck Tor+Tower L  0.864  Deck Tor+Tower L  0.918  Deck Tor+Tower L
9  0.747  Deck V  0.700  Tower Tr  0.832  Deck V  0.854  Deck Tor+Tower L
10  0.681  Deck V  0.662  Tower Tr  0.750  Deck Tor+Tower L  0.832  Deck V
11  0.636  Tower Tr  0.658  Deck V  0.681  Deck V  0.690  Tower Tr
12  0.635  Deck V  0.626  Deck V  0.639  Tower Tr  0.680  Deck V
13  0.622  Tower Tr  0.625  Deck V  0.556  Tower Tr  0.656  Tower Tr
14  0.564  Deck V  0.580  Deck V  0.510  Tower Tr  0.611  Deck V
15  0.551  Deck V  0.493  Deck Tr  0.508  Deck V  0.504  Deck V
From Tables 3.12, 3.13 and 3.14 it is clear, for all bridges, that first modes are associated with the deck. They are followed by tower or cable modes, depending on the bridge configuration. In this sense, some cable modes are overlapped with the deck modes, especially on bridges AB1, AB2 and AR1, aspect that can imply some incidence of the cable vibrations on the seismic response of the bridges, according to Tuladhar et al (1995).
From Tables 3.15 and 3.16, it is clear that some important higher order modes are present, especially on bridges AB1, AB3, AR1 and AR3, that is to say, the smallest structures. Because of the relatively low vertical modal participation factors, importance of the vertical motion on the seismic response seems to be not very significant, although some important vertical effects can occur in the presence of nearsource earthquakes.
Another interesting observation can be proposed with regard to the modal shapes related to the deck torsion. The deck torsion is coupled with the longitudinal motion of the tower legs, with no evidence of pure torsion for the first 15 modes and independently on the deck type, stay spacing, stay cable layout and deck level. This implies that torsion generated by the eccentricity of the crosssection of the hollowbox type deck can be ignored.
Mode 1  Mode 2  Mode 3
AB1
T = 1.806 sec
T = 1.663 sec
T = 1.585sec
AB2
T = 2.694 sec
T = 2.539 sec
T = 2.064 sec
AB3
T = 1.801 sec
T = 1.798 sec
T = 1.689 sec
AB4
T = 2.804 sec
T = 2.662 sec
T = 2.156 sec
AR1
T = 1.992 sec
T = 1.900 sec
T = 1.733 sec
AR2
T = 2.938 sec
T = 2.568 sec
T = 2.130 sec
AR3
T = 2.020 sec
T = 1.795 sec
T = 1.772 sec
AR4
T = 2.845 sec
T = 2.535 sec
T = 2.080 sec
MODE  AB1  AB2  AB3  AB4
long  vert  transv  long  vert  transv  long  vert  transv  long  vert  transv
1  0.00  0.00  61.21  76.08  0.00  0.00  0.00  0.12  59.54  75.88  0.00  0.00
2  63.56  0.00  0.00  0.00  0.00  73.94  0.00  3.59  1.98  0.00  0.00  73.04
3  0.00  1.40  0.00  0.00  0.00  0.00  66.35  0.00  0.00  0.00  0.00  1.88
4  0.00  0.00  0.00  0.00  0.67  0.00  0.00  0.00  0.00  0.00  1.70  0.00
5  0.00  0.00  7.17  0.00  0.00  6.98  23.42  0.00  0.00  0.00  0.00  5.77
6  27.32  0.00  0.00  9.25  0.00  0.00  0.00  0.00  7.79  8.54  0.00  0.00
7  0.00  0.00  0.5  0.00  0.00  0.00  0.00  0.00  0.50  0.00  0.00  0.15
8  0.00  0.00  0.00  0.00  0.00  0.18  0.00  10.38  0.00  0.00  0.00  0.04
9  0.00  0.00  0.00  0.00  0.00  0.00  0.00  0.00  0.00  0.00  0.00  0.43
10  0.00  0.00  20.82  0.00  0.00  6.02  0.00  0.00  0.00  0.00  0.00  6.54
11  0.00  2.51  0.00  0.00  0.00  0.00  0.2  0.00  0.00  0.00  5.01  0.00
12  0.00  2.42  0.00  0.00  0.73  0.00  0.00  0.00  21.48  0.01  2.53  0.00
13  0.00  0.00  0.00  0.00  1.66  0.00  0.00  7.14  0.00  0.00  0.00  0.00
14  0.08  0.00  0.00  0.17  0.00  0.00  0.00  0.00  0.00  0.21  0.00  0.00
15  0.00  9.86  0.00  0.00  5.74  0.00  0.00  8.09  0.00  0.00  6.69  0.00
MODE  AR1  AR2  AR3  AR4
long  vert  transv  long  vert  transv  long  vert  transv  long  vert  transv
1  58.10  0.00  0.00  70.06  0.00  0.00  0.00  3.13  0.00  74.7  0.00  0.00
2  0.00  0.24  0.00  0.00  0.00  75.85  54.66  0.00  0.00  0.00  0.00  75.12
3  0.00  0.00  44.05  0.00  0.00  0.00  0.00  0.00  62.92  0.00  0.00  0.00
4  33.41  0.00  0.00  0.00  0.19  0.00  0.00  0.00  0.00  0.00  1.73  0.00
5  0.00  0.00  0.00  0.00  0.00  4.85  0.00  0.00  5.55  0.00  0.00  5.89
6  0.00  0.00  22.37  15.32  0.00  0.00  35.62  0.00  0.00  9.10  0.00  0.00
7  0.00  0.00  0.12  0.00  0.00  0.00  0.00  0.00  0.50  0.00  0.00  0.14
8  0.00  0.82  0.00  0.00  0.00  0.08  0.00  18.78  0.00  0.00  10.83  0.00
9  0.00  0.00  0.00  0.00  0.00  0.00  0.02  0.00  0.00  0.01  0.00  0.00
10  1.44  0.00  0.00  0.00  0.00  6.18  0.00  0.00  0.00  0.00  0.00  0.00
11  0.00  0.00  0.00  0.00  6.38  0.00  0.00  8.83  0.00  0.00  3.24  0.00
12  0.00  15.92  0.00  0.00  3.38  0.00  0.00  0.00  0.00  0.00  0.97  0.00
13  0.00  4.36  0.00  0.01  0.18  0.00  0.00  0.00  21.66  0.00  0.00  6.06
14  0.01  0.00  0.00  0.17  0.00  0.00  0.00  0.23  0.00  0.00  0.00  0.00
15  0.00  0.00  0.00  0.00  0.00  0.00  0.05  0.00  0.00  0.72  0.00  0.00
Damping on cablestayed bridges is low, of about 2%, according to Morgenthal (1999). Kawashima and Unjoh (1991) found that critical damping ratio was dependent with the excitation amplitude and modal shape, aspect that makes the damping estimation very complex. Of course, this approach is not by the side of this research, and constant values for the damping ratio are suggested for each bridge, depending on the modal shape. In this sense, the approximation by Kawashima and Unjoh (1991), in which the critical damping ratio for the main modes is correlated with the natural frequencies of the bridges, can be applied here. Table 3.17 shows results of this formulation. Here, ξ^{BV}, ξ^{BH} and ξ^{T} are the critical damping ratios for vertical bending oscillations, transverse bending oscillations and torsional oscillations, respectively.
As can be seen, critical damping ratios are similar for all bridges and strongly dependent on the considered mode. Lowest values of the critical damping ratio correspond to torsional oscillations (≈ 0.50%). They are followed by vertical bending oscillations (≈ 0.80%). The highest values of the critical damping ratio correspond to transverse bending oscillations, with an average value of 1.70%. Anyway, all the damping values are very low, and very different from the classical 5% of the critical damping adopted in the design codes. Likewise, it can be observed that damping associated with vertical bending, transverse bending and torsional oscillations depend on the deck level, that is to say, the bridge flexibility. In this sense, the lowest damping ratios are experienced with the tallest structures.
Modal shape  Bridge
AB1  AB2  AB3  AB4  AR1  AR2  AR3  AR4
Vertical bending  0.89  0.75  0.86  0.74  0.83  0.73  0.83  0.74
Transverse bending  1.73  1.67  1.73  1.67  1.74  1.70  1.73  1.67
Torsional  0.58  0.50  0.51  0.45  0.49  0.42  0.50  0.46
Finally, it is important to say that results of the damping analysis are in accordance with real measures on bridges, as can be seen in the works of Garevski and Savern (1992, 1993); Yamaguchi and Manabu (1997) and Atkins and Wilson (2000).
The response spectrum method for the seismic analysis of structures is a useful and powerful tool, well implemented in the current seismic regulations. This methodology computes the maximum seismic response of a structure using modal superposition, on the basis of a modal analysis previously performed, and applying an elastic design response spectrum as seismic input. Although this strategy is questionable in the case of structures with nonlinear seismic behaviour, it can be applicable as first approach for the seismic analysis, in order to compare the maximum seismic responses with those obtained from the nonlinear time history analysis considering similar conditions of soil and effective ground acceleration.
Design response spectra considered in this research were obtained from Eurocode 8 [CEN, 1998a, 1998b]. This code was selected because it considers specific recommendations and the definition of the response spectra for bridges. The structural parameters involved with the definition of the response spectra consider a medium importance for the bridges and an elastic seismic behaviour (behaviour factor q equal to 1.0). The structures are founded on bedrock, and the considered maximum effective ground acceleration is 0.5g for the horizontal component, and 0.35g for the vertical component, where g is the gravity acceleration. These values are representative for structures located in high seismicity areas founded on bedrock, as usually happens in the subduction zone of the Mexican coast (Pacific ocean) [CFE, 1993]; several areas of the California coast [AASHTO, 1994, section 3.10]; and some areas of Japan [Japan Road Association, 1996, section 6.3]. The vertical component was assessed as a function of the horizontal one, according to Eurocode 8. Critical damping ratio of 1.7% was selected according to the modal analysis of the bridges previously exposed. The damping correction factor η, for values different from the classical 5%critical damping ratio, was applied in this case. Table 3.18 summarizes the definition of the considered parameters. Thus, the design acceleration response spectra, for both horizontal and vertical components, were obtained according to Fig. 3.17. Likewise, Fig. 3.18 shows the design velocity response spectra, which is of interest in the formulation of the artificial accelerograms.
DESCRIPTION  PARAMETER  VALUE
Structural importance  Medium  γ  1.00
Structural behaviour  Elastic  q  1.00
Soil  A (Rock)  S  1.00
T_{b}  0.10
T_{c}  0.40
T_{d}  3.00
β0  2.50
k1  1.00
k2  2.00
Maximum effective ground acceleration  horizontal  a_{g}  0.5g
Critical damping ratio  ξ  1.70%
Damping correction  η  1.38

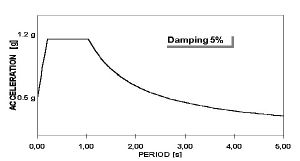

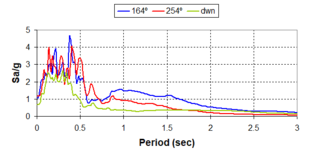

Fig. 3.17 Design Acceleration Response Spectra
Fig. 3.18 Design Velocity Response Spectra
With regard to the modal superposition, CQC modal combination rule was applied because of the strong modal coupling that cablestayed bridges experience. The bridge models were analyzed for each load condition, in which the seismic components were combined applying the 30% rule according to Eurocode 8. All the analyses were performed applying the structural code RAM Advanse [RAM International, 2003].
The analysis results show some differences regarding the longitudinal displacements of the shortest towers (bridges AB1, AB3, AR1 and AR3), aspect that is not obvious for the case of the tallest bridges. In fact, for the shortest towers, maximum displacements can be obtained for the bridges AR1 and AB3. In the same way, longitudinal displacements of the tower of AB1 bridge are larger than longitudinal displacements of the tower of AR3 bridge; however, not very interesting conclusions can be formulated according to the above mentioned, as can be seen in Figs. 3.19 and 3.20. In the case of the 111 m heighttowers, differences regarding the longitudinal displacements of the towers are negligible (Fig. 3.19). Of course, maximum longitudinal displacements of the towers are obtained for the tallest bridges, with maximum values at the towertop of about 40 cm for the tallest towers, and 30 cm for the shortest ones. Likewise, it can be appreciated that maximum longitudinal displacements at the towertop for AB3 bridge are larger than maximum longitudinal displacements at the towertop of AB1 bridge. In the case of AB4 bridge, maximum top displacements are larger than displacements of AB2 bridge. A similar situation can be observed with the maximum longitudinal displacements at the towertop of the bridges AR3, AR1, AR4 and AR2; concluding that bridges with longer stay spacing experience an increase of the longitudinal displacements of the towertop. Following with the longitudinal displacements of the towers, a brief comparison between the analysis under service loads and the seismic displacements can be observed in Figs. 3.21 and 3.22 (plots of longitudinal displacements using logarithmic scale), in this case, for the extreme cases AB1 and AR4. In both situations is clear the tremendous difference between the static and seismic longitudinal displacements of the towers, with seismic displacements more than 78 times the static displacements (AB1 bridge) and 50 times for the AR4 bridge. Of course, similar conditions can be found with the rest of the cases. It is interesting to note that maximum longitudinal seismic displacements occur at the towertop, aspect that is not always certain for the static condition under service loads.
Fig. 3.19 Maximum Seismic Longitudinal Displacements for 81 m  height Towers
Fig. 3.20 Maximum Seismic Longitudinal Displacements for 111 m  height Towers
Fig. 3.21 Maximum Tower Longitudinal Displacements for AB1 Bridge
Fig. 3.22 Maximum Tower Longitudinal Displacements for AR4 Bridge
With regard to the maximum vertical seismic displacements of the decks, more interesting observations can be formulated. Because of the differences with the flexural stiffness of the decks, the analysis was carried out considering the slabtype deck (bridges AB1, AB2, AR1 and AR2) and the hollowbox type deck (bridges AB3, AB4, AR3 and AR4) separately. In the first case, maximum vertical displacements are concentrated in the extreme spans (in the first thirdlength) and the vicinity of the mainspan centre (see Fig. 3.23), distribution that can be very different from the static condition (Fig. 3.25). Maximum values of the vertical displacements vary from 33 to 40 cm, depending on the bridge model. It is clear that maximum vertical displacements are obtained for the AR1 model, followed by the bridges AR2, AB1 and AB2 respectively. Fig. 3.25 exposes a comparison between the seismic and service loading condition (in this case, the extreme condition AB1), with differences in the seismic condition up to 35 times the service condition, as can be appreciated.
In the case of the hollow boxtype deck (stay spacing of 12.4 m), the displacement distribution is very different from the slabtype deck, with maximum values concentrated in the halflength of the extreme spans, and the thirdlength of the main span, as can be seen in Fig. 3.24. Maximum displacements vary from 23 to 33 cm, depending on the bridge model. Likewise, maximum values of deck displacements are obtained for AR3 bridge followed by the bridges AR4, AB3 and AB4 respectively (see Fig. 3.24). Fig. 3.26 exposes a comparison between the seismic and static deck displacements under service loads, for the extreme condition AR4, showing differences for the seismic condition more than 20 times the service displacements.
Fig. 3.23 Maximum Vertical Seismic Displacements – Slabtype Deck
Fig. 3.24 Maximum Vertical Seismic Displacements – Hollow boxtype Deck
Fig. 3.25 Maximum Vertical Deck Displacements for AB1 Bridge
Fig. 3.26 Maximum Vertical Deck Displacements for AR4 Bridge
Of course, a comparison between vertical displacements of the slabtype deck and the hollow boxtype deck is not possible because they involve different stay spacing; however, it is clear that maximum values and maximum differences between the seismic and static condition under service loads are obtained with the slabtype deck because of the low flexural stiffness. In this sense, it seems to be that the deck displacement distribution can be more affected by the stay spacing than the deck type. Regarding the influence of the stay cable layout, it is evident that vertical deck displacements for the harp pattern are higher than displacements for the fan pattern, with some influence of the deck level; showing that bridges with the shortest deck level experience larger deck displacements than bridges with the highest deck level.
The comparison of internal forces shows interesting conclusions. The analysis of the compressive forces of the tower legs exposes variations for the maximum values (base) of the shortest towers with differences no greater than 5%. The results (Fig. 3.27) show important differences of the maximum values over the deck level (30 m), and increasing with the altitude. In fact, at the towertop, differences up to 95% can be found. Also, Fig. 3.27 exposes that maximum compressive forces are obtained for AB1 bridge, followed by AR1 bridge (below the deck level) and AB3 (above the deck level). The lowest compressive forces are obtained for AR3 bridge. In a similar situation, the analysis of the compressive forces of the tower legs for the tallest bridges shows variations of the maximum values with negligible differences below the deck level (see Fig. 3.28), and more important variations above the deck level (60 m). In this case, differences up to 93% can be found at the towertop. Below the deck level, maximum compressive forces are obtained for AB2 bridge, and minimum compressive force for AB4 bridge, on the contrary above the deck level, for which the maximum compressive forces are obtained for AB4 bridge, and the minimum values for AR4 bridge. The above mentioned implies that distribution of the seismic compressive forces depends on the deck level, with more important differences above that level. In this sense, axial forces on AB1 bridge are higher than axial forces on AR1 bridge; axial forces on AB3 bridge are higher than forces on AR3 bridge; axial forces on AB2 bridge are higher than that of AR2 bridge; and axial forces on AB4 bridge are higher than that of AR4 bridge above the deck level. As a conclusion, in general terms bridges with fan pattern show an increase of the seismic axial forces of the towers compared with the harp pattern. On the other hand, not important conclusions can be formulated with regard to the influence of the stay spacing on the compressive forces of the towers.
Fig. 3.27 Envelope of Maximum Seismic Compressive Forces for 81 mHeight Towers
Fig. 3.28 Envelope of Maximum Seismic Compressive Forces for 111 mHeight Towers
Of course, maximum compressive forces of the towers are obtained at their bases, with maximum average values of 90 MN and 158 MN for the 81 mheight towers and 111 mheight towers respectively. Figs. 3.29 and 3.30 show a comparison for compressive forces between the service loading condition and the seismic condition for the extreme cases AB1 and AR4. In these plots, it is clear the influence of the vertical component of the seismic motion on the axial forces of the tower legs, below the deck level, and mainly on AR4 bridge. In both situations, an increase of the maximum compressive forces of about 40% can be obtained, comparing the seismic and service loading cases.
The seismic analysis of the decks shows a similar distribution of the axial forces regarding the analysis under service loads. In fact, in both situations maximum compressive forces occur at the towerdeck connection, as can be appreciated in Figs. 3.31 to 3.34. Fig. 3.31 exposes the envelope of axial forces of the decks associated to bridges AB1, AB3, AR1 and AR3 (bridges with the shortest towers), as well as Fig. 3.32 exposes the envelope of axial forces of the decks for the rest of the cases.
Fig. 3.29 Envelope of Maximum Tower Axial Forces for AB1 Bridge
Fig. 3.30 Envelope of Maximum Tower Axial Forces for AR4 Bridge
Fig. 3.31 Envelope of Seismic Axial Forces for Decks – 81 m TowerHeight
Fig. 3.32 Envelope of Seismic Axial Forces for Decks – 111 m TowerHeight
Maximum values of the compressive forces on the decks vary from 32 MN (AB3 bridge) to 48 MN (AR2 bridge), that is to say, with a difference of 33%. Those values are very high due to the fixed hinge condition of the towerdeck connection, and they are in accordance with the explanations given before, constituting a potential point for the location of additional energy dissipation devices. Likewise, for all cases, a tensionzone at the midspan of the decks can be appreciated, with values lower than 6 MN.
Some interesting appreciations can be formulated comparing the stay cable layout and the stay spacing with regard to the axial forces of the decks, according to Figs. 3.31 and 3.32. In general terms, axial forces on AR1bridge are higher than deck axial forces of AB1bridge; and axial forces of AR3 bridge are higher than axial forces of AB3 bridge. For bridges with 60 mdeck level, axial forces of AR2 bridge are higher than axial forces of AB2 bridge; and axial forces of AR4 bridge are higher than axial forces of AB4 bridge. This analysis implies that seismic axial forces of decks associated to bridges with harp pattern are higher than axial forces of decks for the fan pattern. In the same way, comparing the effect of the stay spacing, deck axial forces of AB1 bridge are higher than axial forces of AB3 bridge; axial forces of AR1 bridge are higher than axial forces of AR3 bridge; axial forces of AB2 bridge are higher than that of AB4 bridge; and finally, axial forces of AR2 bridge are higher than that of AR4 bridge, which implies that bridges with longer stay spacing show lower seismic axial forces for their decks. This situation is similar to the one observed for the static condition under service loads, and of course, this comparisons are only approaches, exposing a general tendency, as can be seen in Figs. 3.31 and 3.32. The highest axial forces for the decks are obtained for bridges AR1 and AR2, and the lowest axial forces correspond to bridges AB3 and AB4; that is to say, the worse condition for the axial forces of the decks are obtained with the harp pattern and the shortest stay spacing. As a comparison, Figs. 3.33 and 3.34 expose the envelope of axial forces taking into account the seismic and service loading cases, for two extreme conditions: bridges AB1 and AR4. It is easy to see that very important differences between both loading conditions can be observed, with differences in their maximum values up to 33% (AB1 bridge) and 28% (AR4 bridge). In this sense, and comparing with axial forces of the towers, more important differences on the determination of the maximum seismic axial forces are obtained for the tower legs.
Fig. 3.33 Response Comparison for Axial Forces – Deck of AB1 Bridge
Fig. 3.34 Response Comparison for Axial Forces – Deck of AR4 Bridge
Plots of bending moments are more complex and it can be not very clear to superimpose those diagrams. For that reason, inplane bending moments of decks and towers for each bridge were represented separately, as can be seen in Figs. 3.35 and 3.36. The analysis of bending moments for the towers shows a similar behaviour for all cases. As usually happens, maximum bending moments were obtained at the base of the tallest towers, with maximum moments varying from 403 to 496 MN.m (AR4 bridge), which means a difference of 19%. For the case of 81 mtower height, maximum bending moments of the towers vary from 178 MN.m (AR1 bridge) to 337.6 MN.m (AB1 bridge), which implies a difference of 48%. Comparing the effect of the stay cable layout on the bending moments of the towers, maximum tower moments of AB1 bridge are higher than maximum tower moments of AR1 bridge; maximum moments of AB3 bridge are higher than moments of AR3 bridge; maximum moments of AB2 bridge are higher than that of AR2 bridge; however, maximum moments of AB4 bridge are lower than that of AR4 bridge. According to the previous ideas, it seems to be that maximum tower bending moments for bridges with fan pattern are higher than maximum tower bending moments for bridges with harp pattern.
Regarding the influence of the stay spacing on the tower bending moments, it is easy to see that maximum tower moments of AB1 bridge are higher than maximum tower moments of AB3 bridge; maximum moments of AB2 bridge are higher than maximum moments of AB4 bridge; however, maximum moments of AR1 bridge are lower than that of AR3 bridge; and maximum moments of AR2 bridge are lower than that of AR4 bridge. This behaviour implies that for fan pattern bridges, an increase of the stay spacing decreases the maximum tower bending moments, on the contrary of the harp pattern, for which an increase of the stay spacing implies an increase of the maximum bending moments of the towers.
(a) Tower moments of AB1 bridge
(b) Deck moments of AB1 bridge
(c) Tower moments of AB3 bridge
(d) Deck moments of AB3 bridge
(e) Tower moments of AR1 bridge
(f) Deck moments of AR1 bridge
(g) Tower moments of AR3 bridge

(h) Deck moments of AR3 bridge
The analysis of inplane deck bending moments shows a comparable behaviour depending on the stay spacing. Because of the longer stay spacing of bridges with hollow boxtype deck, higher deck moments are obtained in this situation. In the seismic case, maximum deck bending moments occur in the central area of the main span, with an important modification of the curvature that makes significant variations of the moments. They are followed close by very high moments near the deckends, on the contrary of the static condition under service loads, for which maximum deck moments occur at the towerdeck connection.
The seismic response for decks with the longest stay spacing shows a more uniform distribution of the deck moments compared with bridges with the shortest stay spacing, for which maximum moments near the midspan and near the deckends are very concentrated. For the longest stay spacing, maximum deck moments vary from 45.6 MN.m (AR4 bridge) to 62.2 MN.m (AB3 bridge), which implies a difference of 27%. For the shortest stay spacing, maximum deck moments vary from 7.5 MN.m (AR1 bridge) to 10.8 MN.m (AB1 bridge), which implies a difference of 30%, that is to say, the same magnitude order for moment difference can be obtained. The influence of the stay cable layout on the seismic response of the decks, shows for 6.2 m stay spacing, that maximum deck moment of AB1 bridge is higher than maximum deck moment of AR1 bridge; and maximum deck moment of AB2 bridge is higher than that of AR2 bridge. For 12.4 m stay spacing, maximum deck moment of AB3 bridge is higher than that of AR3 bridge; and maximum deck moment of AB4 bridge is higher than moment of AR4 bridge.
(a) Tower moments of AB2 bridge
(b) Deck moments of AB2 bridge
(c) Tower moments of AB4 bridge

(d) Deck moments of AB4 bridge

(e) Tower moments of AR2 bridge

(f) Deck moments of AR2 bridge

(g) Tower moments of AR4 bridge

(h) Deck moments of AR4 bridge

As a conclusion, maximum deck moments for the fan pattern are higher than maximum deck moments for bridges with harp pattern. Comparing the influence of the deck level on the seismic moments of the decks, maximum deck moment of AB1 bridge is higher than that of AB2 bridge; maximum deck moment of AB3 bridge is higher than moment of AB4 bridge; maximum deck moment of AR3 bridge is higher than that of AR4 bridge; however maximum deck moment of AR1 bridge is lower than maximum moment of AR2 bridge. It seems to be that bridges with the lowest deck level show higher maximum bending moments of the decks.
As a summary, Tables 3.19 and 3.20 expose maximum static (service loads) and seismic displacements as well as maximum main forces for each bridge respectively. Location of the control points for displacements is represented in Fig. 3.14, with the same parameters of Table 3.8, plus Δ_{3T} (maximum transverse displacement at the midspan). The explanations of the parameters of the maximum main forces are the same considered in Table 3.9.
BRIDGE  ∆_{1L}^{a}  ∆_{1T}  ∆_{3V}^{b}  ∆_{3T}  ∆_{4L}^{a}
Stat  Seis  Stat  Seis  Stat  Seis  Stat  Seis  Stat  Seis
AB1  0.38  29.7  0.40  28.9  1.55  15.8  0.00  51.2  1.83  17.5
AB2  0.30  40.9  0.16  32.3  1.51  14.1  0.00  62.9  1.88  28.3
AB3  0.05  32.7  0.35  28.7  1.41  13.2  0.00  51.5  1.57  17.2
AB4  0.03  43.0  0.14  27.6  1.55  12.0  0.00  59.1  1.59  27.5
AR1  0.00  27.8  0.02  21.3  0.45  12.1  0.00  44.0  2.11  20.4
AR2  0.52  41.2  0.03  33.9  1.59  15.0  0.00  57.9  2.13  26.0
AR3  0.13  28.6  0.01  29.7  0.11  18.0  0.00  48.0  1.92  16.7
AR4  0.02  42.6  0.04  33.1  0.28  15.5  0.00  59.4  1.97  27.1
^{a} Positive value implies a displacement toward the midspan
^{b} Negative value implies a descending
From Table 3.19, it is interesting to observe that maximum seismic displacements correspond to transverse deflections of the deck at the midspan, with values that range between 44 and 63 cm. Of course, those maximum transverse displacements are associated with the highest deck level, and are difficult to control due to the flexibility of the bridges in that direction. The deflection analysis of the towers shows values of the maximum displacements in the same magnitude order for the longitudinal and transverse direction. Those displacements are slightly minor in the transverse direction. Regarding the longitudinal seismic displacements at the deckends, maximum value corresponds to AB2 bridge (28.3 cm); and the minimum displacement corresponds to AR3 bridge (16.7 cm), which implies a difference of 41%. Seismic displacements are 12 times the static displacements (average), which can be adequately controlled with the addition of fluid viscous dampers. Likewise, in general terms, maximum longitudinal displacements at the deckends for the fan pattern are longer than that of the harp pattern.
From Table 3.20, maximum inplane tower bending moments were obtained considering the earthquake acting in the longitudinal direction, and of course, inplane bending moments are lower when the earthquake acts in the transverse direction. In this sense, analysis of outofplane tower seismic moments shows that tower moments when the earthquake acts in the transverse direction are lower than inplane tower moments when the earthquake acts in the longitudinal direction, which implies that the worse analysis condition corresponds to the earthquake acting in the longitudinal direction. Maximum outofplane tower moments were obtained for bridges AB4 and AR2 (347.8 MN.m and 347.9 MN.m respectively); and minimum outofplane moments were obtained for AR1 bridge (186 MN.m). Comparing inplane and outofplane tower moments, it is easy to see that inplane bending moments are larger than outofplane moments; and differences between inplane and outofplane tower moments vary from 7% (AR1 bridge) to 35% (AB3 bridge) . These conclusions implies that seismic design of the structural elements are governed by inplane internal forces, and for that reason, only longitudinal seismic effects are considered in this part of the investigation.
BRIDGE  N_{maxtower}^{a} [kN  N_{maxdeck}^{b}[kN]  N_{maxcable} [kN]  M_{maxtower}^{a, d} [MN.m]  M_{maxtower}^{e} [MN.m]  M_{maxdeck}^{d} [MN.m]  Base Shear (kN)
Stat  Seis  Stat  Seis  Stat  Seis  Stat  Seis  Stat^{f}  Seis^{a}  Stat^{b}  Seis^{c}
AB1  57200  93500  25200  37400  4800  11600  18.0  337.6  8.15  197.3  1.58  10.8  57600
AB2  101200  161500  25500  38000  4950  11500  21.2  491.0  10.81  332.6  1.38  9.33  52250
AB3  52900  88600  22100  31800  5630  9090  15.7  301.5  7.50  195.9  13.3  62.2  56970
AB4  97000  153600  22400  31700  5770  9100  18.3  465.0  9.09  347.8  12.9  53.6  48360
AR1  52900  91400  36400  46700  1560  5260  11.0  200.0  6.55  186.0  3.94  7.50  40000
AR2  97000  158000  36900  47900  1790  6370  23.0  438.8  9.72  347.9  3.81  9.20  53670
AR3  51300  88300  32000  45500  2700  4660  19.5  287.2  6.36  204.2  22.9  53.1  59560
AR4  95300  158200  32500  43200  2820  5000  23.5  496.0  8.67  340.8  22.2  45.6  52140
^{a} At the tower base ^{c} Near the midspan ^{e} Outofplane
^{b} At the towerdeck connection ^{d} In the bridge plane ^{f} At the upper strut level
 Implies compression
The analysis of cable forces in Table 3.20 shows that maximum tension forces correspond to bridges with fan pattern (for both loading conditions). Likewise, comparing bridges AB1 with AB3, AB2 with AB4, AR1 with AR3 and AR2 with AR4, it is easy to see, for the seismic condition of the maximum cable forces, that an increase of the stay spacing involves a decrease of the maximum cable forces. An opposite and intuitive situation occurs for the static condition under service loads, for which an increase of the stay spacing involves an increase of the maximum cable forces. The above mentioned implies that the worse seismic condition for the maximum stay cable forces, occurs on bridges with fan pattern and short stay spacing. Moreover, it is interesting to observe the tremendous difference between the maximum bending moments of the towers for both loading conditions. Those differences can be more than 23 times the static condition under service loads, especially for the tallest towers.
The information previous exposed can be confused in order to make a decision regarding the best geometric parameters or the best configurations that minimize the seismic response of the bridge models. The influence of the analyzed parameters can be summarized in Table 3.21, which shows the best configurations of the cablestayed bridges only taking into account the seismic response of such structures applying the response spectrum method under strong ground motion. The most decisive response parameters include maximum displacements of the towers and decks; maximum axial forces of towers, decks and cables and maximum bending moments of towers and decks. As a result, Table 3.21 shows that reduction of vertical displacements of the deck can be better controlled by using bridges with fan pattern, and especially with high deck level. Longitudinal displacements of the towers are lower by using bridges with the shortest towers and the shortest stay spacing; and the longitudinal displacements of the deck are better controlled by using bridges with low deck level. In general terms, the bridge with the fan pattern cable layout, lowest deck level and shortest stay spacing (AB1 bridge) is a good choice to reduce displacements; however it is not a good selection to control the internal forces.
Regarding the reduction of internal forces, it is clear that the best option is the harp pattern, with the exception of the deck axial forces, for which fan pattern bridges with the longest stay spacing seems to be more adequate. Tower and deck bending moments are better controlled by using the harp pattern with the shortest stay spacing; and the cable forces are lower using the harp pattern with the longest stay spacing. A good choice to reduce both internal forces and displacements is the AR1 bridge, that is to say, a harp pattern bridge, with the shortest stay spacing and deck level. According to this simplified analysis, the worse conditions are obtained with the fan pattern bridges, and especially the AB2 and AB4 bridges, which consider the highest deck level. Of course, because of the complex nature of the seismic phenomena, it is very difficult to reduce displacements and internal forces at the same time, and for that reason, these recommendations are only general guidelines. An only optimal solution does not exist, and this selection necessarily depends on the specific requirements of the bridge prototype. For this reason, the aim of this comparative analysis is to show some results regarding the incidence of some parameters associated with the geometric configuration of the structures on the seismic response of the bridges.
BRIDGE  Displacements  Internal Forces
∆_{3V}  ∆_{1L}  ∆_{4L}  N_{maxtower}  N_{maxdeck}  N_{maxcable}  M_{maxtower}  M_{maxdeck}
AB1  good  good  good  good
AB2  very good  good
AB3  good  good  very good
AB4  very good  very good
AR1  good  good  good  good  Very good  very good
AR2  good  good  good  Very good  very good
AR3  good  good  very good  good  good
AR4  good  good  very good  good  good
In order to investigate if static variations of the stay prestressing forces of cablestayed bridges are important regarding their seismic response, two bridge models were considered to simulate this effect. AB1 and AR4 bridges were employed in this study, because they are representative of extreme cases of all the analyzed bridges in this work.
For the static variation of the stay prestressing forces, two extreme conditions were considered: an original load condition, where the cable forces were directly obtained from the nonlinear static analysis under service loads; and the second condition, here called optimal load condition, where a rectification of the back stay forces was introduced to minimize values of longitudinal displacements of the towertop, and the vertical displacements of the deck at the midspan. This correction was carried out applying an iterative procedure in which the cable forces were gradually increased, controlling the displacements of the structures. As a result, an increase of 20% for the back stay forces of the cables C1, C2 and C3 (AB1 bridge), and an increase of 12% for all the back stay forces of AR4 bridge were applied. Table 3.22 summarizes this idea.
The input ground motion is characterized by use of the response spectrum method defined by Eurocode 8 [CEN, 1998a, 1998b]. Although this procedure, on the basis of a performed modal analysis, can be questionable due to the supposed linearity involved in this strategy, here, with the aim to compare results of the static and dynamic structural analysis and to obtain maximum values for the seismic response of the structures, it is adequate to employ this method. In fact, in this case, conclusions taken from a time history analysis can be difficult to obtain, and strongly dependent on the considered earthquake database, being confused in the present analysis. Likewise, as a consequence of the elastic response of those structures this strategy is preferable.
Bridge  Stay Prestressing Forces [kN].
(a) AB1 Original Load Condition
C1  C2  C3  C4  C5  C6  C7  C8  C9
4635  1460  1330  1220  1160  1100  1000  960  900
C10  C11  C12  C13  C14  C15  C16  C17  C18
850  800  760  710  780  490  490  780  710
C19  C20  C21  C22  C23  C24  C25  C26  C27
760  800  850  900  960  1020  1090  1160  1240
C28  C29  C30  C31  C32
1300  1400  1470  1600  1600
(b) AB1 – Optimal Load Condition
C1  C2  C3  C4  C5  C6  C7  C8  C9
5560  1750  1600  1220  1160  1100  1000  960  900
C10  C11  C12  C13  C14  C15  C16  C17  C18
850  800  760  710  780  490  490  780  710
C19  C20  C21  C22  C23  C24  C25  C26  C27
760  800  850  900  960  1020  1090  1160  1240
C28  C29  C30  C31  C32
1300  1400  1470  1600  1600
(c) AR4 – Original Load Condition
C1  C2  C3  C4  C5  C6  C7  C8  C9
2570  1970  2790  2930  2850  2630  2000  760  890
C10  C11  C12  C13  C14  C15  C16
2000  2580  2760  2800  2700  2600  2300
(d) AR4 – Optimal Load Condition
C1  C2  C3  C4  C5  C6  C7  C8  C9
3080  2200  3120  3280  3190  2950  2240  850  890
C10  C11  C12  C13  C14  C15  C16
2000  2580  2760  2800  2700  2600  2300
The models were analyzed for each load condition, in which the components of the seismic action were combined with the permanent loading applying the directional combination according to Eurocode 8 (30% rule), that is to say, to add the earthquake input, 100% of one component was added to 30% of the other components of the seismic action and considering all possibilities. The modelling and the static and dynamic analyses were carried out applying the code RAM advanse [RAM International, 2003] considering the required modes to reach over 90% of the effective translational mass. The modal analyses were performed applying the Ritz Vector Analysis; and due to the strong modal coupling that cablestayed bridges experience, CQC modal combination rule was applied.
Results of the analyses showed that longitudinal displacements of the towers are similar for both conditions, with the maximum at the top for the original load condition. [Figs. 3.37 and 3.38]. Of course, maximum longitudinal displacements for the towers occur for the tallest bridge (AR4 bridge). With regard to the vertical displacements of the decks, the deformed shape is quite different if we compare AB1 bridge with AR4 bridge. For AB1 bridge, maximum vertical deflection occurs near the mid span, as long as for AR4 bridge maximum vertical deflection occurs of about ¾ of the mid span [Figs. 3.39 and 3.40]. These differences come from the incidence of the stay cable layout and from differences in the stay spacing.
Considering the internal forces, plots for axial forces and bending moments were obtained from the dynamic analyses considering the original and optimal load conditions. Figs. 3.41 to 3.44 show a comparison for the compressive forces of the towers and axial forces of the decks. Because of the differences in the variation of the stay prestressing forces for bridges AB1 and AR4, it is not possible to compare differences for displacements and internal forces between those structures. However, it is easy to see that for both bridges, differences regarding the longitudinal displacements and axial forces of the towers are negligible, and more important differences can be found for vertical displacements and axial forces of the decks. For both bridges and for both load conditions, maximum axial forces on the decks (compression) occur in the vicinity of the towerdeck connection, with very high values, as usually happens on cablestayed bridges with fixed hinge connection between the deck and the tower.
Fig. 3.37 Longitudinal displacements of the tower –AB1 Bridge
Fig. 3.38 Longitudinal displacements of the tower –AR4 Bridge
Fig. 3.39 Vertical displacements of the deck –AB1 Bridge
Fig. 3.40 Vertical displacements of the deck –AR4 Bridge
For bending moments, because of the complexity of such plots, it is preferable to show them separately, that is to say, for each load condition and for each bridge, as can be seen in Figs. 3.45 and 3.46. Differences for the maximum values of the tower moments are negligible for both bridges [Figs. 3.45(a) and 3.45(b); Figs. 3.46(a) and 3.46(b)].
The shape of the plot for the bending moments of the deck is very different between AB1 bridge and AR4 bridge. In both situations, maximum values occur near the mid span or near the deckends, with very high values for AR4 bridge [Figs. 3.45(c) and 3.45(d); Figs. 3.46(c) and 3.46(d)]. These differences mainly come from differences in the stay spacing. Likewise, not very important differences are obtained comparing the maximum bending moments for both load conditions.
As a summary, for both structures, maximum differences of the measured displacements were obtained for the vertical deflections of the deck, and the maximum differences of the measured internal forces were obtained for the axial forces of the deck, followed by maximum bending moments of deck and towers.
Fig. 3.41 Compressive forces of the tower –AB1 Bridge

Fig. 3.42 Compressive forces of the tower –AR4 Bridge

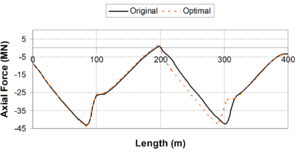

Fig. 3.43 Axial forces of the deck –AB1 Bridge
Fig. 3.44 Axial forces of the deck –AR4 Bridge
(a) Bending moments of the towers – original load condition
(b) Bending moments of the towers – optimal load condition
(c) Deck bending moments – original load cond.
(d) Deck bending moments – optimal load cond.
The maximum seismic response of the bridges for the original and optimal load conditions is summarized in Tables 3.23 and 3.24. M_{max1} corresponds to the maximum inplane bending moments of the deck at the mid span; M_{max2} are the maximum inplane bending moments at the deckends; M_{max3} are the maximum inplane bending moments of the tower legs in the longitudinal direction (that occurs at the base level); N_{max1} corresponds to the maximum compressive force of the deck (that occurs in the towerdeck connection) and N_{max2} is the maximum compressive force of the tower legs (that occurs at the base level). In the same way, Δ_{1}corresponds to the vertical displacement of the deck at the mid span; Δ_{2}is the longitudinal displacement of the deck at the mid span; Δ_{3} is the transverse displacement of the deck at the mid span; Δ_{4} corresponds to the longitudinal displacement at the deckends; Δ_{5} is the longitudinal displacement of the towertop and Δ_{6} is the transverse displacement of the towertop.
(a) Tower bending moments – original load cond.
(b) Tower bending moments – optimal load cond.
(c) Deck bending moments – original load cond.
(d) Deck bending moments – optimal load cond.
Original Load Condition  M_{max1}  M_{max2}  M_{max3 }  N_{max1}  N_{max2 }  Base Shear
10.7  10.5  336  37.1  93.4  57.6
Δ_{1}  Δ_{2}  Δ_{3}  Δ_{4}  Δ_{5}  Δ_{6}
19.3  15.5  51.2  17.5  31.4  28.9
Optimal Load Condition  M_{max1}  M_{max2}  M_{max3 }  N_{max1}  N_{max2 }  Base Shear
10.8  10  337.6  37.4  93.5  57.6
Δ_{1}  Δ_{2}  Δ_{3}  Δ_{4}  Δ_{5}  Δ_{6}
15.8  15.5  51.2  17.5  29.7  28.9
Original Load Condition  M_{max1}  M_{max2}  M_{max3 }  N_{max1}  N_{max2 }  Base Shear
44.8  43  490  42.4  158.2  54
Δ_{1}  Δ_{2}  Δ_{3}  Δ_{4}  Δ_{5}  Δ_{6}
5.7  25.1  61.1  27.1  44.0  32.6
Optimal Load Condition  M_{max1}  M_{max2}  M_{max3 }  N_{max1}  N_{max2 }  Base Shear
45.6  40.3  496  43  158.2  54
Δ_{1}  Δ_{2}  Δ_{3}  Δ_{4}  Δ_{5}  Δ_{6}
3.5  25.1  61.1  27.1  42.7  32.6
Displacements in cm; forces in MN; moments in MN.m
If the average variation of the seismic response is now computed for the bridges AB1 and AR4, the graphs plotted in Fig. 3.47 are obtained.

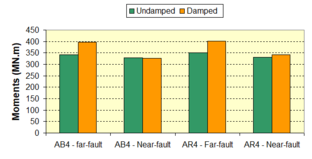

Fig. 3.47 Average Variation of the Seismic Response

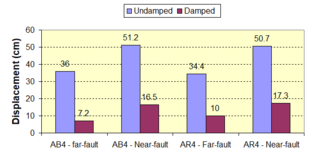

According to Fig. 3.47, average variations of the axial forces in the order of 0.3% (tower legs of AB1 bridge); 9.7% (deck of AB1 bridge); 2.2% (tower legs of AR4 bridge) and 12% (deck of AR4 bridge) can be found. Average variations of the bending moments on AB1 bridge are in the order of 5.5% for the towers, and 4.8% for the deck. A similar condition can be found for AR4 bridge, with main differences for bending moments of about 8% (towers), and 10% (deck).
For the displacements, average differences in the order of 1.8% (tower legs of AB1 bridge); 9% (deck of AB1 bridge); 1.3% (tower legs of AR4 bridge) and 7.5% (deck of AR4 bridge) are obtained.
As a conclusion, this study shows that lowtomoderate variations of the stay prestressing forces on cablestayed bridges imply low variations of the seismic response. These variations of the seismic response are not very different if the stay cable layout, stay spacing or deck level is changed, and only specific differences regarding the shape of the internal forces or displacements can be found, and specially for the deck. The main variations of the seismic response come from the vertical deflections and internal forces of the deck, as long as variations for the seismic response of the towers are less sensitive, especially the longitudinal displacements and axial forces.
All the subsequent analyses consider the application of stepbystep strategies to solve the cablestayed bridge models of this work, considering that nonlinear direct integration time history analysis is the best alternative to accurately represent the complex nature of such structures. The structures are solved using the code SAP2000 [Computers & Structures, 2007], considering all the nonlinearities available and previously explained. In spite of the tremendous computational effort involved, this methodology is the best suitable, and application of the HilberHughesTaylorα integration procedure seems to be more adequate [Hilber et al, 1977], according to the explanations of Appendix A.
Response spectrum analysis of the bridge models left clear that the largest displacements are obtained with the highest deck level, and the worse condition for the internal forces is obtained with the fan pattern bridges. Although the modal analysis of the bridges showed that higher order modes can be important especially on bridges with low deck level, structures with high deck level may experience important geometric nonlinear effects, especially large nonlinear axial force – bending moment interaction for the tower and longitudinal girder elements as well as large nonlinear behaviour due to the geometric change caused by the large displacements on the whole structure. On the other hand, the deck level is generally conditioned by functional aspects, constituting a geometric parameter that cannot be modified. For those reasons, the worse condition occurs with bridges with high deck level, and only those structures are considered in the subsequent analyses. Even through the effect of the stay spacing can be important, the response spectrum analysis gave a good idea about the incidence of this parameter on the seismic response of the bridge models, and it is not necessary to consider its variation during the nonlinear time history analysis. Thus, according to the above explained and in order to avoid the large information generated and the excessive computer effort due to the application of the nonlinear time history analysis if all cases are considered, only two models are studied: bridges AB4 and AR4, that is to say, fan and harp pattern bridges with 12.4 mstay spacing (hollow box type deck) and 60 mdeck level. Those structures are considered as critical, especially the AB4 model. Although AR4 bridge seems to be not very critical, its consideration permits an adequate analysis between fan and harp pattern layouts. Moreover, those structures contain less joints and elements than the other models, reducing the computer time that can be crucial in a nonlinear time history analysis. In some sense, influence of the bridge configuration on the seismic response was analyzed applying the response spectrum method. Thus, the next pages are focused on the nonlinear seismic response of the bridges for different input ground motion typologies, and taking into account the stay cable layout, with and without the incorporation of additional energy dissipation devices.
The geometry, structural modelling, mechanical properties, material data as well as the loads and analysis cases were well explained. Now, the seismic input is considered by use of acceleration time histories and taking into account the largest spectral velocity of each event in the period range of interest, applied to the principal direction of the structures as measure of the seismic hazard, in order to consider the velocitysensitivity of the bridge models. The complex damping mechanism is simplified here and considered as only dependent on the modal shapes, according to Kawashima and Unjoh (1991). In this sense, proportional damping to stiffness and mass is considered in the direct integration analysis (Rayleigh’s damping), that is to say, , in which C is the damping matrix, M is the mass matrix, K is the stiffness matrix, α is the mass proportional coefficient, and β is the stiffness proportional coefficient. For the selected bridges, α = 0.0734 and β = 0.000513 values were used.
For the stepbystep integration of equations of motion, 20 analysis cases involving more than 13 hours of computer time for the farfault analysis, and more than 48 hours of computer time for the nearfault analysis were required. An estimation of more than 120 hours of computer time including trialanderror tests, parameter adjusts and convergence trials were necessary for successful and accurate results. Although the HilberHughesTaylorα method is unconditionally stable for linear analysis, in the case of the selected models sometimes the convergence was difficult, and a lot of errorandtrial tests were necessary to reach an adequate convergence. In this sense, the farfault analysis was easier, with the exception of some analysis cases for AR4 bridge. For the case of the nearfault analysis, the convergence is more complicated, aspect that is reflected in the enormous computer time required, because of the modifications necessary in the convergence parameters. Those experiences reflect the highly nonlinear behaviour of the models and the strong incidence of the longperiod velocitypulses of the nearfault ground motions, aspect enlarged in Appendix A. In a recent publication, Chen and Ricles (2008b) expose the stability conditions of direct integration algorithms for nonlinear analysis.
In order to control the convergence of the models, several time integration parameters were taken into account. The numerical damping of the HilberHughesTaylorα method was selected as 0.2 for all the analysis cases. This value adequately controls the instability due to the high frequency content, with an acceptable accuracy. To control the iteration and substepping process, some important parameters were considered. The maximum substep size reflects the upper limit on the step size used for integration. The minimum substep size limits the smallest substep size, in order to stop the analysis bellow this limit indicating that convergence has failed. The maximum iterations per substep controls the number of iterations allowed in a step before the use of smaller substeps, a number usually higher for the analysis of cable structures. The iteration convergence tolerance compares the magnitude of force error with the magnitude of the force acting on the structure to guarantee that equilibrium is achieved at each step of the analysis, a value that usually decreases when largedisplacement effects are considered. Anyway, for all the analysis cases in this work, timestep size of 0.02 sec was employed.
In order to consider different characteristics of the input ground motions in this research, earthquake records were divided into farfault and nearfault ground motions depending on the source distance. For the analysis, a collection of 10 earthquake records was selected as input ground motion considering three components for each one. The number of earthquake events was selected to take into consideration the average of the response parameter in the assessment of the structural response, and according to Eurocode 8, Part 1, a minimum of 5 accelerograms is necessary for each case. Because of the structures are founded on bedrock, time histories need to be recorded on rock or hard soil, and for that reason, soilstructure interaction is not considered here. Regarding the record selection and according to the previously exposed, a collection of 5 artificial accelerograms compatible with response spectra defined by Eurocode 8 Part 2, were generated in order to analyze the farfault effects. For nearfault ground motions, it is preferable to employ real acceleration records, because in this case that option may reflect in a better way the basic aspects of the complex nature of the nearsource effects, including the incidence of forward rupture directivity (velocity pulsetype earthquakes). In fact, nearfault effects cannot be adequately described by uniform scaling of a fixed response spectral shape; the shape of the spectrum must become richer at long periods as the level of the spectrum increases [Somerville, 1997]. Although there are some investigations about the formulation and application of nearfault design spectra, this strategy is not clearly defined for bridges, and a lot of uncertainties are involved. In this sense, the works of Li and Zhu (2003) and Akkar and Gülkan (2003) propose and explain the procedure for implementation of nearfault design spectra on building design codes. In this research, the record selection for nearfault ground motions was made choosing the current practice to carefully select records that reflect the expected magnitude, distance and other characteristics of the source of the events that are in some sense most likely to threaten the structure.
For farfault earthquakes, five collections of artificially generated accelerograms compatible with response spectra defined by Eurocode 8 [CEN, 1998a, 1998b] were considered. For an adequate 3D analysis both horizontal and vertical response spectra were generated considering the structures founded on bedrock, with effective ground accelerations of 0.5g (horizontal) and 0.35g (vertical), characteristic of strong ground motions. As a second stage, synthetic accelerograms compatible with those response spectra were generated applying the code SIMQKE1 [Gasparini and Vanmarcke, 1976]. This software computes a power spectral density function from a specified smooth response spectrum and generates artificial acceleration time histories which match a specified response spectrum and it refines the spectral match through an iterative procedure based on the fact that any periodic function can be represented by sinusoidal waves, in which the obtained records are nonstationary in intensity but stationary in frequency spectrum. All the generated time histories consider a magnitude M_{S} = 7.0, 1.7% critical damping ratio and 0.02 sec timestep size. This value of magnitude is representative for strong earthquakes, as long as the chosen value for the critical damping ratio was taken from the modal analysis of the bridges, in which the longitudinal and transverse bending of the decks of the bridges govern. Taking into account that the seismic hazard for longperiod structures, such as those proposed here, can be better represented by the spectral velocity in addition to the magnitude and effective duration (obtained from Arias Intensity of the time histories), different conditions were proposed, in which the considered closest distance to the fault rupture were 30, 45, 60, 90 and 120 km, and taking into account that an increase of the source distance implies an increase of the effective duration of the strong motion. Of course, from one target horizontal response spectrum, two artificial earthquakes were obtained, for each horizontal component. By this way, different horizontal time histories were obtained, and the corresponding vertical components were obtained considering the same parameters and the respective vertical response spectrum, in order to generate for each earthquake event, two horizontal components and the respective vertical one.
For all cases, a trapezoidal intensity envelope was used, in which the earthquake level time of the intensity envelope was associated with the effective duration, predefined using empirical formulation, and then checked with the values of the Arias Intensity of the records. When synthetic accelerograms are obtained, a baseline correction is performed for each record, applying a linear polynomial formulation using the code SeismoSignal V.3.2.0 [Seismosoft, 2006].
For nearsource ground motions, threecomponent real acceleration time histories were selected. Selection criteria of the earthquakes considered strong ground motions recorded on rock or hard soil with source distances up to 10 km and M_{w} > 6.0. In order to take into account time histories with the inclusion of forward rupture directivity pulse effects, recommendations of Somerville (1997, 2002 and 2003), Cox and Ashford (2002) and Akkar and Gülkan (2003) were considered. In this sense, it is important to select time histories which appropriately include rupture directivity effects, because this aspect is very important if nearsource earthquakes are considered. In fact, earthquake events with less than 15 km source distances not necessarily include velocity pulses, that is to say, forward rupture directivity pulse effects; and for that reason it is important to select an appropriate proportion of time histories that include these effects if time histories represent the response spectrum. Because of the most important limitation is the relatively limited amount of seismic recordings including longperiod velocitypulses, selection of time histories considering nearfault effects is restricted. While seismographs and seismic recordings have been in place for many years, the development of strong motion seismographs is a relatively recent event, with instruments able to accurately record ground accelerations approaching or surpassing the acceleration of gravity. Because of the high cost of large instalment of these instruments, the inability to predict time, location and rupture zone as well as difficulties with maintenance, recorded events considering nearfault effects is scarce [Cox and Ashford, 2002]. In the present research, all the nearsource events contain velocity pulses, and their selection was taken from catalogues of nearfault earthquakes from Cox and Ashford (2002), Somerville (2003) and Akkar and Gülkan (2003). The selected earthquakes are: Landers, Lucerne station (06/28/1992, M_{w} = 7.3); Loma Prieta, Los Gatos Pres. Center station (10/18/1989, M_{w} = 6.9); Loma Prieta, Lexington Dam station (10/18/1989, M_{w} = 6.9); Kobe, JMA station (01/16/1995, M_{w} = 6.9) and San Fernando, Pacoima Dam Abut. station (02/09/1971, M_{w} = 6.6). All the acceleration records were obtained in the form of [.txt] files from Pacific Earthquake Engineering Research Center (2005). The acceleration time histories were adjusted to 0.02 sec timestep size and then typically filtered using highpass, lowpass or bandpass Butterworthtype filters, depending on the specific record. To do that, the free software SeismoSignal [Seismosoft, 2006] was applied. Likewise, acceleration time histories were corrected by baseline using linear polynomialtype correction. It is important to say, as was previously explained, that nearfault acceleration time histories were not scaled to some common level in order to avoid some uncertainties involved with this procedure [Somerville, 1997]. Because of the nearsource effects imply velocity pulses at specific frequency bands, it is not recommendable to scale acceleration time histories. That is the best way to reproduce the complex nature of the nearsource effects. After the correction of the acceleration records, velocity and displacement time histories were obtained.
As a brief summary, Tables 3.25 and 3.26 expose the main ground motion parameters of the considered events for both farfault and nearfault earthquakes. M_{S} and M_{W} are the surface wave magnitude and moment magnitude respectively.
Table 3.25 Ground Motion Parameters for FarFault Events

R_{e} is the closest distance to the fault rupture surface; t_{e} is the effective duration of the strong motion (obtained using the Arias Intensity of the earthquake events) and PGA, PGV and PGD are the peak ground acceleration, velocity and displacement respectively. All these ground motion parameters were obtained using the code SeismoSignal [Seismosoft, 2006].
Analyzing the farfault ground motion parameters, it is easy to see that the effective duration increases as the closest distance to the fault rupture increases. PGV values are similar from one event to another, with more important differences for PGD values. Average values for PGV are in the order of 0.46 m/sec and 0.22 m/sec for horizontal and vertical components respectively. Likewise, average values for PGD of 0.27 m and 0.15 m, associated with horizontal and vertical components are obtained respectively.
EVENT  Station  Mw  Re (Km)  Component  te (sec)  PGA (g)  PGV (m/sec)  PGD (m)
260º  13.10  0.67  0.95  0.67
Landers 06/28/1992  Lucerne  7.3  2.2  345º  13.80  0.78  0.31  0.16
Up  13.00  0.71  0.37  0.16
0º  10.10  0.57  1.21  0.49
Loma Prieta 10/18/1989  Los Gatos Pres. Center  6.9  3.9  90º  7.80  0.52  0.54  0.19
Up  7.10  0.60  0.45  0.46
0º  4.20  0.40  0.59  0.16
Loma Prieta 10/18/1989  Lexington Dam  6.9  5  90º  4.00  0.50  0.72  0.22
Up  7.60  0.15  0.19  0.11
0º  8.30  0.76  0.85  0.16
Kobe 01/16/1995  JMA  6.9  0.96  90º  9.50  0.56  0.82  0.16
Up  9.60  0.34  0.37  0.10
164º  7.00  1.06  0.92  0.31
San Fernando 02/09/1971  Pacoima Dam Abut.  6.6  1.8  254º  7.30  1.14  0.53  0.10
Dwn  6.90  0.68  0.42  0.17
Regarding the nearfault ground motions, it is not certain that the effective duration increases as the closest distance to the fault rupture increases, as usually happens with farfault motions. Maximum values for PGA were obtained for San Fernando earthquake, with peaks larger than 1g for both horizontal components. In general terms, all the PGA peaks are larger than 0.4g for the horizontal components. Likewise, the vertical components are important, with values that can be larger than the horizontal components, as can be seen for the earthquakes of Landers and Loma Prieta, LGPC station. With regard to the PGV values, all pulses are larger than 0.7 m/sec, with maximum of 1.21 m/sec (Gatos). Peak ground displacements strongly depend on the earthquake event and component, with maximum value for the component 260º, Landers (0.67 m).
With comparative purposes, Figs. 3.48 and 3.49 expose horizontal elastic pseudovelocity response spectra associated to the strongest direction of each earthquake event. These components were selected applying the criterion of the largest spectral velocity component because, as was previously explained, for the period range of interest in this research, the structures can be more affected by velocity than acceleration; and the traditional application of the earthquake component with the highest PGA is not advisable. As can be checked, all these selected components of the earthquake events were applied to the longitudinal direction of the bridge models. Fig. 3.48 shows pseudovelocity response spectra for farfault earthquake events (artificially generated) including the pseudovelocity response spectrum corresponding to Eurocode 8, with 0.5geffective ground acceleration and critical damping ratio of 1.7%. Because of the artificial earthquakes were generated from the elastic acceleration response spectrum corresponding to Eurocode 8, an excellent corelation can be appreciated. In fact, for the period range of interest in this investigation, the pseudovelocity response spectrum of Eurocode 8 corresponds to the average pseudovelocity response spectra of the horizontal earthquake events. For periods larger than 4.5 sec, the pseudovelocity response spectra for all the earthquake events exceed the response spectrum of Eurocode 8.
In the same way, Fig. 3.49 shows a comparison between the horizontal elastic pseudovelocity response spectrum corresponding to Eurocode 8 (considering the same previously defined parameters) and the pseudovelocity response spectra associated to the selected nearfault ground motions. Nearfault pseudovelocity response spectra are associated to the horizontal strongest component of each earthquake event (largest spectral velocity in the period range of interest), as occurs for farfault ground motions. It is easy to see that for periods lower than 2 sec, all the spectral velocities exceed the spectral velocity of Eurocode 8, with the relative exception of Landers earthquake. For the period range of interest in this research (periods larger than 23 sec), some spectra exceed the response spectrum of Eurocode 8 (Loma Prieta – Gatos, Landers and San Fernando) and some spectra are below the response spectrum of Eurocode 8 (Kobe, Loma Prieta  Lexington); however, these last response spectra are the closest to the response spectrum of Eurocode 8. The event Loma Prieta – LGPC – 0º experiences the largest pseudovelocity response spectrum in the period range of interest and for that reason is considered the critical event.
Traditionally, the employ of the PGA or the effective ground acceleration as measure of the seismic hazard has been widely applied in the seismic analysis of structures, and worldwide implemented in the current seismic regulations. It is known that this approximation is inaccurate because additional parameters such as the frequency content, strong motion duration of the earthquake input and some additional parameters involved with the source can be important. The approximation of the PGA as measure of the seismic hazard sometimes works good mainly on shortperiod structures. However, in the case of longperiod structures this approximation can be wrong, and structures could be more affected by velocities or even displacements.

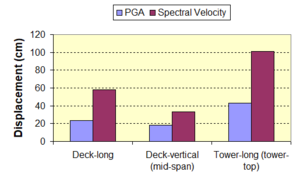

In order to expose the great differences that can occur if the PGA is applied as measure of the seismic hazard for longperiod structures, a brief comparison was performed. To do that, AB4 model was selected as longperiod reference structure. Two nearfault events containing longperiod velocitypulses were selected: San Fernando, Pacoima Dam Abut. Station (02/09/1971) and Landers, Lucerne Station (06/28/1992). The nonlinear analyses were performed applying stepbystep strategies as was previously explained. Figs. 3.50 and 3.51 show pseudoacceleration and pseudovelocity response spectra of the selected earthquake events, and Table 3.27 contains a summary of the main parameters of the earthquake inputs.
San Fernando earthquake shows important spectral accelerations in the period range of 0.2 – 0.5 sec, with the highest value for the component 164º. For periods longer than 1 sec, an important decrease of the spectral accelerations is experienced for all the components. With regard to the spectral velocities, important amplifications are experienced in the period range 0.4 – 2 sec for both horizontal components, and especially the component 164º.
The response spectra of Landers Earthquake (Fig. 3.51) show important amplifications of the acceleration spectra in the period range 0.1 – 0.2 sec, and an abrupt decrease of the spectral components for periods longer than 0.3 sec. The vertical component shows a very high peak (almost 5g), higher than the horizontal components, a characteristic that usually happens in the shortperiod range when nearfault earthquakes are considered [Button et al, 2002]. Velocity spectra show a very different behaviour, because important amplifications are present for periods longer than 3 sec, and especially the component 260º. As a summary, in the period range of interest for AB4 model (fundamental period of 2.8 sec), the horizontal components 164º (San Fernando) and 260º (Landers) of the velocity response spectra are interesting, showing the highest amplifications.
(a) Pseudoacceleration
(b) Pseudovelocity
(a) Pseudoacceleration
(b) Pseudovelocity
EVENT  Station  Mw  Re (Km)  Component  t (sec)  te (sec)  PGA (g)  PGV (m/sec)
260º  13.10  0.63  1.37
Landers 06/28/1992  Lucerne  7.3  2.2  345º  48  13.90  0.79  0.30
Up  13.00  0.71  0.41
164º  7.00  1.06  1.12
San Fernando 02/09/1971  Pacoima Dam Abut.  6.6  1.8  254º  42  7.30  1.16  0.54
Dwn  6.90  0.67  0.55
Mw: Moment magnitude; Re: Closest distance to the fault rupture; t: Duration of the event
te: Effective duration of the strongmotion; PGA: Peak ground accel. PGV: Peak ground vel.
Table 3.27 shows that both stations were very close to the fault rupture, with short effective durations of the strong motion (obtained here using the Arias intensity of the earthquake components). Important ground accelerations for all the components are appreciated, and especially for San Fernando event, with ground accelerations higher than 1.0g for the horizontal components. Important ground velocities are observed for the horizontal components, especially the components 260º (Landers) and 164º (San Fernando), coincidently with the components for which the maximum spectral velocities were observed. Those components experience ground velocities higher than 1 m/sec.
If the maximum horizontal PGA component is applied to the principal direction of the bridge, as traditionally happens in the current regulations, components 345º and 254º should be applied for the Landers and San Fernando events respectively, on the contrary of the case when the maximum spectral velocity components in the period range of interest are applied, resulting in different earthquake components to be applied to the principal direction of the bridge (components 260º and 164º for Landers and San Fernando events respectively). Figs. 3.52, 3.53 and 3.54 show comparative results for maximum responses of displacements, axial forces and moments respectively, and considering PGA and spectral velocities as measure of the seismic hazard. Results of this analysis are very clear. For both events, displacements obtained using the PGA are always lower than the case of the application of the spectral velocity, with differences that can be more than 3 times those obtained with the application of the PGA.
(a) Landers, Lucerne station
(b) San Fernando, Pacoima Dam Abut. station
(a) Landers, Lucerne station
(b) San Fernando, Pacoima Dam Abut. station
(a) Landers, Lucerne station
(b) San Fernando, Pacoima Dam Abut. station
With regard to the axial forces, differences between the application of the PGA and the spectral velocity are less evident than the case of the displacements. Response values obtained with the application of the PGA as measure of the seismic hazard are lower than the case of the application of the velocity spectra, with the exception of the compressive forces of the towers, because of the incidence of the vertical component of the seismic action. A similar condition is observed with the bending moments, with the exception of the maximum outofplane bending moments of the towers. On the other hand, comparing results between Landers and San Fernando events, many obtained responses are lower in the case of the San Fernando event despite the higher PGA values observed (Table 3.27), which confirms that PGA is not a good parameter for velocitysensitive structures.
By this way, these results show the importance of considering the spectral velocity as parameter of the seismic hazard, more than the application of the widely applied PGA value for longperiod structures. Application of the seismic components associated with the maximum horizontal spectral velocity in the period range of interest, can induce larger seismic responses than application of the maximum PGA, and for that reason those systems need to be considered as velocitysensitive, aspect that is taken into account in the subsequent analyses.
Investigations regarding these matters have been focused on the need of having seismic design spectra for longperiods. It is known that velocity or displacement spectra obtained from direct conversion of acceleration spectra in most codes are unrealistic in both shape and amplitude, and for that reason, velocity or even displacement design spectra not obtained from acceleration spectra for longperiods have been proposed since the middle of the 90´s. The works of Trifunac (1995), Tolis (1999), Bommer (1999), Bommer et al (2000), Hu and Yu (2000) and Faccioli et al (2004) are some proposals of spectra for longperiod structures.
In the analysis of the bridge models considering farfault ground motions, each orthogonal threecomponent event was applied with a timestep size of 0.02 sec. The time integration parameters to control the convergence were chosen in order to guarantee the stability conditions of the nonlinear analysis with an adequate accuracy. In this sense, the maximum and minimum substep size employed was zero, the maximum iterations per substep were 60 (for which an adequate accuracy using cable formulation was obtained in the nonlinear static analysis), and the iteration convergence tolerance was 1x10^{4}, for which adequate results were obtained in the largedisplacement analyses. In general terms the convergence was easy to obtain in these cases, with the exception of some cases for the AR4 model.

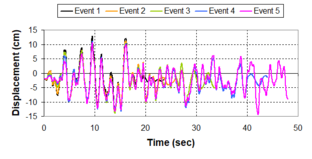

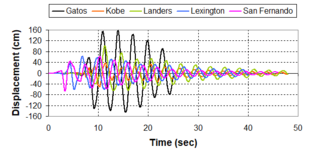

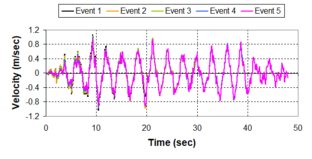

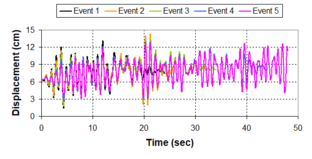

The timehistory plots shown in the following figures expose the response for the zone associated to the strong motion duration of each ground motion, obtained from the Arias Intensity of each event. Because of the farfault events were generated from the same origin (elastic acceleration response spectra from Eurocode 8), and considering for each event the same basic parameters that define the response spectra, the responses obtained were very similar. The main parameter that changed in this stage was the source distance, implying an increase of the duration of the event as the source distance increases. However, some differences in the seismic responses can be observed comparing each event, as can be appreciated next. At time equal to zero, the response is generally nonzero because it is obtained at the end of the nonlinear static analysis, and considered as starting point of the nonlinear direct integration time history analysis.

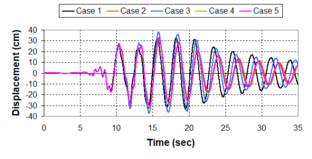

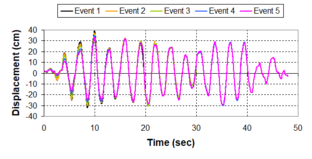

The main time histories of relative displacements for both bridge models can be observed in Figs. 3.55 to 3.59.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
Longitudinal displacements of the deck are very similar for both structures, with maximum values lower than 40 cm (Fig. 3.55). Because of the rich frequency content of the artificial farfault earthquakes, response timehistories are very regular, with similar peak displacements obtained a lot of times. A comparison between time histories of the vertical displacements at the midspan (Fig. 3.56) shows slight differences between both bridges. It is clear that maximum values are obtained for the AB4 model, with a peak vertical displacement lower than 25 cm. On the other hand, Fig. 3.57 shows response time histories for the transverse displacements of the deck at the midspan. In this case, more important differences between both structures are experienced, with maximum values for the AB4 bridge, obtained with Event 5.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge

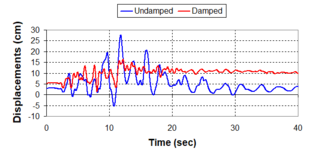

A comparison between the longitudinal displacements of the towertop (Fig. 3.58), shows a very regular behaviour for both structures, with peak responses in the order of 60 cm. With regard to the transverse displacements of the towertop, maximum values are very similar for both models, with a comparable response for all the analysis time. Maximum values are obtained for Event 5, of about 40 cm, as can be appreciated in Fig. 3.59. This analysis shows that maximum displacements for both bridges are obtained for the longitudinal displacement of the towertop and the transverse displacement of the deck at the midspan, with very similar results. The main differences on the displacement response between both bridges are observed for the vertical and transverse displacements of the deck at the midspan.
With comparative purposes, Fig. 3.60 exposes the relative longitudinal velocity response of the deck for both structures. Results show a similar response, with maximum velocities in the order of 1 m/sec, about two times the peak ground velocity of those events. All the events experience more or less the same velocity response, repeating during the time interval of the analysis. Those velocity responses can be adequately controlled by additional energy dissipation devices.
(a) AB4 bridge
(b) AR4 bridge

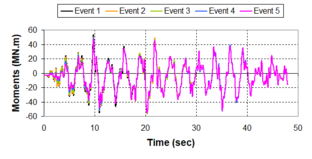

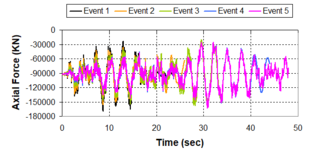

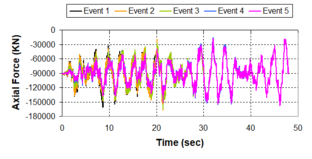

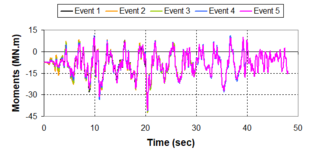

Regarding the main internal forces, a comparison for both bridges can be observed in Figs. 3.61 to 3.64, in which axial forces and bending moments for the main elements are represented as time histories. Shear forces were not included in this analysis because the response of those structures is basically controlled by axial forces, bending moments and their interaction.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge

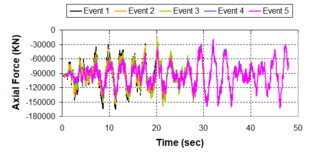

The axial forces of the tower legs (Fig. 3.61) show a comparable average response for both structures, very regular, with maximum compressive forces of about 160000 kN. In this case, time histories show for both bridges that the towers remain in compression during all the time for all the events, with peak compressive forces more than 1.8 times the static forces. The axial forces of the deck at the towerdeck connection showed in Fig. 3.62 represent the point in which maximum axial forces of the deck are experienced. Maximum values obtained are different for both bridges, being higher on AR4 bridge, with a peak response of 45000 kN (compression). Likewise, during all the analysis time, and for all the events, the decks of both bridges are in compression, showing a very regular behaviour of the response. Bending moments shown in Fig. 3.63 are very similar for all the events, with maximum values for both structures in the order of 630 MN.m. In this sense, the static moments at the end of the nonlinear static analysis are almost negligible compared with the tremendous nonlinear dynamic moments, and for that reason they appear showing a value near to zero at time zero of the time histories, according to the used scale. Considering the response spectrum analysis, maximum bending moments of the deck are obtained at the midspan, and for that reason this point was selected for the analysis of the time histories of the deck moments. It is clear from Fig. 3.64 that maximum moments of the deck are obtained on AB4 bridge, with a peak value of 56 MN.m, 30% higher than the maximum deck moment on AR4 bridge.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
Maximum responses of the relative displacements and velocities for the models AB4 and AR4 are summarized in Tables 3.28 and 3.29. The used nomenclature is basically the same considered before, plus Δ_{3T} (transverse displacement of the deck at the midspan); V_{1L} (longitudinal velocity of the towertop); V_{1T} (transverse velocity of the towertop); V_{3V} (vertical velocity of the deck at the midspan); V_{3T} (transverse velocity of the deck at the midspan); and V_{4L} (longitudinal velocity of the deck). In order to expose more clear results, displacement and velocity responses are showed in absolute values, because the sign is not important at this stage. In general terms, the maximum seismic responses for displacements and velocities are similar from one event to another, although some small differences can be appreciated as was previously explained. The average of the maximum responses shows similar results comparing model AB4 with model AR4, with slight differences for vertical displacements of the deck at the midspan, longitudinal displacements of the deck and the vertical velocities of the deck at the midspan. More important differences were obtained for the transverse displacements and velocities of the deck at the midspan. The more important velocities can be appreciated for the longitudinal response of the towertop and the transverse velocity of the deck at the midspan, with values higher than 1.5 m/sec. As a result, comparing responses of displacements and velocities between both bridge models, it is clear that the best behaviour is observed on AR4 bridge, that is to say, the harp pattern layout.
Event  AB4 bridge  AR4 bridge
Δ_{1L}  Δ_{1T}  Δ_{3V}  Δ_{3T}  Δ_{4L}  Δ_{1L}  Δ_{1T}  Δ_{3V}  Δ_{3T}  Δ_{4L}
1  66.8  36.2  22.8  60.7  39.1  63.2  34.8  18.7  50.1  35.7
2  62.8  35.6  23.5  66.8  37.0  62.4  35.1  20.7  49.1  35.1
3  60.7  31.7  23.4  56.6  35.8  60.6  30.8  20.2  46.5  34.0
4  58.6  35.5  23.1  60.2  34.9  59.8  36.3  19.7  54.2  33.5
5  56.0  37.3  23.4  66.8  33.1  57.8  43.6  19.6  59.6  33.8
Average  61.0  35.3  23.2  62.2  36.0  60.8  36.1  19.8  51.9  34.4
Event  AB4 bridge  AR4 bridge
V_{1L}  V_{1T}  V_{3V}  V_{3T}  V_{4L}  V_{1L}  V_{1T}  V_{3V}  V_{3T}  V_{4L}
1  1.86  1.07  0.91  1.93  1.08  1.70  1.01  0.67  1.52  1.04
2  1.72  0.99  0.97  1.90  1.03  1.65  0.99  0.76  1.41  1.02
3  1.68  1.00  0.97  1.87  1.01  1.64  1.00  0.74  1.44  0.99
4  1.62  1.04  0.94  1.71  0.98  1.60  1.09  0.73  1.43  0.96
5  1.53  1.00  0.95  1.67  0.94  1.58  1.05  0.67  1.60  0.94
Average  1.68  1.02  0.95  1.82  1.01  1.63  1.03  0.71  1.48  0.99
Tables 3.30 and 3.31 show comparisons of the selected maximum internal forces for both bridge models. Negative values for axial forces imply compression and absolute values for bending moments were used here.
The examination of the internal forces shows more disparities between models AB4 and AR4, and it is difficult to conclude about the best structural typology based on the internal forces only, on the contrary of the displacements and velocities for which differences are clearer. Anyway, it seems to be that AB4 bridge shows a good behaviour. Differences from one event to another are small in general terms, and maximum differences are experienced for maximum inplane bending moments at the tower base for AB4 bridge (18% difference between event 1 and event 5). For the rest of the internal forces, differences are no greater than 10% from one event to another, and for that reason, the average of the maximum response parameter is a good measure of the response. Maximum axial forces and bending moments at the tower base are similar for both structures, with inplane moments more than 1.8 times the outofplane moments of the towers. Those results are in accordance with the modal analysis and the response spectrum analysis, demonstrating that the principal direction correspond to the longitudinal direction of the bridges. The maximum bending moments of the deck are obtained at the midspan for both bridges, as was proved with the response spectrum analysis.
As a summary, nonlinear time history analysis for farfault ground motions shows comparable results for both bridges. AR4 Bridge is recommended for a better control of displacements and velocities, and AB4 bridge seems to be the best choice for a better control of the internal forces, although those differences can be questionable.
Event  N_{maxtower}^{a}
[kN]
N_{maxdeck}^{b}
[kN]
N_{maxcable}
[kN]
M_{maxtower}^{a, c}
[MN.m]
M_{maxtower}^{a, d}
[MN.m]
M_{maxdeck2}^{c}
[MN.m]
M_{maxdeck3}^{c}
[MN.m]
1  165000  34000  10700  694.3  324.8  15.3  55.2
2  159500  34260  10400  653.0  347.6  16.2  56.8
3  153000  33800  10280  620.0  339.2  16.6  56.4
4  161000  32900  10080  595.6  351.1  16.1  55.7
5  163000  33580  9860  568.0  342.4  15.9  55.8
Average  160300  33708  10264  626.2  341.0  16.0  56.0
Event  N_{maxtower}^{a}
[kN]
N_{maxdeck}^{b}
[kN]
N_{maxcable}
[kN]
M_{maxtower}^{a, c}
[MN.m]
M_{maxtower}^{a, d}
[MN.m]
M_{maxdeck2}^{c}
[MN.m]
M_{maxdeck3}^{c}
[MN.m]
1  160600  42900  6260  625.3  314.7  22.2  36.0
2  168000  45300  6260  652.0  348.0  23.6  42.5
3  164700  45300  6160  638.5  334.3  23.6  34.7
4  155600  45000  6020  617.5  356.4  23.4  41.1
5  157000  46100  5800  614.4  400.8  22.7  40.7
Average  161180  44920  6100  629.5  350.8  23.1  39.0
^{a} At the tower base ^{c} Inplane
^{b} At the towerdeck connection ^{d} Outofplane
Basically, the same considerations were used in the nearfault analysis for the models, including the timestep size, damping characterization and zerotime conditions among other things. Because of the inherent highly nonlinear behaviour involved in the nearsource ground motion, some convergence troubles were experienced as was previously explained. In this sense, sometimes the integration parameters were strongly modified in order to reach the desired stability with the required accuracy. Numerical damping of 0.2 was enough to guarantee that the solution was invariant, with an adequate control of the high frequency content. Maximum substep size between 0 – 0.02 was employed, and a minimum substep size of zero was selected for all the bridge models. With regard to the maximum iterations per substep, different values were necessary to apply depending on the event and model. In the case of farfault analysis, 60 iterations were enough; however, for nearfault ground motions, 120 iterations were a normal value, and sometimes up to 180 iterations were necessary (Landers event), with the obvious increment of computer time. To guarantee an adequate tolerance of the iterations, especially when largedisplacement effects are considered, 1x10^{3} value was used.
The plots of time histories shown in the following pages are very different from results obtained with the farfault analysis, mainly because of the nature of the events (real earthquakes) and the longperiod velocity pulses observed in the velocity records.

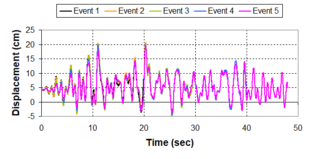

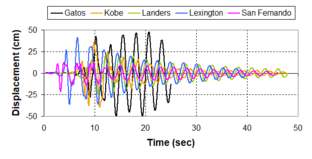

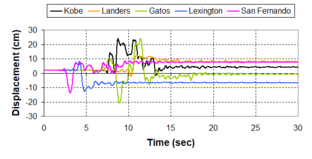

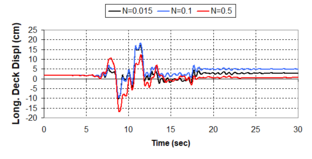

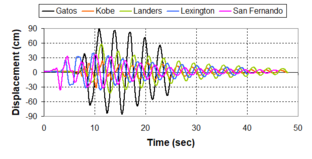

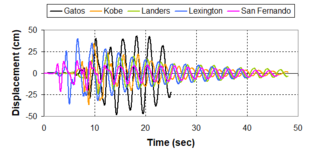

Figs. 3.65 to 3.69 show time histories for displacement responses considering AB4 and AR4 bridges, and applying the five analyzed earthquake events.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
From Fig. 3.65, it is easy to observe that maximum longitudinal deck displacements are obtained with the event Gatos, showing maximum displacements of about 90 cm, for both bridge models. Those maximum displacements are followed by results obtained with event Landers (less than 60 cm maximum displacement). For the rest of the earthquake events, results are similar. It is interesting to observe that both bridges experience basically the same seismic response for longitudinal displacements of the deck.
(a) AB4 bridge
(b) AR4 bridge

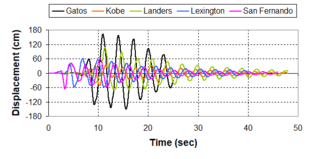

Fig. 3.66 shows time histories for vertical displacements of the deck at the midspan. Maximum displacements are observed for event Gatos (114 cm for AR4 bridge, 89 cm for AB4 bridge), followed by displacements obtained with event San Fernando (39 cm, AB4 bridge) and event Landers (45 cm, AR4 bridge). On the contrary of the case of the longitudinal displacements of the deck, the vertical displacements are quite different comparing both bridge models, especially with events Gatos, Landers and San Fernando. For both structures, all the vertical displacements are completely damped for times over 30 sec.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
Similar comparisons to the previous formulated can be proposed for the transverse displacements of the deck at the midspan (Fig. 3.67), longitudinal displacements of the towertop (Fig. 3.68) and transverse displacements of the towertop (Fig. 3.69). All of them experience similar responses comparing both models, which implies that incidence of the stay cable layout is not very important regarding the nonlinear seismic response of the displacements obtained. For all the earthquake events, the maximum responses are obtained with event Gatos followed by event Kobe (transverse displacement of the deck), Landers (longitudinal displacement of the towertop) and Lexington (transverse displacement of the towertop). In these sense, maximum responses are observed for the longitudinal displacements of the towertop and vertical displacements of the deck. This pulsetype vertical motion of the deck at the midspan is especially large for AR4 bridge, a common feature of the nearsource effects.

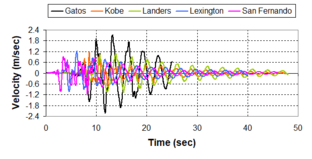

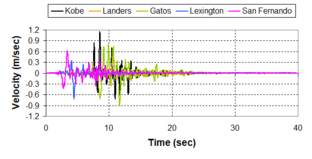

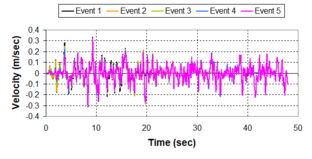

Velocity response of the deck in the longitudinal direction is especially important in order to study the response behaviour at the possible location zones for fluid viscous dampers (energy dissipation devices), aspect enlarged in the next chapter. Plots observed in Fig. 3.70 show that maximum response is obtained, again, for event Gatos, which experiences very high velocities, larger than 2 m/sec. The rest of the earthquakes impose velocities no larger than 1.2 m/sec, as happens with the farfault ground motions. Velocity responses are very similar comparing both models, showing again that the incidence of the stay cable layout on the seismic response is negligible in this case. These responses are damped for times over 40 sec.

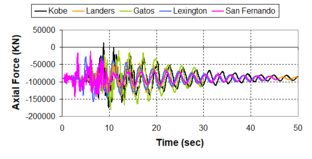

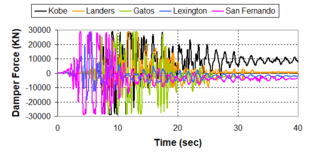

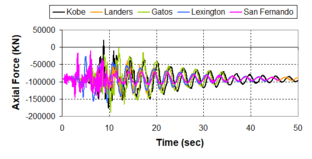

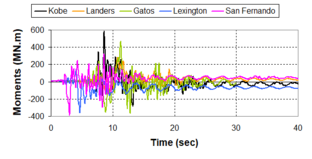

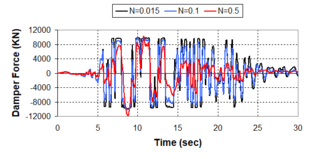

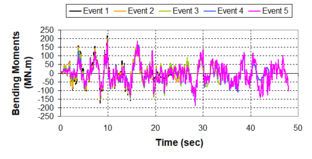

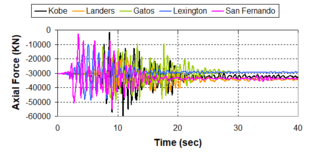

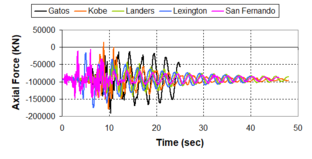

With regard to the selected internal forces of this analysis, Figs. 3.71 to 3.74 show responses for axial forces and bending moments on the towers and decks. Similarly to the farfault analysis, shear forces were not included in this analysis because the response of those structures is basically controlled by axial forces, bending moments and their interaction.
(a) AB4 bridge
(b) AR4 bridge
In general terms, plots of the responses for internal forces for both models are similar, and only specific differences of the peak values can be observed. Although this appreciation can be used to conclude that the effect of the stay cable layout on the seismic response is not very important, in the case of the internal forces, those differences are more significant, especially comparing the average responses between both bridges. As happens with the displacements and velocities, maximum responses for the internal forces are obtained with the earthquake event Gatos, followed very close by the event Kobe, in the case of the axial forces at the tower base.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
From Figs. 3.71 and 3.72, it is interesting to observe that tower and deck are basically entirely compressed (negative values), during all the time of the duration of the events, although tension forces can be appreciated at the tower base with the event Kobe; and more evidently at the deck, with the events Landers, Kobe and Gatos. The response for axial force of the deck obtained with the event Gatos strongly overpasses the zerolimit at specific times, with peak tension values of about 25000 kN (AB4 bridge) and 20000 kN (AR4 bridge). Of course, if tensions on the towers are obtained during the nonlinear time history analysis, special considerations must be taken with the design of such elements, and mainly with the foundations. The situation involving specific peak tension forces on tower and deck for both bridges was not observed during the farfault analysis.
(a) AB4 bridge
(b) AR4 bridge
(a) AB4 bridge
(b) AR4 bridge
The analysis of bending moments show that very high values were obtained at the tower base, mainly with the event Gatos, followed by the event Landers (Fig. 3.73). For that reason, in order to adjust an adequate scale to represent the obtained values, bending moments at zerotime for both structures seem to be zero, although the initial values were the obtained from the nonlinear static analysis. The peak responses for inplane bending moments at the tower base are in the order of 1600 MN.m for AB4 bridge, and 1450 MN.m for AR4 bridge, obtained with the event Gatos. Moments at the tower base obtained with the events Kobe, Lexington and San Fernando are comparable, with maximum responses of 660 MN.m. Bending moments of the deck at the midspan are very high mainly with the event Gatos. In this case, responses for both structures are clearly different, on the contrary of the displacements or axial forces, as can be appreciated in Fig. 3.74.
A summary of the maximum relative displacements and velocities obtained with the nonlinear direct integration time history analysis for both bridges can be appreciated in Tables 7.32 and 7.33. In the same way, Tables 7.34 and 7.35 expose a summary of the selected maximum internal forces according to the nearfault analysis. For simplicity, absolute values of displacements, velocities and bending moments are showed. Negative values of axial forces imply compression. The nomenclature here applied is the same considered before.
Table 7.32 shows that maximum displacements at selected joints are obtained with the event Gatos, with maximum values for the longitudinal displacements at the towertop (162.3 cm for AR4 bridge and 158.8 cm for AB4 bridge). More interesting observations can be formulated comparing the average of the maximum responses, in which the maximum values are obtained, in both models, for the longitudinal displacements of the towertop (88.22 cm for AB4 bridge, 90.06 cm for AR4 bridge) and the transverse displacements of the deck at the midspan (56.80 cm for AB4 bridge, 54.48 cm for AR4 bridge). An analogue situation was observed with the average displacements obtained with the farfault ground motions. A comparison between both structures for the average of the maximum displacements show that similar results are obtained, with main differences experienced for the vertical displacements of the deck (10%). Velocities observed in Table 7.33 show very high values obtained with the event Gatos, and specifically, for the longitudinal velocities at the towertop (3.94 m/sec for AR4 bridge, 3.41 m/sec for AB4 bridge). A comparison of the average responses show maximum values obtained, for both structures, with the longitudinal velocities of the towertop and the transverse velocities of the deck at the midspan, an analogue situation compared to the average maximum displacements. Likewise, differences on the velocity responses between both bridges are negligible, with values no greater than 5%. In this sense, as happens with the displacement response, it is difficult to formulate recommendations regarding the best stay cable layout in order to minimize the velocity response.
Event  AB4 bridge  AR4 bridge
Δ_{1L}  Δ_{1T}  Δ_{3V}  Δ_{3T}  Δ_{4L}  Δ_{1L}  Δ_{1T}  Δ_{3V}  Δ_{3T}  Δ_{4L}
Gatos  158.80  48.50  88.70  80.00  89.60  162.30  50.80  114.30  76.00  89.20
Kobe  50.80  36.50  27.70  62.50  31.70  52.50  39.60  27.00  63.60  29.50
Landers  101.20  24.40  33.50  38.90  58.30  107.40  24.60  45.60  36.10  58.70
Lexington  63.00  39.90  30.60  63.60  39.70  61.60  41.50  28.80  60.30  40.30
San Fernando  67.30  21.60  39.00  39.00  36.60  66.50  21.30  28.70  36.40  36.00
Average  88.22  34.18  43.90  56.80  51.18  90.06  35.56  48.88  54.48  50.74
Event  AB4 bridge  AR4 bridge
V_{1L}  V_{1T}  V_{3V}  V_{3T}  V_{4L}  V_{1L}  V_{1T}  V_{3V}  V_{3T}  V_{4L}
Gatos  3.41  1.42  2.23  2.10  2.36  3.94  1.28  2.84  2.15  2.22
Kobe  1.45  1.56  1.35  2.22  1.11  1.62  1.76  1.24  1.90  1.17
Landers  1.77  0.68  1.50  0.99  1.08  1.90  0.68  1.20  0.86  1.08
Lexington  1.82  1.66  1.13  1.90  1.16  1.63  1.69  0.96  2.07  1.21
San Fernando  1.93  1.01  1.37  1.39  1.02  1.76  0.96  1.13  1.28  1.21
Average  2.08  1.27  1.52  1.72  1.35  2.17  1.27  1.47  1.65  1.38
The analysis of the average maximum internal forces illustrated in Tables 7.34 and 7.35, shows more important differences between both bridge models, as occurs with the farfault analysis. The main differences come from the maximum axial forces of the deck (23.8%), maximum cable forces (38.2%) and bending moments of the deck at the midspan (31.1%). However, as happens with the displacements and velocities, it is difficult to propose the best cable layout to minimize the seismic response of the internal forces, and for that reason, it is not possible to propose conclusions in these matters. It seems to be that conclusions regarding the best proposal for the stay cable layout can be better formulated applying the farfault analysis (because of the artificially generated earthquake events are very regular) or the response spectrum analysis, as was previously exposed. Anyway, as happens with the other seismic responses, maximum internal forces are obtained for the event Gatos, which shows very high values for some specific responses, as for example the inplane bending moments at the tower base, the axial forces of the deck, the cable forces and the bending moments of the deck at the midspan. As happens with the farfault analysis, no important differences are appreciated with the maximum axial forces at the tower base; and regarding the maximum bending moments, values of inplane moments are more than 2.78 and 2.64 times the outofplane moments for the models AB4 and AR4 respectively. These differences are more important in the nearfault analysis, which confirms that the longitudinal direction is critical. Regarding the bending moments of the deck, as happens with the farfault analysis, maximum moments are obtained at the midspan, with an average difference of the maximum responses of about 30% between both bridges.
Event  N_{maxtower}^{a}
[kN]
N_{maxdeck}^{b}
[kN]
N_{maxcable}
[kN]
M_{maxtower}^{a, c}
[MN.m]
M_{maxtower}^{a, d}
[MN.m]
M_{maxdeck2}^{c}
[MN.m]
M_{maxdeck3}^{c}
[MN.m]
Gatos  191000  74400  18700  1616.3  449.8  37.9  125.9
Kobe  180000  36800  9270  647.8  397.1  20.7  57.8
Landers  144100  46300  13440  994.5  219.5  18.0  65.9
Lexington  176000  33600  11600  660.7  352.3  15.6  75.9
San Fernando  147100  38200  10700  660.6  227.1  30.3  64.4
Average  167640  45860  12742  916.0  329.2  24.5  78.0
Event  N_{maxtower}^{a}
[kN]
N_{maxdeck}^{b}
[kN]
N_{maxcable}
[kN]
M_{maxtower}^{a, c}
[MN.m]
M_{maxtower}^{a, d}
[MN.m]
M_{maxdeck2}^{c}
[MN.m]
M_{maxdeck3}^{c}
[MN.m]
Gatos  186000  76500  11640  1466.7  467.3  36.1  100.8
Kobe  180400  56200  6020  519.8  396.7  36.4  44.5
Landers  141900  55900  8650  975.3  214.6  28.9  40.5
Lexington  170000  50900  7000  726.6  364.2  21.7  38.8
San Fernando  150000  61500  6070  691.2  210.7  32.1  44.2
Average  165660  60200  7876  875.9  330.7  31.0  53.8
^{a} At the tower base ^{c} Inplane
^{b} At the towerdeck connection ^{d} Outofplane
The last point of this chapter exposes some comparisons between the obtained responses applying farfault ground motions and nearfault ground motions. Moreover, in addition of the seismic responses obtained with the nonlinear time history analysis, maximum responses obtained with the response spectrum analysis are considered in order to compare results.
The comparative analysis takes into consideration the average of the absolute maximum responses because this parameter reflects in a better way the worse average condition for the selected seismic events. In fact, if the maximum of the average response is considered, different values are obtained, in which the average response is computed stepbystep, not by the security side. If the average of the absolute maximum responses is considered, higher average responses are obtained, independent on the time.
The nonlinear timehistory analysis proved that the incidence of the stay cable layout was not very important on the seismic response of cablestayed bridges, and only some specific internal forces of the deck were more affected. For that reason, it is not necessary to compare both structures again in this comparative analysis, and consequently, AR4 is taken as bridge model.
As starting point, some significant displacements are compared. Fig. 3.75 shows a comparison between average displacements considering the response spectrum method and the nonlinear time history analysis, in which both farfault and nearfault ground motions are considered. In this case, longitudinal displacements of the deck, vertical displacements of the deck at the midspan (where the vertical deflection of the deck is maximum), transverse displacements of the deck at the midspan, and longitudinal displacements of the towertop (where the peak displacements of the tower are obtained) are considered.
In general terms, results obtained with the farfault analysis are higher than results obtained with the response spectrum analysis, and results obtained with the nearfault analysis are higher than that of the farfault ground motions. An exception can be observed for the case of the transverse displacements of the deck (Fig. 3.75c), in which the maximum response is obtained applying the response spectrum method. Anyway, in this case the nearfault analysis gives higher average results of the displacements compared with the farfault analysis. Specifically, differences between results obtained with farfault and the response spectrum analysis are of 21.2%, 21.7%, 12.6% and 30% for longitudinal displacements of the deck, vertical deflections of the deck, transverse deflections of the deck and longitudinal deflections of the towertop respectively. Differences between results obtained with farfault and nearfault analysis are of 32.1%, 59.5%, 4.8% and 32.5% for longitudinal displacements of the deck, vertical deflections of the deck, transverse deflections of the deck and longitudinal deflections of the towertop respectively. Obviously, more important differences are obtained comparing farfault with nearfault ground motions, which indicates the importance of an adequate analysis in such situations. Of course, differences between nearfault analysis and the response spectrum analysis are much greater. It is interesting to observe that the analysis of the transverse deflections of the deck shows the same magnitude order for the obtained displacements, with no evident incidence of the ground motion type, even if the response spectrum analysis is applied. The analysis of the average maximum velocities shows similar results than the displacements analysis, and for that reason was not considered here.
Fig. 3.76 shows comparative results for the compressive forces at the tower base, compressive forces of the deck at the towerdeck connection (where the axial forces of the deck are maxima) and the tension forces of the most unfavourable cables respectively. With no exception, average axial forces of the farfault condition are higher than axial forces obtained with the response spectrum analysis; and the axial forces obtained with nearfault ground motions are higher than that of the farfault analysis. Specific differences for the axial forces between the farfault condition and the response spectrum analysis are of 1.9%, 3.8% and 18% for the compressive forces at the tower base, compressive forces of the deck and tension forces of the cables respectively. Comparing nearfault with farfault ground motions, differences are of 2.7%, 25.4% and 22.6% for the same internal forces. Those results prove again that maximum differences are obtained between nearfault and farfault ground motions, and lower differences can be appreciated comparing farfault condition with the response spectrum analysis. Also, analysis of the compressive forces at the tower base show similar results for all the cases, with no important differences.
(a) Longitudinal displacement of the deck
(b) Vertical deflection of the deck at the midspan
(c) Transverse displacement of the deck at the midspan
(d) Longitudinal displacement of the towertop
The analysis of the bending moments (Fig. 3.77) shows again that the average of the maximum responses for the farfault condition is higher than the average obtained with the response spectrum analysis, with the exception of the bending moments of the deck at the midspan. Similarly, average of the maximum responses obtained with the nearfault condition is higher than that obtained with the farfault analysis, with the exception of the outofplane bending moments at the tower base. Specific differences on the average responses between the farfault condition and the response spectrum analysis are of 21.2%, 2.8% and 14.5% for inplane bending moments at the tower base, outofplane moments at the tower base and bending moments of the deck at the midspan respectively. Differences on the average responses between farfault and nearfault conditions are of 28.1%, 5.7% and 27.5% for inplane bending moments at the tower base, outofplane moments at the tower base and bending moments of the deck at the midspan respectively. Observing Fig. 3.77b and the specific differences obtained, it is easy to see that no important differences on the average response are associated to outofplane bending moments at the tower base.
Summarizing, it is observed that the average of the absolute maximum responses associated to the farfault ground motions are higher than the responses associated to the response spectrum analysis, and similarly, average of the absolute maximum responses associated to the nearfault ground motion are higher than the obtained with the farfault motions. In this sense, the greatest differences are obtained comparing nearfault with farfault ground motions. This implies that application of the response spectrum method for the seismic design of cablestayed bridges is not recommended, and worse, unsecure.
On the other hand, comparing responses obtained with the nearfault ground motions, it is clear that the worse condition is observed with Gatos event. In this sense, San Fernando earthquake experiences the highest PGA, much higher than that observed with Gatos event; however, maximum responses were obtained with Gatos earthquake, which experiences higher spectral velocities than San Fernando earthquake. This confirms that the analyzed structures are more sensitive to velocities than accelerations. A similar situation occurs comparing the events of Landers and San Fernando.
(a) Compressive forces at the tower base
(b) Compressive forces of the deck at the towerdeck connection
(a) Inplane bending moments at the tower base
(b) Outofplane bending moments at the tower base
Fluid viscous dampers constitute an attractive methodology to protect structures against earthquakes. Application of those strategies on buildings and bridges has been widely used, but their incorporation on cablestayed bridges has been slow. For that reason, this study is focused on the implementation of nonlinear viscous dampers as additional energy dissipation devices on such structures, with the purpose of analyze their seismic response in the presence of both farfault and nearfault ground motions. In order to simplify this analysis and to consider the same nonlinear time history analyses cases previously discussed, AB4 and AR4 bridge models are studied. With this selection, the incidence of the stay cable layout on the seismic response and an adequate comparison with the undamped cases is possible.
This part of the research considers the analysis of the bridge models applying nonlinear direct integration time history analysis, by using the HilberHughesTaylorα method [Hilber et al, 1977], aspect enlarged in Appendix A. All the analyses are performed using the code SAP2000 [Computers & Structures, 2007], with the geometric definition, structural modelling, material data, mechanical properties and loads considered in Chapter 3. Because of the highly nonlinear and complex nature of the fluid viscous dampers, response spectrum analysis is not possible, and only time history analysis cases are applied using both farfault and nearfault orthogonal threecomponent recordings processed before, and taking into account the velocitysensitivity of the structures. The damping characteristics are empirically calculated according to Kawashima and Unjoh (1991), considering that the complex damping mechanism of cablestayed bridges is only dependent on the modal shapes. The excitation amplitude dependency of the damping is not considered here, and for that reason, Rayleigh’s proportional damping is proposed for the time history analyses. With regard to the stay prestressing forces of the bridges, because of the low variations of the seismic response in the presence of lowtomoderate variations of the static cable forces according to Chapter 3, no additional static modifications of the cable forces are introduced here.
The incorporation of nonlinear fluid viscous dampers makes the analysis very complex because of the highly nonlinear behaviour of the whole structure, and a lot of trialanderror tests were necessary to guarantee an accurate convergence. As explained in Appendix A, stability conditions are difficult to guarantee when nonlinear behaviour is experienced, and preliminary tests are absolutely necessary to calibrate the parameters of the analysis. In this sense, to control de convergence of the models, the same time integration parameters used in the analysis without additional damping were applied here: 0.02 sec timestep size, maximum and minimum substep size, maximum iterations per substep and the iteration convergence tolerance. The numerical damping applied to control the instability due to the high frequency content is selected as 0.2, guaranteeing that the response is not dependent on this parameter. As a summary, more than 80 analyses implying more than 280 hours of computer fulltime were necessary.
The Chapter begins with the definition of the structural modelling of the viscous dampers, and the considered parameters. With the aim to select the optimal arrange of the dampers, five different damper layouts are studied, considering the worse conditions for both farfault and nearfault ground motions. With this analysis, the definitive structural layout for the study of the bridges including additional viscous dampers is achieved, and the new dynamic characterization of the bridges is exposed, including evaluation of natural periods, modal shapes and modal damping. In order to select the optimal damper parameters, a parametric study is conducted with one of the bridge models and considering again the worse conditions for both farfault and nearfault ground motions. After that, the influence of the velocity exponent of the dampers is analyzed. The nonlinear time history analysis applying the optimal damper parameters for both structures is then performed, considering all the analysis cases for both farfault and nearfault ground motions. Finally, comparative studies between the optimal solutions, with and without the incorporation of additional dampers, are performed. Comparisons between farfault and nearfault ground motions considering the effects of the stay cable layout are included, as well as an energy characterization of the problem.
Modelling of nonlinear fluid viscous dampers considers the use of nonlinear link elements according to the structural code SAP2000. Because of the inherent nonlinear behaviour of the dampers, during the analysis, the nonlinear forcedeformation relationships are used at all degreesoffreedom for which nonlinear properties were specified, and for that reason, linear effective stiffness and linear effective damping is not used for any nonlinear analysis. In this sense, nonlinear timehistory analysis is absolutely necessary when nonlinear additional energy dissipation devices are added. This is the correct way to determine the effect of added dampers, since nonlinear timehistory analysis does not use the effective damping values, and the energy dissipation in the elements is directly accounted for, as well as the effects of modal crosscoupling [Computers & Structures, 2007].
Fig. 4.1 Maxwell Viscoelasticity Model for Nonlinear Dampers
In the structural modelling of nonlinear fluid viscous dampers, only axial nonlinear properties were defined (axial deformational degreeoffreedom). The damping properties are based on the Maxwell model of viscoelasticity [Malvern, 1969] having a nonlinear damper in series with a spring, according to Fig. 4.1.
The nonlinear forcedeformation relationship is given by: where k is the spring constant, c is the damping coefficient, N is the velocity exponent of the damper, d_{k} is the deformation across the spring, and is the deformation rate of the damper.
The spring and damping deformations sum to the total internal deformation d = d_{k} + d_{c}.
The series spring is very important for capturing realistic behaviour of nonlinear dampers, especially those with fractional exponents. It represents the elastic flexibility of the damping device, including the fluid column and the connecting mechanism, preventing the damping term from producing unrealistic large viscous forces at small velocities. However, with the purpose of obtaining pure viscous damping, the spring deformation was limited introducing large stiffness value of k, typically of about 10^{2 }times as large as the corresponding stiffness in any connected elements. It was proved in this work that larger values of k cause numerical difficulties during solution, implying that convergence can be strongly affected. Of course, consideration of pure damping can affect the response of the structures in terms of the permanent displacements after the event, especially in presence of strong ground motions; however, in the practical engineering, incorporation of structural fuses may reduce or limit to zero the permanent displacements under service loads and lowtomoderate earthquakes (aftershock displacements). In this theoretical analysis, this issue is not very important, because the pure damping mechanism is analyzed, that is to say, the energy dissipation capacity of the devices considering pure additional damping, which implies that structural fuses or any other additional mechanism to provide an initial stiffness, have failed. The failure of the additional devices to provide an initial stiffness is absolutely necessary when strong ground motion happens, allowing the desired performance of the dampers. Likewise, the inherent low stiffness of the dampers has minimal influence on the fundamental natural frequency [Symans et al, 2008]. For that reason, in this investigation, the minimal restoring force of the dampers may induce permanent displacements after some earthquake events.
The correct definition of the additional damping devices requires the specification of the nonlinear properties used for nonlinear analysis: stiffness, damping coefficient and velocity exponent. Those specific values are the key of the design of the dampers, and they are specified according to the procedure explained in the point 4.1 of this chapter, starting from initial values taken from practical recommendations, as can be seen next. With regard to the mass and area properties of the dampers, elements with zeromass and zeroweight were defined because those properties do not longer affect the response of the structures. Similarly, zerorotational inertias were defined for the same reasons.
Finally, it is important to say that, on the contrary of the viscoelastic dampers, frequency and temperature dependency is minimum [Symans et al, 2008], which simplifies the mathematical modelling of the viscous dampers.
One of the questions that designers need to respond is the best configuration of the dampers into the structure. The dampers are external devices, normally not affected by direct permanent loads, and located at places where the replacement or inspection is easy. In buildings, this task sometimes can be complicated, because of the numerous possibilities in which the dampers can be located; and for that reason, optimization procedures can be an excellent tool that can help designers in those decisions. In the case of bridges, possibilities for the location of the external devices are much more limited, and normally the dampers need to be installed at the deckends (abutmentdeck connection) and/or at the pylon/towerdeck connection.
In order to investigate the best locations of the damper devices for this research, a brief study was conducted considering five analysis cases, all applied to the AB4 model. The first case considered locations of the dampers at the deckends only, in the longitudinal direction. Case 2 considered longitudinal dampers at the deckends and at the towerdeck connections, in which the fixedhinge of the towerdeck connections was changed by roller supports plus the dampers. Case 3 considered dampers at the deckends plus longitudinal damper in one of the towerdeck connections, and the replacement of the associated towerdeck connection by roller supports. Case 4 considered dampers at the deckends and transverse dampers plus roller supports at the towerdeck connections. Finally, case 5 considered dampers at the deckends and at the towerdeck connections for both directions, plus the corresponding replacement of the towerdeck connections by roller supports. It is obvious that cases 4 and 5 are an attempt of exploring the tridimensional response of the bridges in the presence of additional damping devices selected to control the longitudinal and transverse responses. Table 4.1 summarizes the five analysis cases.
Table 4.1 Layout of the TowerDeck Connections and Dampers for the Analysis Cases
CASE  Deckends  Tower 1  Tower 2
Support  Damper  Longitudinal Dir  Transverse Dir  Longitudinal Dir  Transverse Dir
connection  damper  connection  damper  connection  damper  connection  damper
1  roller  yes  fixedhinge  no  fixedhinge  no  fixedhinge  no  fixedhinge  no
2  roller  yes  roller  yes  fixedhinge  no  roller  yes  fixedhinge  no
3  roller  yes  roller  yes  fixedhinge  no  fixedhinge  no  fixedhinge  no
4  roller  yes  fixedhinge  no  roller  yes  fixedhinge  no  roller  yes
5  roller  yes  roller  yes  roller  yes  roller  yes  roller  yes
According to Table 4.1, replacement of fixedhinges by roller connections is selected when dampers are added, allowing the free displacements of them, with the subsequent energy dissipation. The vertical seismic protection with damping devices was not included because of the low incidence of the vertical motion on the overall response of the models according to the Modal Analysis explained in Chapter 3. Although the vertical motion can be especially important in the presence of nearsource earthquakes, this analysis is not the aim of this work, and can be proposed as further research.
In order to study the effects of both farfault and nearfault ground motions for the analysis cases, the worse seismic conditions were selected according to Chapter 3. The orthogonal threecomponent seismic inputs of Event 5 (farfault) and Gatos (nearfault) were applied here.
The modelling of AB4 bridge is basically the same previously considered, with the replacement of some towerdeck connections and the addition of the dampers. The roller connection between the lower strut of the tower and the deck was idealized using massless linear rigidlinks of zerolength, in which the non operative degreesoffreedom were fixed, allowing free rotations and displacements according to the allowable degreesoffreedom. These rotations and relative displacements were permitted by using zerostiffness associated to the activated degreesoffreedom of the rigidlinks. Modelling of the dampers was conducted using the code SAP2000, according to the specifications of point 4.2, and considering that all the dampers were initially identical, independent on the location or action direction. This assumption is very important because involves the same damping conditions for all the cases, allowing adequate comparisons. In this sense, recommendations of Alvarez (2004) were applied here to select the nonlinear damper properties; considering a provided damping of 25%, damping coefficient C equal to 30 MN/(m/sec)^{0.5}, and velocity exponent N of 0.5.
The analysis of all the nonlinear cases was performed using the code SAP2000, applying the HilberHughesTaylorα stepbystep integration method. The stability conditions with accurate results were guaranteed considering 0.02 sec timestep size, 0.2 numerical damping, maximum substep size of 0.02 sec, minimum substep size equal to zero, 70 and 140 maximum iterations per substep for farfault and nearfault ground motions respectively, and 0.0001 or 0.001 iteration convergence tolerance for farfault and nearfault ground motions respectively. As was previously explained, the damping mechanism was selected as Rayleigh’s type, applying 0.074 mass proportional coefficient and 5.13x10^{4} stiffness proportional coefficient according to the modal damping exposed in Chapter 3.

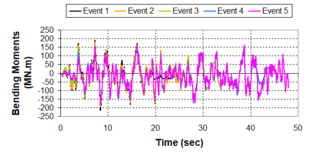

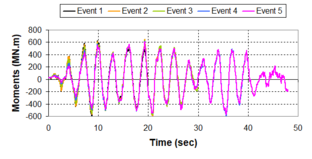

Time histories shown in Figs. 4.2 to 4.8 represent the seismic response of the AB4 model for both farfault and nearfault conditions, and considering that those plots give a good idea about the whole response of the structure when subjected to strong ground motion in the presence of additional damping devices. The presence of additional dampers basically permits an adequate control of the deck motion and the subsequent control of the internal forces of the structure. Consequently, longitudinal displacements of the deck, transverse displacements of the deck at the midspan, axial forces at the tower base and axial forces of the deck at the towerdeck connection are represented in Figs. 4.2 to 4.5. Figs. 4.6, 4.7 and 4.8 show the obtained forces into the dampers at the deckends and at the towerdeck connection in the longitudinal and transverse directions respectively. Similarly to Chapter 3, timehistory plots associated to the strong motion duration of farfault ground motion are shown. Positive values of axial forces imply tension, and negative axial forces imply compression. Similarly, negative forces at the dampers imply compression of the silicone fluid.
As happens with the undamped cases, time histories begin with nonzero initial conditions (with the exception of the transverse displacements of the deck) because of the results of the nonlinear static analysis are considered as starting point of the nonlinear time history analysis.
In general terms, a comparable behaviour of the seismic response is observed, independent on the analyzed case, that is to say, similar plots of the seismic responses are obtained for each measured response, with no important differences between the damper layouts. For that reason, the best layout is obviously the case implying few dampers controlling the best possible and imposing the lowest damper forces. Plots of displacements and axial forces show the highest values of the seismic response for the nearfault condition. A similar situation is observed with the damper forces. With regard to the axial forces, compressions at the tower base are observed for all the cases; however, for the axial forces of the deck, tension peaks can be appreciated with cases 3 and 4.

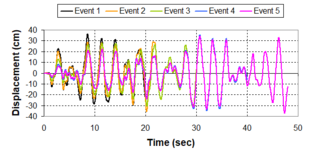

(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.2 Longitudinal Displacement of the Deck
(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.3 Transverse Displacement of the Deck at the MidSpan
(a) Farfault ground motion
(b) Nearfault ground motion

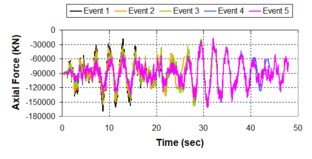

Fig. 4.4Axial Force at the Tower Base
An exhaustive comparison between different damper layouts shows that the worse conditions for both farfault and near fault ground motions are obtained with case 3 followed close by cases 1 and 4. Best cases for an adequate control of the longitudinal and transverse displacements of the deck are obtained with cases 2 and 5. Similarly, axial forces of the tower and deck are better controlled with cases 2 and 5.
(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.5 Axial Force of the Deck at the TowerDeck Connection

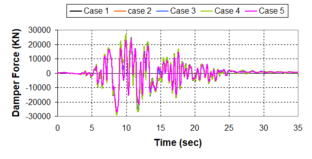

(a) Farfault ground motion
(b) Nearfault ground motion

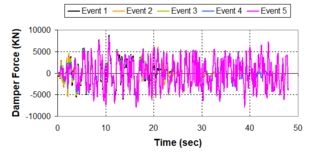

Fig. 4.6 Deckend Damper Forces
(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.7 Longitudinal Damper Forces at the TowerDeck Connection
(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.8 Transverse Damper Forces at the TowerDeck Connection
The analysis of the damper forces shows that for farfault ground motion case 2 controls efficiently deckend damper forces and longitudinal damper forces at the towerdeck connection. For nearfault ground motion, cases 2 and 5 adequately control deckend damper forces, but for the longitudinal damper forces at the towerdeck connection, case 5 is the best choice and case 2 seems to be an unfavourable layout. Regarding the transverse damper forces at the towerdeck connection, timehistory plots show that for both farfault and nearfault ground motions, cases 4 and 5 are practically superimposed, experiencing the same behaviour. This implies that both cases are the same in terms of the control of the transverse damper forces.
As a conclusion of the analysis of the timehistory plots, case 3 is definitively rejected, and cases 2 and 5 seem to be good candidates, although not very important differences can be appreciated in some cases.
As a complement of the timehistory plots, Tables 4.2 to 4.5 show a summary of the maximum main responses for the five cases in terms of displacements, velocities, internal forces, damper forces and damper velocities respectively. Δ_{1L} is the maximum displacement of the towertop in the longitudinal direction; Δ_{3V} is the maximum vertical displacement of the deck at the midspan; Δ_{3T} is the maximum transverse displacement of the deck at the midspan; and Δ_{4L} is the maximum longitudinal displacement of the deck. Analogously, velocities V at the same points for the control of displacements were defined, according to the nomenclature for the seismic responses applied in Chapter 3. Displacements and velocities are shown as absolute values for simplicity. Likewise, maximum internal forces on the structure are shown as absolute values for bending moments. Nomenclature for internal forces is the same considered in Chapter 3. In Table 4.5, maximum damper velocities (V_{max}) and forces (F_{max}) are shown for deckend dampers, longitudinal tower dampers and transverse tower dampers respectively. Response of the dampers is shown in absolute values.
Table 4.2 Maximum Relative Displacements [cm] and Velocities [m/sec] in the Structure
CASE  FarFault Ground Motion  NearFault Ground Motion
Δ_{1L}  Δ_{3V}  Δ_{3T}  Δ_{4L}  V_{1L}  V_{3V}  V_{3T}  V_{4L}  Δ_{1L}  Δ_{3V}  Δ_{3T}  Δ_{4L}  V_{1L}  V_{3V}  V_{3T}  V_{4L}
1  12.1  13.8  66.7  8.7  0.51  0.71  1.66  0.31  59.2  26.2  84.5  32.4  1.55  0.97  1.92  0.99
2  13.4  15.1  70.9  5.5  0.49  0.7  1.72  0.25  59.3  33.2  78.2  26.6  1.52  0.82  1.91  0.87
3  12.7  17.7  67.6  9.5  0.56  0.72  1.65  0.27  66.6  45.8  78.7  28.6  1.67  1.36  2.05  0.96
4  13.5  13.9  69.8  8.7  0.5  0.75  1.75  0.3  59.1  25.9  70.8  32.5  1.55  0.96  1.84  0.99
5  13.5  15.4  70  5.4  0.49  0.72  1.76  0.25  59.4  32.6  71.6  26.6  1.52  0.83  1.83  0.87
According to Table 4.2, similar results are obtained for the displacements in the presence of farfault ground motion, for each measured response. Maximum differences are obtained for the longitudinal displacements of the deck (43%), with maximum value for case 3. Similar differences are obtained comparing velocities between the analyzed cases. For nearfault ground motion, more important differences are obtained, and especially for the vertical and transverse displacements of the deck. Analogue differences are obtained for velocities. Furthermore, for both nearfault and farfault ground motions, maximum displacements and velocities are obtained for the transverse displacements of the deck, independent on the damper layout. Likewise, it is confirmed that the worse condition is obtained for case 3, and the best results are obtained for cases 1, 2 and 5, for both farfault and nearfault earthquakes. In this sense, comparing cases 2 and 5, it is obvious that practically the same maximum responses are obtained in both situations
Table 4.3 Maximum Main Forces on the Structure – FarFault Ground Motion
CASE  M_{maxtower}^{a, c} [MN.m]  M_{maxtower}^{a, d} [MN.m]  M_{maxdeck3}^{e} [MN.m]  N_{maxtower}^{a} [kN]  N_{maxdeck}^{b}[kN]  N_{maxcable} [kN]
1  189.9  341.5  31.0  161400  27900  6970
2  187.2  414.2  33.1  163400  29100  6800
3  177.0  428.2  33.4  169400  35300  6800
4  204.7  403.2  31.7  163000  28800  7070
5  187.4  405.5  33.6  163000  29000  6830
Table 4.4 Maximum Main Forces on the Structure – NearFault Ground Motion
CASE  M_{maxtower}^{a, c} [MN.m]  M_{maxtower}^{a, d} [MN.m]  M_{maxdeck3}^{e} [MN.m]  N_{maxtower}^{a} [kN]  N_{maxdeck}^{b}[kN]  N_{maxcable} [kN]
1  536.2  435.9  63.2  189400  34000  8400
2  581.1  419.3  70.0  184000  34500  8600
3  606.4  485.5  73.5  189000  41600  8300
4  518.2  418.4  62.7  188200  33800  8270
5  580.2  421.1  70.3  186000  34300  8620
^{a} At the tower base ^{c} In the bridge plane ^{d} Outofplane
^{b} At the towerdeck level  Implies compression ^{e} At the midspan
The analysis of the internal forces shows again the worse condition obtained with case 3. For farfault ground motion, the best results are obtained with case 1, on the contrary of the nearfault ground motion, in which minimum responses are obtained with cases 2 and 4. Likewise, the analysis of the maximum internal forces shows more important differences than the analysis of displacements and velocities. On the other hand, comparing farfault with nearfault ground motions, it is interesting to observe that maximum bending moments of the towers are obtained at the base in the longitudinal direction (inplane) for the nearfault condition; on the contrary of the case of the farfault condition, in which maximum bending moments are obtained in the transverse direction (outofplane). This implies that the selected dampers are more effective in reducing the inplane bending moments of the towers for farfault ground motion, independent on the damper layout, because according to the undamped analysis of the bridge models, for both farfault and nearfault ground motions, maximum moments of the towers were always obtained in the longitudinal direction (inplane). Likewise, as happens with the previous results, maximum responses are always obtained for nearfault ground motion.
Table 4.5 Maximum Damper Forces [kN] and Velocities [m/sec]
CASE  Farfault ground motion  Nearfault ground motion
Deckend
damper
Long tower
damper
Transv tower
damper
Deckend
damper
Long tower
damper
Transv tower
damper
V_{max}  F_{max}  V_{max}  F_{max}  V_{max}  F_{max}  V_{max}  F_{max}  V_{max}  F_{max}  V_{max}  F_{max}
1  0.28  16000          0.94  29100
2  0.23  14400  0.14  11100      0.83  27300  0.43  19600
3  0.26  15300  0.14  11100      0.91  28700  0.33  17300
4  0.28  16000      0.047  6500  0.94  29100      0.072  8070
5  0.23  14500  0.14  11100  0.048  6600  0.82  27200  0.42  19500  0.075  8200
Results observed in Table 4.5, show again maximum damper forces and velocities obtained for nearfault ground motion. The highest velocities are obtained for deckend dampers, independent on the damper layout case, with values up to 2.75 times the velocity of the longitudinal tower dampers (case 3, nearfault ground motion). The lowest damper velocities are obtained for transverse dampers at the towerdeck connection, with differences up to 5.6 times compared with longitudinal velocities (case 5, nearfault ground motion). Of course, an analogue situation is experienced with the damper forces, with peak values obtained for deckend dampers, followed by longitudinal dampers at the towerdeck connection and transverse dampers respectively. Comparing the analyzed cases, it is easy to see that the best results are obtained, for farfault and nearfault ground motions, with cases 2 and 5. It is important to say that damper forces are a condition that cannot be forgotten, because the price of the dampers are directly related with their capacity, and for that reason we are interested in the lowest damper forces.
As a conclusion of the analysis of time histories and maximum responses obtained, cases 2 and 5 are the best options that minimize the response of the structure and dampers, for both farfault and nearfault ground motions. Differences on the maximum responses between these cases are absolutely negligible, and considering that the minimum number of dampers (involving a lower price) is the optimal solution; it is evident that case 2 is the best choice.
The chosen damper layout means a solution implying inplane location of the dampers, that is to say, a negligible effect of the transverse protection that was the proposal of case 5. As example, Fig. 4.9(a) shows a comparison of the damped and undamped maximum displacements of the deck for both longitudinal and transverse directions; and Fig. 4.9(b) shows bending moments at the tower base for both inplane and outofplane directions respectively.

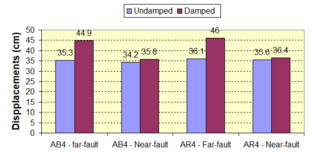

(a) Maximum displacements of the deck
(b) Maximum bending moments at the tower base

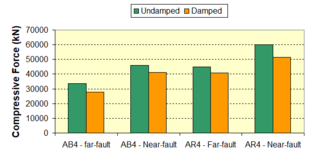

Fig. 4.9 Comparison of Maximum Responses for Damped and Undamped Cases – AB4 Model

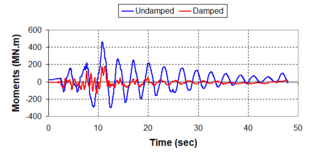

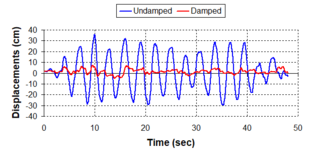

The analysis was performed for AB4 model, considering the event Gatos as input ground motion. For the damped analysis, layout of case 5 was applied, that is to say, both longitudinal and transverse protection of the bridge with fluid viscous dampers, according to Table 4.1.
Results of this comparison are evident. In the case of maximum displacements of the deck, 70% reduction between the undamped and damped longitudinal displacements is obtained. For the transverse displacements of the deck at the midspan, reduction of 10.5% is obtained. Observing Fig. 4.9(b), 64% reduction of inplane bending moments at the tower base is obtained; and 6.4% reduction for outofplane bending moments. Similar results are obtained if farfault ground motions are considered. In other words, really important reductions of the seismic response are experienced in the longitudinal direction, as long as reductions in the transverse direction are very little, even if special dampers are located in the transverse direction. Those results are confirmed with the analysis of the damper forces (Table 4.5), in which maximum velocities and damper forces were obtained for the longitudinally located dampers, implying lower seismic response. As a conclusion, transverse dampers are not efficient in this case, and only inplane layout is enough for an adequate protection.
The reason why transverse dampers are not very efficient can be explained in the fact that those devices are located at the towerdeck connection, that is to say, as part of the structure. This means that motion of transverse dampers, as rigid body, is governed by motion of the tower at that level, as well as the deck motion; and for that reason, energy dissipation is controlled by relative displacements between the lower strut of the tower and the deck. In other words, tower, deck and dampers move jointly during seismic events, and energy dissipation occurs when relative displacements between those elements happen. A similar situation occurs with longitudinal dampers located at the towerdeck connection. However, in this case, more important velocities and damper forces are reached, with the subsequent higher energy dissipation compared with the transverse dampers. The highest velocities and damper forces are reached for deckend dampers, and of course, higher energy dissipation is experienced, aspect that can be confirmed with the important seismic response control appreciated in Tables 4.2 to 4.4. In this case, longitudinal dampers are located between the deckends and the abutments, that is to say, those devices cannot be considered as part of the structure, with higher relative displacements and the subsequent higher energy dissipation. In other words, deckend dampers imply one fixedend and one movableend. Tower dampers in both longitudinal and transverse directions imply movableends. As a conclusion, longitudinal dampers at the deckends are the most efficient devices, dissipating the largest amount of energy. Longitudinal dampers at the towerdeck connection increase the seismic response control basically reducing displacements of the deck.
Summarizing, damper layout considering devices located in the longitudinal direction, on towers and deckends, permits an efficient seismic response control, being the optimal solution. Fig. 4.10 shows the layout of the supports and damper devices at the deckends and at the towerdeck connection.
(b) Detail A
(c) Detail B
Fig. 4.10 Optimal Layout of the Dampers
Position of the damper at the towerdeck connection considers an oblique location. Of course, it is possible to locate those devices considering other proposals; however this layout is simple for repairing or maintenance. This configuration needs to be considered only as basic or schematic solution, because definitive position and the main details must be materialized according to the definitive design, manufacturer’s specifications and constructive issues.
The exposed analysis represents the general tendency of cablestayed bridges considering different layouts of supports and dampers. The analysis was performed using the worse conditions for both farfault and nearfault ground motions according to the selected earthquake database, and of course, some variations may be experienced if different conditions are considered. Regarding the bridge models, similar conclusions may be obtained if AR4 bridge is analyzed, according to the results of Chapter 3.
An exhaustive modal analysis was performed for the undamped bridge models in Chapter 3. That study left clear the importance of an adequate modal analysis as first step in the nonlinear seismic analysis of cablestayed bridges.
Incorporation of additional damping devices, and specifically fluid viscous dampers, does not change the structural period because of viscous damping is 90º outofphase with respect to the structural forces [Lee and Taylor, 2001]. However, modification of the support conditions at the towerdeck connection by roller supports inherently includes modal changes. For that reason, considering the optimal damper layout for both AB4 and AR4 bridge models, a modal analysis is performed. The aim of this study is to show results of natural periods, modal shapes and modal damping for those structures. Because of the same general conclusions of the modal analysis for the undamped cases are valid in this case, a brief summary of the main results is exposed.
Due to its accuracy and information regarding the spatial distribution of the dynamic loads, Ritzvector analysis is applied considering the stiffness at the end of the nonlinear static analysis. The analysis took into account the necessary starting load vectors, including loads applied on elements, links and dampers. Modelling, loads, materials and general properties are the same considered before.
Table 4.6 shows natural periods and nature of the modal shapes for the first 15 modes, in which some changes on the natural periods for both bridge models compared with the undamped cases are obtained. As was explained, those changes are in accordance with the change of the support conditions at the towerdeck connection, which enlarges the fundamental period for both structures. It is observed a higher fundamental period for AB4 bridge (6.0 sec) compared with AR4 bridge (3.24 sec). This implies for these new conditions, that AR4 model is longitudinally stiffer than AB4 model, aspect that can be explained because of the intrinsic additional stiffness provided by the shortest cables of the harp pattern in the presence of roller supports at the towerdeck connection. For fixedhinge connections, as happens with the undamped cases, this additional stiffness is not obvious, as can be seen in Chapter 3. In this sense, it was demonstrated that the stay spacing was not decisive on the determination of the fundamental periods of cablestayed bridges, with higher periods obtained for the harp pattern, if fixedhinge connections at the towerdeck level are employed. In other words, a flexibility increase implies more incidence of the longitudinal stiffness provided by the stay cable layout.
Table 4.6 Natural Periods and Modal Shapes for Damped Models
Mode  AB4 Bridge  AR4 Bridge
Period (sec)  Nature of modal shape  Period (sec)  Nature of modal shape
1  6.00  Deck Long  3.24  Deck long
2  2.78  Deck Tr  2.74  Deck Tr
3  2.33  Tower Tr  2.32  Tower Tr
4  2.11  Deck Vert  2.14  Deck Vert
5  1.39  Deck Tr + Cable Tr  1.33  Deck Vert + Cable Long
6  1.33  Cable Tr  1.27  Deck Tr + Cable Tr
7  1.33  Cable Tr  1.22  Cable Tr
8  1.33  Cable Tr  1.22  Cable Tr
9  1.33  Cable Tr  1.22  Cable Tr
10  1.29  Cable Long + Cable Tr  1.21  Cable Tr
11  1.29  Cable Tr  1.19  Cable Long
12  1.29  Cable Tr  1.19  Cable Long
13  1.29  Cable Tr  1.19  Cable Long
14  1.29  Cable Tr  1.18  Cable Long
15  1.27  Cable Long  1.16  Cable Tr
Long: Longitudinal Tr: Transverse Vert: Vertical
Modes 2, 3 and 4 are very similar on both bridges; with more important differences for the natural periods of the cables. Those cable periods are very closespacing, a vibrational characteristic of cablestayed bridges. For both models, it is observed that modes higher than 5 represent cable modes.
The modal analysis takes into account the modified stiffness matrix, that is to say, the stiffness matrix at the end of the nonlinear static analysis. This point is very important, because if not, important differences can be obtained. The modal analysis is linear, and if it starts from zero initial conditions, the important geometric nonlinearities that cablestayed bridges experience are not considered, and especially nonlinearities due to cable behaviour, with the imprecision involved.
Table 4.7 Critical Damping Ratios – Damped Cases

Modal damping exposed in Table 4.7 was obtained applying the empirical formulation by Kawashima et al (1993). In general terms, critical damping ratios for the damped cases are different compared with the undamped cases, with the exception of damping associated with transverse bending vibrations.
Damping associated to vertical bending vibrations for the damped models is lower than that obtained with the undamped cases, and especially AB4 model. An opposite situation occurs with damping associated to torsional oscillations, in which damping for the undamped models are almost 50% the damping of the damped cases.
Point 4.3 demonstrated that the best damper layout corresponds to longitudinal dampers located at the deckends and at the towerdeck connection. However, the best option necessarily includes selection of the optimal damper parameters, considering that capacity of damping devices depends on the specific damping coefficient C and velocity exponent N. An adequate selection of those parameters is not trivial, and for that reason the aim of this part is to select the best combination of C and N that minimize the seismic response of the structures as well as the response of the dampers for both farfault and nearfault ground motions. It is known that high control of the seismic forces into the structure implies higher damper forces, which necessarily requires higher damper capacities. As a result, an adequate selection of the damper parameters is essential to avoid wrong designs with the subsequent uncertainty about the seismic behaviour.
To select the best damper parameters, a parametric analysis is conducted, in which maximum responses of the structure and dampers are analyzed by means of variation of the desired response as function of the damping coefficient C for different velocity exponents N, including the linear case and the extralow velocity exponent. An optimization procedure is then applied to select the available options that are compared in order to choose the optimal parameters. Also, influence of the velocity exponent on the seismic response is especially analyzed.
The analyses are performed using AB4 model, and considering that the seismic response of AR4 model is similar, according to Chapter 3. The optimal damper layout previously analyzed is considered here, taking into account the same specifications for all the dampers. The geometry, structural modelling, loads and combinations, materials and analysis hypotheses are the same considered before. All the analyses are performed using the code SAP2000, and considering all available nonlinearities. As seismic input, the worse conditions for both farfault and nearfault ground motions are applied, meaning that the orthogonal threecomponent earthquakes of Event 5 (farfault) and Gatos (nearfault) are used again. Nonlinear direct integration time history analysis is applied for all the analyses, using the HilberHughesTaylorα stepbystep integration method to solve the equations of motion. Time integration parameters considered to reach an accurate convergence are 0.02 sec timestep size, 0.2 numerical damping, 0.02 sec maximum substep size, 0 sec minimum substep size, 70 and 140 maximum iterations per substep for farfault and nearfault ground motions respectively, and 1x10^{4} and 1x10^{3} iteration convergence tolerance for farfault and nearfault ground motions respectively. Damping mechanism is considered as Rayleigh’s type, according to the modal damping previously obtained.
In order to consider representative possibilities of linear and nonlinear viscous damping, damping coefficients between 5 and 50 MN/(m/sec)^{N}, and velocity exponents between 0.015 and 1.0 are studied, implying commercial alternatives for the dampers, currently available according to some manufacturers. Those velocity exponents cover a widerange, from linear to highly nonlinear dampers. More than 40 nonlinear analyses were performed, implying more than 120 hours of computer time.
Figs. 4.11 to 4.14 show results of the analyses for the maximum responses of the structure, considering those maxima as absolute values, in terms of longitudinal and vertical displacements of the deck, as well as inplane bending moments and axial forces of the towers. Those results are representative of the seismic response of the model.

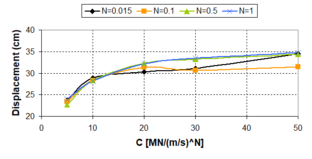

(a) Farfault ground motion
(b) Nearfault ground motion

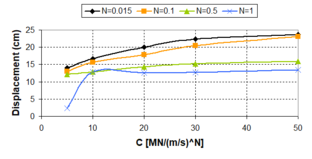

(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.12 Maximum Vertical Displacements of the Deck at the MidSpan

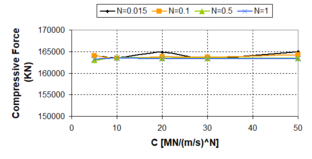

(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.13 Maximum Axial Forces at the Tower Base
(a) Farfault ground motion
(b) Nearfault ground motion

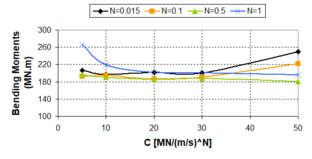

Fig. 4.14 Maximum InPlane Bending Moments at the Tower Base
Longitudinal displacements of the deck decrease as damping coefficient increases. For C > 30 MN/(m/sec)^{N }displacements become independent on the damping coefficient, for both, farfault and nearfault ground motion, which implies that control of longitudinal displacements of the deck cannot increase for damping coefficients higher than 30 MN/(m/sec)^{N}. For farfault ground motion, maximum displacements tend to 10 cm for high damping coefficients. In the case of nearfault ground motion, maximum displacements of the deck tend to 20 cm for high damping coefficients, independent on the velocity exponent N, as happens with the farfault condition. The analysis of the velocity exponent N shows a general tendency in which lower deck displacements are achieved with lower velocity exponents for farfault ground motion. An opposite behaviour occurs with nearfault ground motion, especially for C < 20 MN/(m/sec)^{N}. This behaviour can be explained in the fact that velocities near to 1 m/sec are demanding the dampers for the nearfault condition, which implies that higher forces are demanding the dampers for high velocity exponents, implying lower deck response; on the contrary of the case of the farfault ground motion.
Maximum vertical displacements of the deck tend to increase as the damping coefficient increases. This is true up to damping coefficient of 30 MN/(m/sec)^{N} , and constant values of the maximum vertical displacements are experienced for higher values of C, for both farfault and nearfault ground motions. In general terms, for the farfault condition, lower vertical displacements occur if linear exponents are used, on the contrary of the case of the nearfault condition, in which lower vertical displacements are obtained with highly nonlinear exponents. This behaviour is especially evident for farfault ground motion, and represents an opposite situation compared to the longitudinal deck displacements. As a conclusion, it seems to be that high control of the longitudinal deck displacements implies low control of the vertical deck displacements, which explains the seismic behaviour of the deck.
The analysis of the maximum compressive forces of the deck shows a characteristic behaviour in which maximum tower forces are independent on the damping coefficient and velocity exponent, especially for farfault ground motion. For nearfault ground motion, this is true for C < 20 MN/(m/sec)^{N}. For higher damping coefficients, compressive forces are independent on the damping coefficient, but dependent on the velocity exponent. In fact, if C > 20 MN/(m/sec)^{N }, lower compressive forces are obtained for more linear velocity exponents.
Maximum inplane bending moments at the tower base show more irregular behaviour, especially for nearfault ground motion. For farfault ground motion, tower moments are independent on the damping coefficient for N = 0.5. For N = 1, tower moments are independent on the damping coefficient if C > 15 MN/(m/sec)^{N}. For highly nonlinear exponents of N (0.1, 0.015), tower moments are independent on the damping coefficient if C < 30 MN/(m/sec)^{N}. In spite of the complex behaviour of the tower moments as function of the damping coefficient and velocity exponent, it seems to be that lower tower moments are obtained for linear damper behaviour if the presence of high amount of damping; on the contrary of the case of nearfault ground motion, in which lower tower moments are obtained for highly nonlinear damper behaviour and C > 30 MN/(m/sec)^{N}.
Figs. 4.15 to 4.18 expose the seismic response of the dampers, in terms of maximum damper forces and velocities as function of the damping coefficient for different velocity exponents. The analysis is performed for both deckend dampers and those located at the towerdeck connection. For simplicity, maximum damper forces and velocities are signed as absolute values. As happens with the maximum responses of the structure, both farfault and nearfault ground motions are analyzed, considering Event 5 and Gatos respectively. Damping coefficients vary from zero to 50 MN/(m/sec)^{N}, and the same velocity exponents considered before have been applied here.
Results of the analysis of the damper forces (Figs. 4.15 and 4.16) show a similar behaviour for all the dampers. The linear response of the damper forces with C is obvious since the constitutive equation that governs the response of the dampers with velocity. Of course, maximum damper forces are obtained for the highest damping coefficient. Likewise, it is observed an important effect of the velocity exponent on the damper forces. In fact, lowest damper forces are obtained for linear dampers, as long as highest damper forces are observed for extralow velocity exponent for both, farfault and nearfault ground motion. This implies less than 1 m/sec operating velocities inside the dampers according to results exposed in Chapter 2, even for nearfault ground motion. According to this, if only the damper forces are considered, the linear solution for the dampers is the best option. A comparison between farfault and nearfault conditions shows similar responses for highly nonlinear dampers, and more important differences for higher velocity exponents, in which the maximum responses are achieved for the nearfault condition.

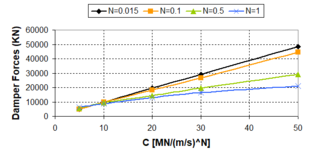

(a) Farfault ground motion
(b) Nearfault ground motion

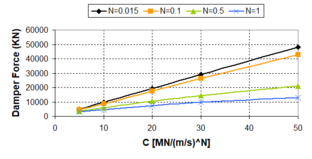

Fig. 4.15 Maximum DeckEnd Damper Forces

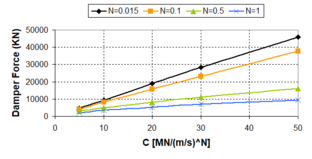

(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.16 Maximum Damper Forces at the TowerDeck Connection
The analysis of the damper velocities (Figs. 4.17 and 4.18) shows an opposite situation compared with the damper forces, that is to say, minimum velocities obtained for highly nonlinear dampers. In other words, minimum velocity responses imply maximum damper forces. Velocities tend to decrease as the damping coefficient increases, although for C > 30 MN/(m/sec)^{N}, velocities are independent on the damping coefficient for both farfault and nearfault ground motion. Likewise, it is clear that maximum damper velocities can be obtained for the nearfault condition.
As a summary, higher damping coefficients permit a better structural control, mainly with longitudinal displacements of the deck, but also an increase of the damper forces and a decrease of the damper velocities. The effect of the velocity exponent on the seismic response is more complicated; although it seems to be that an efficient control of the damper forces can be achieved selecting adequate velocity exponents.
(a) Farfault ground motion
(b) Nearfault ground motion

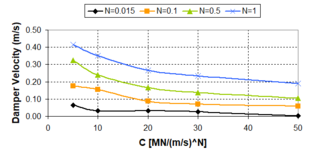

Fig. 4.17 Maximum DeckEnd Damper Velocities
(a) Farfault ground motion
(b) Nearfault ground motion
Fig. 4.18 Maximum Damper Velocities at the TowerDeck Connection
Selection of the optimal damper parameters necessarily consists in obtaining an efficient control of both the structural response and the damper response. In this sense, optimization techniques can be employed in this task. It seems to be that a reasonable approximation is to minimize the maximum longitudinal displacements of the deck as characteristic measure of the structural response, and to minimize the maximum damper forces as characteristic measure of the damper response; considering those maximum responses as absolute values for simplicity. By this way, we can define the longitudinal deck displacement matrix A, in which a_{ij} represents the maximum absolute longitudinal displacement of the deck [cm] for damping coefficient i and velocity exponent j. Similarly, it is possible to define the damper force matrix B, in which b_{ij} represents the maximum absolute damper force [kN] associated to the damping coefficient i and velocity exponent j. Thus, defining matrix F = AB, the task is to seek the minimum values of F. This simple procedure can be applied separately for deckend dampers as well as the dampers located at the towerdeck connection, for farfault and nearfault ground motions.
Of course, this simplified approximation considers that the main parameters that affect both the seismic response of the structure and the seismic response of the dampers are conditioned by displacements of the deck and forces on the dampers. Approximations considering more sophisticated optimization techniques can also be applied, as well as energy approaches; however, for simplicity, the procedure here explained was used.
C  N =0.015  N =0.1  N =0.5  N =1.0
5  58443  64656  88740  138305
10  76235  70080  80520  124550
F =  20  117730  122500  73830  112420
30  255200  179520  79200  109312
50  259200  265360  103880  106110
Here, we can use the same values of matrix A, considering that the same longitudinal displacements are obtained for the deck at the towerdeck connection.
Thus,
C  N =0.015  N =0.1  N =0.5  N =1.0
5  58080  60480  74385  88389
10  75050  66400  64680  92750
F =  20  115900  109900  56304  81620
30  249920  156400  61050  78400
50  248400  233740  79380  76950
In those analyses, units of C are [MN/(m/sec)^{N}].
Values signed in green represent good candidates that minimize both maximum longitudinal displacements of the deck and maximum damper forces. C = 5 is not recommended because of the small energy dissipation associated. This implies that the optimal solution, for all damper locations, seems to be C = 10 or C = 20. It is interesting to observe that the linear solution (N = 1) is not an optimal value, and for that reason, the best candidates for the velocity exponent are N = 0.1 and N = 0.5. It is clear that C = 10; N = 0.1 is the same as C = 20; N = 0.5 for both deckend dampers and dampers located at the towerdeck connection. If we consider more structural response parameters, it is possible to achieve the desired optimal solution. Thus, employing results obtained from the parametric analysis, it is clear that the best option to control the vertical displacements of the deck is N = 0.5 and C ≤ 30. For the tower moments, the best option is N = 0.5 or N = 0.1 and 10 ≤ C ≤ 30. For deckend damper forces, N = 0.5 and C ≤ 30 is a good solution. For deckend damper velocities, an adequate contro
