Abstract

New data on the distribution of the endemic Asian rodents zokors (Myospalax sp.) in Eastern Russia (Transbaikalia and Khanka Plain) based on new taxonomic, genetic and morphological research are presented in this article. Both karyotype and mtDNA markers and morphological characteristics (craniometry) were used for species identification. The following four distinct species inhabit this region: Myospalax aspalax , Myospalax armandii , and Myospalax epsilanus in south Transbaikalia and Myospalax psilurus in Khanka Plain. Maps of species distribution and a list of localities for genetically and morphologically typed specimens are presented.

Keywords

Myospalax ; Genetic markers ; Differentiation ; Geographic distribution

Current strategies for rare and endangered species protection should be based on the knowledge of their genetic and systematic status and reliable information about their distribution and ecological condition. This is not the case for all “Red Book” species of mammal fauna in the Far East. Such species include zokor, a representative of a well-known group of rodents that have inhabited the steppes and forest-steppes of Eurasia since the Pliocene. They are members of an endemic rodent group in East Asia and are highly specialized and adapted to underground life. The systematic position of the group is not clear; it may be an independent suborder of rodents, a special family within Muroidea or a subfamily of Cricetidae (Gambaryan, 1982 ; Gromov and Erbaeva, 1995 ; Pavlinov and Lissowsky, 2012  ;  Pavlinov et al ., 1995 ).

According to recent studies based on molecular genetic markers, the modern zokor is regarded as a member of the Spalacidae mole rat family as a subfamily of Myospalacinae (Jansa and Weksler, 2004  ;  Norris et al ., 2004 ) represented by one (Myospalax ) or two (Myospalax and Eospalax ) genera. Modern zokors consist of no more than 7–10 species ( Wilson and Reeder, 2005 ). The main ranges of these species are in China and Mongolia ( Batsaikhan et al ., 2010  ; Smith and Xie, 2013 ; Wilson and Reeder, 2005  ;  Zhang et al ., 1997 ) (Fig. 1 ). Russia contains only peripheral parts of its habitat. The boundaries of species ranges need to be defined further.

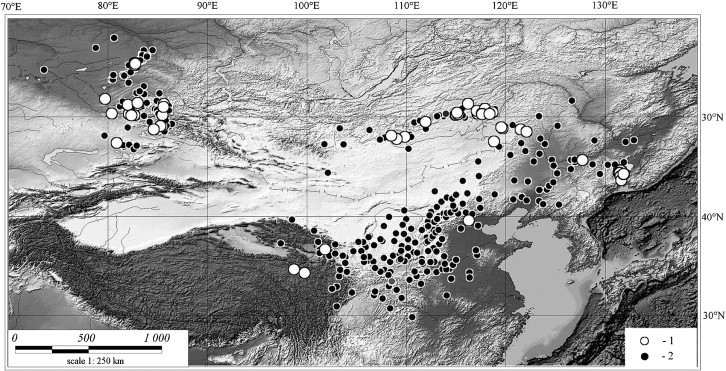

Cadastral map of the zokor (Myospalacinae) geographic range.


Fig. 1.

Cadastral map of the zokor (Myospalacinae) geographic range.

(Reproduced from (Puzachenko et al., 2009 ), composed by collection materials from ZM Moscow State University (Moscow), the Zoological Institute RAS (St. Petersburg), IBSS FEB RAS (Vladivostok), Siberian Zoological Museum Institute of Systematics and Ecology of Animals SB RAS (Novosibirsk) and materials from http://www.wwfchina.org/csis/search/english/namedetail.shtm , http://arctos.database.museum/SpecimenDetail.cfm and literature data. 1 — Location of examples sampled for morphometric analysis, 2 — the locations of zokors by literature data and collection materials).

Genetic and morphological studies in recent years by the Laboratory of Evolutionary Zoology and Genetics IBSS FEB RAS and Laboratory of Biogeography IGRAS clarified the taxonomic position and phylogenetic relationships of the group, identified new species of fauna of Russia and therefore more accurately delineated the boundaries of the zokor Myospalax in Eastern Russia.

In south-eastern Transbaikalia a previously unknown genetic form of zokor (Korablev and Pavlenko, 2007a  ;  Korablev and Pavlenko, 2007b ) was found. Subsequently, on the basis of morphological studies, it was identified as the new-to-Russian fauna species Armands zokor (Myospalax armandii Milne-Edwards 1867) ( Puzachenko et al ., 2009  ;  Puzachenko et al ., 2011 ). An integrated genetic (study of chromosome sets, electrophoretic variants of blood proteins as biochemical markers of genes and RAPD-PCR) and morphological (craniometry, the structure of the dental system and the qualitative characteristics of the individual structures of the skull) analysis was performed. The obtained data classifies the “Primorsky” and “Transbaikal” peripheral populations of Manchu zokor as the separate species Myospalax psilurus Milne-Edwards in 1874 and Myospalax epsilanus Thomas 1912, respectively, or as forms in statu nascendi within the superspecies Myospalax psilurus ( Pavlenko and Korablev, 2003 ; Pavlenko et al ., 2014  ; Tsvirka et al ., 2011  ;  Puzachenko et al ., 2014 ). The pattern of differentiation based on the variation of the mitochondrial genome markers, the cytochrome b (Cyt b) gene and a hypervariable part of the control region ( Tsvirka et al ., 2010  ; Tsvirka et al ., 2012  ; Tsvirka et al ., 2013  ;  Tsvirka et al ., 2014 ) corresponds with the conclusions drawn from the above indicators.

Available data indicate that in this region (south-eastern Transbaikalia and south-western Primorye) and adjacent areas of China and Mongolia, there are four genetically and morphologically discrete zokor taxa of the following species: Myospalax aspalax (Pallas 1776), M. armandii (Milne-Edwards 1867), M. psilurus (Milne-Edwards, 1874) and M. epsilanus (Thomas, 1912).

A list of the localities from which genetically and morphologically typed material originates is provided in Table 1 . Variants in the karyotype are indicated according to their sources (Korablev and Pavlenko, 2007a ; Korablev and Pavlenko, 2007b ; Korablev et al ., 2009  ; Pavlenko et al ., 2014  ;  Puzachenko et al ., 2014 ). Electrophoretic variants of transferrin are provided in accordance with the scheme quoted in the literature (Pavlenko and Korablev, 2003 ; Pavlenko et al ., 2008  ; Pavlenko et al ., 2014  ;  Tsvirka et al ., 2009 ). Species affiliation is based on morphological characteristics (Puzachenko et al ., 2009  ;  Puzachenko et al ., 2014 ). Molecular genetic characteristics correspond to Tsvirka et al ., 2011  ;  Tsvirka et al ., 2014 . The numeration in the table corresponds to that in Fig. 3  ;  Fig. 4 .

Table 1. Results of the genetic and morphological typing of zokors from the main locations in Eastern Russia.
No. Sampling location Code Karyotype TF Morph. RAPD Сyt b C-reg
1 Russian, Primorsky Krai, Pogranichny district, surroundings of Boykoe locality PBK 2n = 64 NFa = 106–108 B psil psil psil psil
2 Ibid, Pogranichny district, Pad Karantinnaya PKA Ibid B psil psil psil psil
3 Ibid, Pogranichny district, Pad Gladkaya PGL Ibid B psil psil psil psil
4 Ibid, Pogranichny district surroundings of Barabash-Levada and former Reshetnikovo PBL Ibid B psil psil psil psil
5 Ibid, Pogranichny district, surrounding Dukhovskoe PDU Ibid B psil psil psil psil
6 Ibid, Pogranichny district, surroundings of Druzhba locality PDR Ibid B psil psil psil psil
7 Ibid, Khorolsky district, surroundings of Priluki PPL Ibid B psil psil psil psil
8 Ibid, Oktyabrsky district, Ilyichevka village PIL Ibid B psil psil psil psil
9 Ibid, Ussurisky district, surroundings of Krounovka village PKR Ibid B psil psil psil psil
10 Russia, Zabaikalsky Krai, Borzinsky district, surroundings of Tsagan-Oluy village ZTO 2n = 64 NFa = 108–112 C eps eps eps eps
11 Ibid, Borzinsky district, surroundings of Ust-Ozernaya village ZTO Ibid C eps eps eps eps
12 Ibid, Priargunsky district, valley of Kalgukan river ZKL Ibid C eps eps eps eps
13 Ibid, Kalgansky district, surroundings of Kalga village ZKL Ibid C eps eps eps eps
14 Ibid, Kalgansky district, surroundings of Dono village ZBD Ibid C eps eps eps eps
15 Ibid, Aleksandrovo-Zavodsky district, surroundings of Butunai village ZBD Ibid C eps eps eps eps
16 Ibid, Priargunsky district, surroundings of Zargol village ZZG Ibid C eps eps eps eps
17 Russia, Zabaikalsky Krai, Akshinsky district, vicinity of Narasun village, left-bank of Onon river ASNAR 2n = 62, NFa = 100–108 А asp asp asp asp
18 Ibid, Ononsky district, vicinity of Kuranzha ASKUR Ibid. А asp asp asp asp
19 Ibid, Ononsky district, Nizhniy Tsasuchey, right bank of Onon river ASNT Ibid А asp asp asp asp
20 Ibid, Ononsky district, vicinity of Ikaral, right bank of Onon river ASIK Ibid А asp asp asp asp
21 Ibid, Baleysky district, vicinity of Undino Poselie, lower reach of Unda, right bank of Onon river ASUP Ibid А asp asp asp asp
22 Ibid, border of Ononsky, Olovyaninnsky and Borzinsky districts, Adon-Chelon ridge ASAD Ibid А asp asp asp asp
23 Ibid, Krasnokamensky districts, the road between the villages of Kovylii and Margutsek, Klichinsky ridge ARKOV 2n = 62 NFa = 90–92 С1 armd armd armd armd
24 Ibid, Krasnokamensky districts, vicinity of Kovyli, Klichinsky ridge ARKOV Ibid С1 armd armd armd armd
25 Ibid, Krasnokamensky district, 25 km away from Soktuy-Milozan towards Kovyli, Klichinsky ridge ARKOV Ibid С1 armd armd armd armd
26 Ibid, Krasnokamensky district, surroundings of Ust-Tasurkai, valley Alyastuy ARUDB Ibid С1 armd armd armd armd
27 Ibid, Priargunsky district, 29–30 km away from Dosatuy towards Byrka, Verkhnaya Borzya river valley, right bank ARUDB Ibid С1 armd armd armd armd
28 Ibid, Priargunsky district, 10–12 km away from Tselinnoe, Pad Vershina Karaganatu, Klichinsky ridge ARKAR Ibid С1 armd armd armd armd

False (Daursky) zokor, M. aspalax , is distributed in Onon Dauria along the valleys of the Onon River and its tributaries from the left bank in the upper reaches of the Sokhondinsky Reserve area to Alkhanay National Park. Its range continues to the east and between the Onon and Argun rivers to the spurs of the Nerchinsky ridge and Adun-Chelon.

The material genetically and morphologically typed as M. aspalax originated from six locations in the Akshinsky, Ononsky, Borzinsky and Baleysky districts of Zabaikalsky Krai. All of them are located within the range of the previously defined species ( Kirilyuk and Korablev, 2003 ).

M. armandii , initially defined as a new chromosomal form of M. “klichka” ( Korablev and Pavlenko, 2007a ; Korablev and Pavlenko, 2007b  ;  Pavlenko and Korablev, 2005 ), was detected and genetically typed only in animals originating from valleys in the spurs of the Klichkinsky ridge in the Argun River basin (surrounding the Kovyli, Margutsek, Soktuy-Milozan, Dosatuy, Byrka, Pad Karaganatu localities).

This area is located within the previously supposed habitat of the Manchurian zokor (Kirilyuk and Korablev, 2003 ). The species has a presumably extensive habitat in China (Puzachenko et al., 2009 ) (Fig. 2 ). It is possible that the surveyed area in the south-eastern Transbaikal may be isolated from the main range in China.

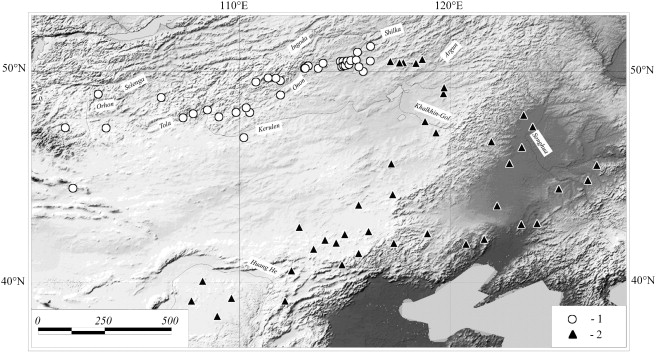

Distribution of false zokor (M. aspalax: 1) and Armands zokor (M. armandii: 2).


Fig. 2.

Distribution of false zokor (M. aspalax : 1) and Armands zokor (M. armandii : 2).

(Reproduced from the collection materials from ZMMSU (Moscow), Zoological Institute RAS (St. Petersburg) and IBSS FEB RAS (Vladivostok), online materials from http://www.wwfchina.org/csis/search/english/namedetail.shtm and http://arctos.database.museum/SpecimenDetail.cfm and the literature (Puzachenko et al., 2009 )).

M. epsilanus dwells in the spurs of the Nerchinsky ridge and to the east and northeast of the Argun River along the Kalga, Kalgukan, Gazimur and Middle and Low Borzya valleys. The genetically and morphologically identified material was from seven locations of the Borzinsky, Alexandro-Zavodsky, Kalgansky, Gazimuro-Zavodsky districts. Part of the M. epsilanus range in Transbaikalia is wedged between the ranges of M. armandii and M. aspalax ( Fig. 3 ).

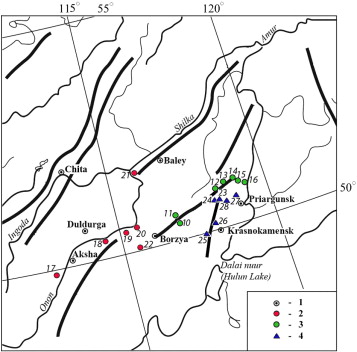

Distribution of the three zokor species in south-eastern Transbaikalia according ...


Fig. 3.

Distribution of the three zokor species in south-eastern Transbaikalia according to morphological and genetic typing.

Symbols: 1 — settlements; 2 — M. aspalax ; 3 — M. epsilanus ; 4 — M. armandii.

The point numbers for material collection correspond to those in the table.

The results of the genetic and morphological studies and field surveys suggest that the habitats of these three species in the respective territories do not overlap; rather, they are delineated by a narrow strip (Fig. 3 ).

M. psilurus inhabits the south of Far Eastern Russian (Primorye). Currently, according to field observations, there are 22 local populations within the two supposedly isolated sections of the habitat. The first section is on Khanka Plain, and the second is in the valley of Krounovka, the right-bank tributary of Razdolnaya River. Zokors from nine of the 22 settlements were included in the genetic and morphological analysis ( Table 1 , Fig. 4 ). The nominative taxon is from the Beijing area of China. In Primorye, there is a peripheral eastern part of the area (Fig. 5 ).

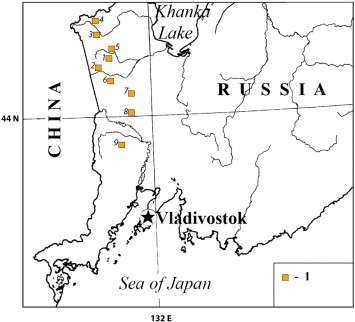

Locations of genetically and morphologically typed settlements of M. psilurus ...


Fig. 4.

Locations of genetically and morphologically typed settlements of M. psilurus (1) in Primorsky Krai.

Numbering corresponds to that in the table and Fig. 5 .


Possible borders of the ranges of M. psilurus (1) and M. epsilanus (2) and the ...


Fig. 5.

Possible borders of the ranges of M. psilurus (1) and M. epsilanus (2) and the place of origin of genetically and morphologically typed samples. 3 — border of areas, 4 — M. epsilanus , 5 — M. psilurus . The numbering of settlements corresponds to that in the table and Fig. 4 .

Reproduced from (Puzachenko et al., 2014 ).

Zokors (Myospalacinae) are considered to be a priority among rodents for the development of measures for the conservation of small mammal biodiversity (Amori and Gippoliti, 2003 ). Valid data on the habitats and taxonomic affiliation of zokor populations inhabiting Eastern Russia are needed to develop such conservation measures. The population of Manchurian zokors on Khanka Plain is included in the Red Book of Russia and the Primorsky region (Kostenko, 2001  ;  Kostenko and Korablev, 2005 ). However, the zokors from Transbaikalia, M. epsilanus and M. armandii, do not have this status yet.

To clarify the boundaries of the species' ranges, complex genetic and morphological studies of zokors from China and Mongolia are required in addition to continued work in south-eastern Transbaikalia (between the rivers Shilka and Argun, in the basin of Onon), as well as in the contact zones of different species.

This work was supported by grants from RFBR (09-04-01303 , 12-04-00795a , 12-04-10047k ) RFFI_GFEN (No. 06-04-39015 ) and FEB RAS (07-III-R-06-048 ; 09-III-B-138 ; 10-III-B-06-107 ; 12-III-R-06-007 ).

The authors express their gratitude to the administration and staff of the Daursky State Nature Biosphere Natural Reserve, primarily V.E. Kirilyuk, for assistance in conducting of the field work.

References

  1. Amori and Gippoliti, 2003 G. Amori, S. Gippoliti; A higher-taxon approach to rodent conservation priorities for the 21st century; Anim. Biodivers. Conserv., 26 (2) (2003), pp. 1–18
  2. Batsaikhan et al., 2010 N. Batsaikhan, R. Samiya, S. Shar, S.R.B. King; A Field Guide to the Mammals of Mongolia; ZSL, London (2010) (307 pp.)
  3. Gambaryan, 1982 P.P. Gambaryan; The position of the genus of zokor (Myospalax ) in the system of rodents. I. Head and subcutaneous muscles  ; Proc. Zool., 115 (1982), pp. 3–22 (Inst USSR)
  4. Gromov and Erbaeva, 1995 I.M. Gromov, M.A. Erbaeva; The Mammals of Russia and Adjacent Territories. Lagomorphs and Rodents; ZIN RAS, St. Petersburg (1995) (522 pp.)
  5. Jansa and Weksler, 2004 S. Jansa, M. Weksler; Phylogeny of muroid rodents: relationships within and among major lineages determined by IBPR gene sequences; Mol. Phylogenet. Evol., 31 (2004), pp. 256–276
  6. Kirilyuk and Korablev, 2003 V.E. Kirilyuk, V.P. Korablev; The boundaries of the ranges of false and Manchurian zokor in Transbaikalia; Proceedings of International Conf. “Teriofauna of Russia and neighboring areas”1, , Nauka, Moscow (2003), pp. 158–159
  7. Korablev and Pavlenko, 2007a V.P. Korablev, M.V. Pavlenko; Genetic characteristics and geographical distribution of zokor Myospalax in Transbaikalia  ; Proceedings of International Conf. “Environmental Cooperation in Chita Oblast (Russian Federation) and Inner Mongolia Autonomous Region in Transboundary Environmental Regions”, Chita, 1 (2007), pp. 188–190
  8. Korablev and Pavlenko, 2007b V.P. Korablev, M.V. Pavlenko; Cytogenetic characteristics and geographical distribution of zokor Myospalax in Transbaikalia  ; Proceedings of International Conf. “Teriofauna of Russia and Neighboring Areas”, Nauka, Moscow (2007), p. 216
  9. Korablev et al., 2009 V.P. Korablev, M.V. Pavlenko, A.Y. Puzachenko, M.V. Tsvirka; Integrated study of zokor Myospalax in Russian part of the Amur Basin  ; III Materials of Interregional Scientific Conf. “Readings from Druzhinin: Integrated Studies for Environment in the Amur Basin”1 (2009), pp. 198–200 (Khabarovsk)
  10. Kostenko, 2001 V.A. Kostenko; Transbaikalian zokor Myospalax psilurus epsilanus  ; The Red Data Book of Russian Federation, AST, Astrel, Moscow (2001), pp. 625–626
  11. Kostenko and Korablev, 2005 V.A. Kostenko, V.P. Korablev; Transbaikalian zokor — Myospalax psilurus epsilanus  ; The Red Data Book of Primorsky Krai: Animals, Apelsin, Vladivostok (2005), pp. 363–365
  12. Norris et al., 2004 R. Norris, K. Zhou, C. Zhou, G. Yang, C. Kilpatrick, R. Honeykutt; The phylogenetic position of the zokors (Myospalacinae) and comments on the families of muroids (Rodentia); Mol. Phylogenet. Evol., 31 (2004), pp. 972–978
  13. Pavlenko and Korablev, 2003 M.V. Pavlenko, V.P. Korablev; Genetic differentiation, systematic position and problem and conservation of peripheral populations of Manchurian zokor Myospalax psilurus (Rodentia, Myospalacinae)  ; Problems of Evolution5, , Dalnauka, Vladivostok (2003), pp. 167–177
  14. Pavlenko and Korablev, 2005 M.V. Pavlenko, V.P. Korablev; Genetic diversity and geographic distribution of zokor Myospalax (Rodentia) in southern Transbaikalia  ; Ecosystems of Mongolia and Frontier Areas of Adjacent Countries: Natural Resources, Biodiversity and Ecological Prospects (2005), pp. 300–302 (Ulaanbaatar)
  15. Pavlenko et al., 2008 M. Pavlenko, V. Korablev, M. Tsvirka, J. Pang; Genetic differentiation of zokors (Rodentia, Myospalacinae) from East Russia: protein electrophoretic markers, karyological and molecular data; Abstr. 11th Intern. Conf. on Rodent Biology “Rodens et Spatiun”1 (2008), p. 57 (Myshkin (Russia))
  16. Pavlenko et al., 2014 M.V. Pavlenko, V.P. Korablev, M.V. Tsvirka; Genetic differentiation and systematics of zokors from Eastern Russia: a comparison of peripheral populations of Myospalax psilurus (Rodentia, Spalacidae)  ; Zool. Zhurnal Russ. J. Zool., 93 (7) (2014), pp. 906–916
  17. Pavlinov and Lissowsky, 2012 I.Ya. Pavlinov, A.A. Lissowsky; The Mammals of Russia: A Taxonomic and Geographic Reference; KMK Scientific Press Ltd, Moscow (2012) (604 pp.)
  18. Pavlinov et al., 1995 I.Ya. Pavlinov, E.L. Yakhontov, A.K. Agadzhanyan; Mammals in Eurasia. I. Rodentia: Taxonomic and Geographic Guide; MSU, Moscow (1995) (240 pp.)
  19. Puzachenko et al., 2009 A.U. Puzachenko, M.V. Pavlenko, V.P. Korablev; Variability of the skulls in zokors (Rodentia, Myospalacinae); Zool. Zhurnal Russ. J. Zool., 88 (1) (2009), pp. 92–112
  20. Puzachenko et al., 2011 A.U. Puzachenko, M.V. Pavlenko, V.P. Korablev, M.V. Tsvirka; Armands zokor Myospalax armandii (Milne-Edwards 1867) — a new species in the fauna of Russia  ; Proceedings of International Conf. “Teriofauna of Russia and Neighboring Areas”, Nauka, Moscow (2011), p. 387
  21. Puzachenko et al., 2014 A.Y. Puzachenko, M.V. Pavlenko, V.P. Korablev, M.V. Tsvirka; Karyotype, genetic and morphological variability in North China zokor Myospalax psilurus (Rodentia, Spalacidae, Myospalacinae)  ; Russ. J. Theriol., 13 (1) (2014), pp. 27–46
  22. Smith and Xie, 2013 A.T. Smith, Y. Xie; Mammals of China; Princeton Univ. Press, Princeton; Oxford (2013) (393 pp.)
  23. Tsvirka et al., 2009 M. Tsvirka, M. Pavlenko, V. Korablev, J. Pang; Molecular-genetic relationships of the zokors (Rodentia, Myospalacinae): analysis of D-loop region polymorphism; Abstr. of International Symposium “Modern Achievements in Population, Evolutionary, and Ecological Genetics”, Vladivostok–Vostok Marine Biological Station, Vladivostok (2009), p. 48
  24. Tsvirka et al., 2010 M.V. Tsvirka, M.V. Pavlenko, V.P. Korablev; Genetic differentiation of the zokors (Rodentia, Myospalacinae) inferred from variation of two mitochondrial DNA markers: cytochrome b and control region; Molecular Phylogenetics. Contributions to the 2nd Moskow International Conference “Molecular Phylogenetics” (MolPhy-2), Torus Press, Moscow (2010), p. 173
  25. Tsvirka et al., 2011 M.V. Tsvirka, M.V. Pavlenko, V.P. Korablev; Genetic diversity and phylogenetic relationships in the zokor subfamily Myospalacinae (Rodentia, Muridae) inferred from RAPD-PCR; Russ. J. Genet., 47 (2) (2011), pp. 205–215
  26. Tsvirka et al., 2012 M.V. Tsvirka, M.V. Pavlenko, V.P. Korablev; Genetic diversity and differentiation of peripheral populations of zokor on the East of Russia. “Regions of new development: theoretical and practical issues of the study and conservation of biological and landscape diversity.”; Collection of Reports [electronic resource] — IWEP FEB RAS (2012), pp. 177–182 (Khabarovsk)
  27. Tsvirka et al., 2013 M.V. Tsvirka, M.V. Pavlenko, V.P. Korablev; Genetics differentiation and systematics of peripheral populations of East Asian endemic rodent Myospalax psilurus (Rodentia, Spalacidae)  ; Abstr. of International Symposium “Modern Achievements in Population, Evolutionary, and Ecological Genetics”, Vladivostok–Vostok Marine Biological Station, Vladivostok (2013), p. 72
  28. Tsvirka et al., 2014 M.V. Tsvirka, M.V. Pavlenko, V.P. Korablev; Molecular genetic methods in the study of variability, differentiation, phylogeny and phylogeography of Zokor (Rodentia, Spalacidae) from East Asia; Materials II Int. Conf. “Modern Problems of Biological Evolution” (2014), pp. 97–101 (Moscow)
  29. Wilson and Reeder, 2005 Mammal species of the world; D.E. Wilson, D.A.M. Reeder (Eds.), A Taxonomic and Geographic Reference (3rd ed.), Johns Hopkins University Press, Baltimore (2005) (2142 pp.)
  30. Zhang et al., 1997 Y. Zhang, S. Jin, G. Quan, S. Li, Z. Ye, F. Wang, M. Zhang; Distribution of Mammalian Species in China; China Forestry Publishing House, Beijing (1997) (280 pp.)
