Thinwalled cylindrical tube structures with particular defects exhibit more stable energy absorption characteristics and lower initial peak loads when subjected to axial impact. The present study systematically investigates the effect of the depth, width, and number of grooves in both internal and external groove structures on the energy absorption characteristics of thinwalled cylindrical tubes made of A6061 under axial impact loading. An expression for predicting the initial peak load is formulated, and its validity is confirmed through experimentation and extrapolation. The results indicate that augmenting the depth, width and quantity of grooves can lower the initial peak load, and the depth of grooves bears the most pronounced impact. The initial load hypothesis is congruent with both experiments and simulations, with a initial peak error of just 7.64%. To affirm the generality of the theoretical computations, eight distinct groups of elongated structural simulations were compared, and the initial peak load's error was scarcely above 10%. This study serves as a point of reference for designing energyabsorbing structures with internal and external grooves when subjected to lowvelocity axial impact.
Keywords: Thinwalled circular tube, internal and external groove, expression for initial peak load, dropweight test, finite element analysis
Vehicle driving safety, transportation of weapons, spacecraft landing softness, and protection of complex equipment all necessitate structural crashworthiness. In unexpected or expected collisions, the modes of damage such as buckling and fracturing of a specific structure are utilized to absorb impact loads and dissipate impact energy during the collision [1]. Circular straight metal tubes are among the most effective structures for absorbing energy and are widely used in energyabsorbing systems because of their stable compression mode and structural adaptability.
The most direct and effective approach to enhance energy absorption characteristics is to improve the structure and dimensions of thinwalled metallic straight tubes. It is recognized that the plastic deformation during energy absorption in straight tubes typically happens in the edge area [2]. Consequently, polygonal crosssection and polygonal edge crosssection thinwalled tubes were developed to increase the plastic deformation in the crosssection of thinwalled tubes [37]. However, when a conical tube structure has more than 11 sides, the potential improvement of energy absorption by increasing the number of angular edges is restricted [8]. To address this limitation, there are two possible solutions: a concave crosssection, for example, a star [9] and crosssection tubes [1012]; or the insertion of a web inside the tube [2]. To avoid the limitation of the number of corner edges added to the web, a variety of crosssectional shapes of thinwalled tubes with multicellular structures have been developed, including triangular [13], square [1420], hexagonal [21], octagonal [22], conical [23] and circular [2,24,25]. The shapes of these multicellular tube structures significantly enhance energy absorption [17,2628]. Increasing the number of edge arrangements in a crosssection leads to a higher stiffness in tubes, resulting in a significant rise in the initial peak load. As a result, reducing the initial peak load while ensuring the energy absorption capacity of buffer structures is essential during the design process.
The most prevalent technique for decreasing the initial peak load is to introduce triggers, stress concentrators, or defects into the buffer structure. Grooving [2933], corrugation [34,35], and gouging [36,37] are among the approaches that can effectively reduce the initial peak load. The grooved triggering method has a broad range of applications. Hosseinipour et al. proposed the use of annularly grooved thinwalled circular tubes with inner and outer walls to enhance energy absorption. The energy absorption mechanism was systematically investigated [2933]. Under quasistatic axial loading, a theoretical model for the initial peak and average loads of the first flexural cycle of a thinwalled cylinder was developed [29,30]. This study discovered that the use of alternating internal and external grooves can result in smoother loaddisplacement curves [30,31], thus affecting the deformation pattern of thinwalled tubes [32,33]. To achieve a practical range of groove lengthtothickness ratios, Darvizeh et al. employed orthogonal experiments to examine the impact of geometrical parameters on thinwalled tube deformation through orthogonal experimental methods. They put forward a mathematical model for energy absorption, taking into account strain hardening. Subsequent analysis confirmed that externally grooved thinwalled tubes prepositioned in advance exhibit stronger energy absorption properties [38]. Montazeri et al. conducted a study comparing the energy absorption characteristics of a dughole tube and a grooved tube. Their numerical simulations and experiments revealed that the internally and externally interleaved grooved thinwalled circular tube exhibited lower initial peak loads when compared to the dughole tube. This finding has been substantiated by previous works [39]. Using Alexander's static crushing model and CowperSymonds' intrinsic model, Zheng et al. created a load prediction model for round tubes subjected to impact loads, taking strain rate effects into account. The model also includes simple expressions for predicting initial peak crushing force for mediumsized thinwalled welded tubes [40]. Wei et al. investigated the average load modelling of round tubes with gradient depth notches by SLM printing of thinwalled round tubes with closed circumferential rectangular slots and gradient thickness defects. The results indicated that changes in groove depth gradient could improve the crush deformation stability [41,42]. Niknejad et al. provided initial peak load expressions for hollow foam tubes and polyurethane foam tubes during the initial fold formation under quasistatic axial loading [43]. Furthermore, Abedi et al. conducted a study on the energy absorption properties of tubes grooved internally and externally and filled with polyurethane foam. Their findings indicated that the energy absorption indexes of the structures with filled foam were enhanced. Additionally, the researchers derived semiempirical expressions for the initial peak load under quasistatic axial loading [44]. To summarise, staggering the internal and external grooves in thinwalled circular tubes can effectively manage compression and collapse deformation, leading to improved energy absorption. Additionally, the theoretical model for average load during quasistatic axial load can achieve more precise predictions. Nevertheless, predicting initial peak loads is challenging, particularly under dynamic impact conditions, and determining the derivation of the theoretical model becomes more difficult. Currently, there are no reports addressing the prediction model for the initial peak load of grooved thinwalled tubes under axial impact loading.
The study's main objective is to develop an initial peak load prediction model for thinwalled circular tubes with internal and external grooves made of A6061, which are subjected to lowvelocity impact. We initially construct nine sample sets incorporating predetermined grooved structural parameters (including groove depth, width and number) applied to thinwalled circular tubes. The energy absorption properties of specimens subjected to impact loading are evaluated via finite element simulation. The initial peak load model incorporates the dimensional parameter of the groove and accounts for strain rate. Bringing validity to the mathematical model of the initial peak load under impact loads, the drop weight testing machine and highspeed camera are used to analyse the crushing deformation of the specimens. The initial model for initial peak load is acquired by enlarging numerous models. The adequacy of the initial peak load mathematical model is confirmed. The multigroup extended module also verifies the applicability of the expression.
Figure 1 illustrates the performance of a uniaxial tensile examination on a sample of A6061 substance according to the GB/T 2282010 and GB/T 29751998 standards. The stressstrain curve and material property parameters are shown in Figure 2 and Table 1, respectively.

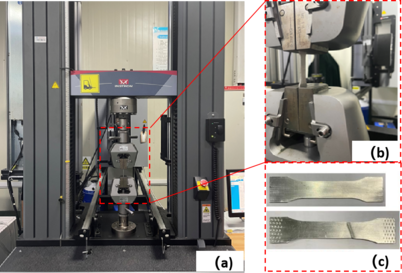

Figure 1. Tensile test of A6061 specimen
Figure 2. True stressstrain curve of A6061
Material  Density (kg/mm^{3})
Young’s modulus (GPa)
Poisson’s ratio
Yield stress (MPa)
Ultimate tensile stress (MPa)

A6061  2.8×10^{6}  68.9  0.33  128  209

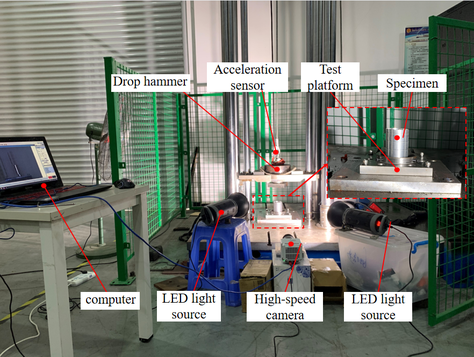

As shown in Figure 3, the test setup includes a dropweight testing machine, a high speed camera, a LED light source device and a computer. The acceleration sensor is placed on the falling hammer to measure the accelerationdisplacement curve of the compression process. The accelerometer records the hammer's deceleration upon colliding with the test specimen during its free fall.
The accelerometer measures the acceleration change and produces a voltage signal. The signal is amplified by a charge amplifier and linked to A1C050 for analogtodigital conversion and computerized data processing. The key apparatus parameters are as follows: (1) Drop hammer: The drop hammer movement direction and installation plane have a vertical accuracy of 0.02mm. The weight of the drop hammer is 76kg. With a 70% collapse distance stiffness consideration for the minimum structure, the drop hammer height of 3.27m was chosen, resulting in a corresponding maximum speed of 8m/s. (2) Highspeed camera: The camera has a resolution of 1280 x 800 and captures at 1000fps. (3) Light equipment LED: The LED has a power of 200W.
Figure 3. Working principle diagram of experimental device
The construction of the grooved thinwalled circular tube is presented in Figure 4, where the length of the thinwalled tube is mm, the thickness is mm, the centre diameter is mm, and the distribution of the groove structure is symmetrical at both ends of the thinwalled tube. The dimensions of the grooves incorporate the groove spacing , width , number , and depth , which complies with the given equation:

(1)

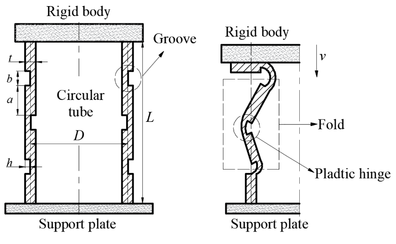

Figure 4. Schematic diagram of the structure of thinwalled circular tubes with internal and external staggered grooves
Based on Eq. (1), it becomes clear that the four variables are not entirely independent of each other. Accordingly, the investigations were evaluated for the number of grooves , width , and depth individually. A summary of the research schedule is presented in Table 2 and the specimens A1A10 are as shown in Figure 5:
(I) To study the effect of the number of grooves : make the width of the grooves mm, the depth of the grooves mm, choose the number of grooves . Equation (1) reveals the corresponding groove spacing to be 14.67mm, 12.29mm, 10.5mm, and 9.11mm, while the experimental program in Table 2 is A1, A2, A3, and A4.
(II) In order to study the effect of groove width , the number of grooves is set to , and groove depth mm. Width is then chosen at 1.5mm, 2mm, 2.5mm, and 5mm. Using Eq. (1), the corresponding groove spacing is found to be 12.79mm, 12.29mm, 11.79mm, and 9.29mm, and the corresponding experimental program is noted in Table 2 as A5, A2, A6, and A7.
(III) Investigating the influence of groove depth : The groove spacing is fixed at mm with grooves, while the width of each groove is 2mm. Substituting values into Eq. (1), the depths are 0.25mm, 0.5mm, 0.75mm and 1mm, corresponding to Table 2's experimental program entries A8, A9, A3, A10.
Variables Number  (mm)  (mm)  (mm)

A1  5  14.67  2  0.75
A2  6  12.29  2  0.75
A3  7  10.5  2  0.75
A4  8  9.11  2  0.75
A5  6  12.79  1.5  0.75
A6  6  11.79  2.5  0.75
A7  6  9.29  5  0.75
A8  7  10.5  2  0.25
A9  7  10.5  2  0.5
A10  7  10.5  2  1

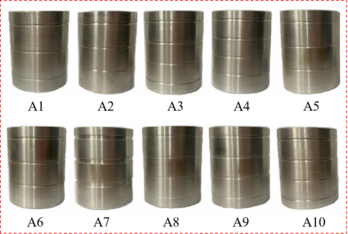

Figure 5. A1A10 specimens
Figure 6 presents the finite element model of a thinwalled circular tube featuring staggered grooves both internally and externally. The explicit finite element programme LSDYNA is used for the simulation. The drop hammer is treated as a rigid body, and the element type is a Solid 185 eightnode hexahedral element. LSDYNA software employs a selection of different materials for various intrinsic models. The A6061 employs the MAT_PLASTIC_KINEMATIC model, which enables the realtime yield strength of the material to adapt to changes in the strain rate. As the panel stiffness exceeds the specimen stiffness, the MAT_RIGID model is selected.
Three contact types are defined in the finite element model: singlesurface contact (ASSC) is utilized for the specimen itself, pointsurface automatic contact (ANTS) is utilized for the contact between the drop hammer and the end face of the specimen, and facetoface contact (TDSS) is utilized for the contact between the base and the bottom face of the specimen. The kinetic and static friction coefficients have been set to 0.2. The solution time has been established as 0.03 seconds with a solution data step size of 1000.

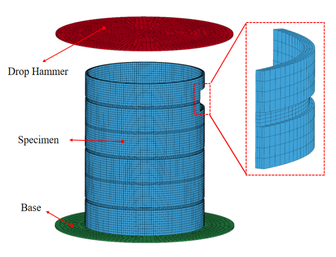

Figure 6. FE model of thinwalled circular tube with internal and external staggered grooves
The size of the grid element greatly affects the calculation results and requires a critical choice. Figure 7 displays the influence of the analytical model A4 on the total energy absorption of the structure, utilizing grid sizes of 1.0mm, 1.5mm, 2.0mm, and 2.5mm. As demonstrated by the figure, the total energy absorption tends to converge when the mesh size is less than 2mm. Furthermore, the calculation time significantly increases with a mesh size of 1mm as compared to 1.5mm. Considering the costs of calculations and requirements for accuracy, a mesh size of 1.5mm aligns best with the simulation's actual requirements.

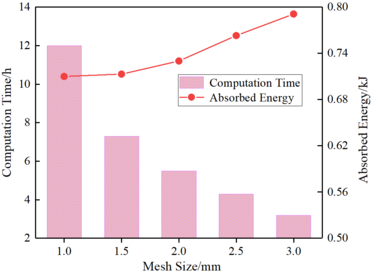

Figure 7. Change rule of calculation results with grid size
Tables 3 to 5 provide a summary of both simulated and experimental results of the initial peak load of the specimens with different number of grooves, width and depth. The data shows that the maximal error value between the experimental and simulation results is only 5.13%, which confirms the reliability of the research results. Incorporating Eq. (1), Table 3 reveals that for a constant notch width , the spacing between notches gradually decreases as the number of grooves increases, and the initial peak load also gradually decreases. Meanwhile, Table 4 indicates that when the number of grooves is fixed, the spacing between grooves decreases with an increase in groove width , resulting in a progressive decrease in the initial peak load. From the data presented in Table 5, it is apparent that the maximum load decreases as the depth of the groove increases. It is worth noting that the number and width of the grooves have a minimal impact on the initial peak load, whereas the depth of the grooves has the most significant effect.
Number  Groove number ()  Initial peak load (kN)  Error (%)

Experiment  Simulation
A1  5  25.91  25.82  0.35
A2  6  24.78  25.14  1.43
A3  7  24.28  24.53  1.02
A4  8  23.13  23.32  0.81
Number  Width (mm)  Initial peak load (kN)  Error (%)

Experiment  Simulation
A5  1.5  25.01  25.21  0.79
A2  2  24.78  25.14  1.43
A6  2.5  23.91  24.53  2.53
A7  5  23.23  23.62  1.65
Number  Depth (mm)  Initial peak load (kN)  Error (%)

Experiment  Simulation
A8  0.25  38.69  40.78  5.13
A9  0.5  32.72  33.23  1.53
A3  0.75  24.28  24.53  1.02
A10  1  16.43  16.85  2.49
In this study, 10 specimens (A1A10) with the same structural dimensions as those calculated by simulation were selected for testing, and the test results were then compared with the simulation results, as shown in Figure 8. Overall, the trend of the loaddisplacement characteristics of each specimen test corresponded well with the simulation predictions. Additionally, Tables 3 to 5 present the comparable experimental and simulated values of the initial peak load for each specimen. Furthermore, there are variations in folding positions apart from the first position, which is essentially in line with the simulation results. Moreover, the deformation patterns of a few specimens, such as A1, A2, A5, and A6, significantly vary from the simulation calculations, possibly owing to the accuracy of specimen machining and the stability of the impact testing apparatus. However, based on the loaddisplacement curve, it is apparent that the test findings and simulation outcomes correspond substantially.

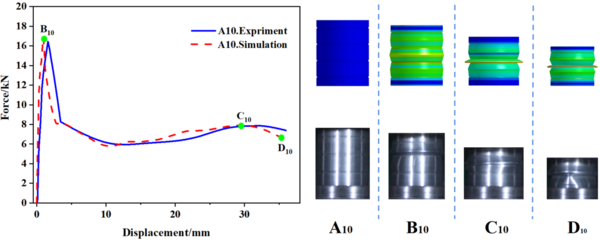

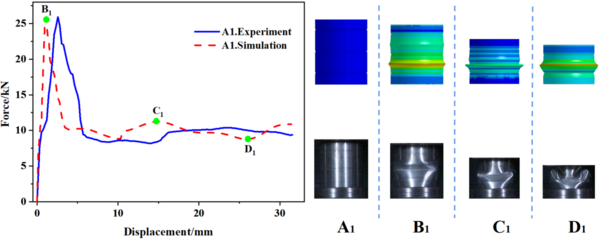

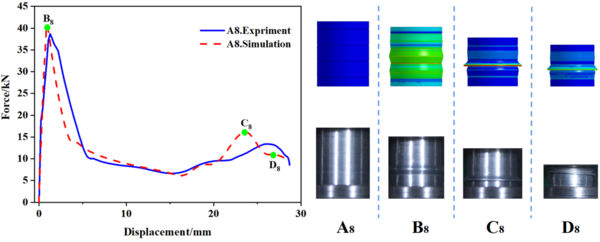

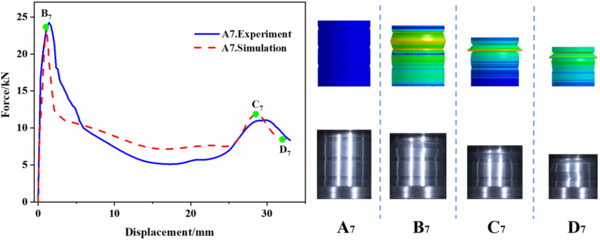

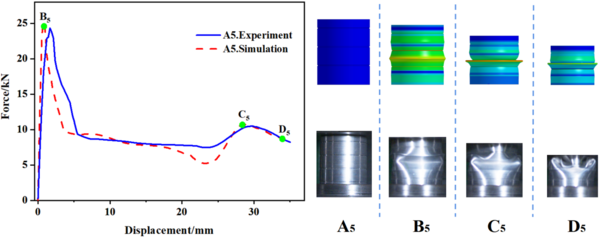

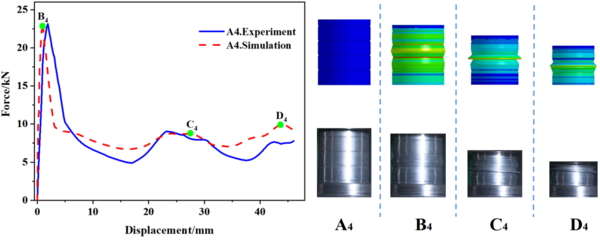

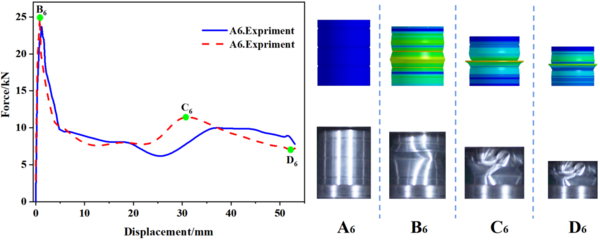

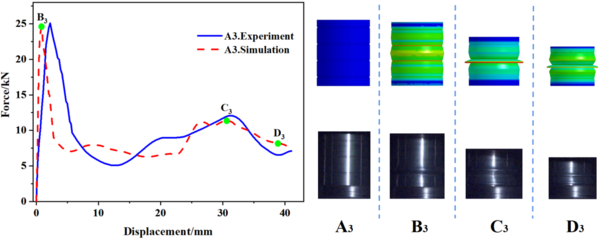

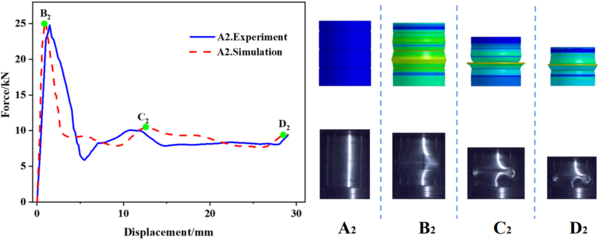

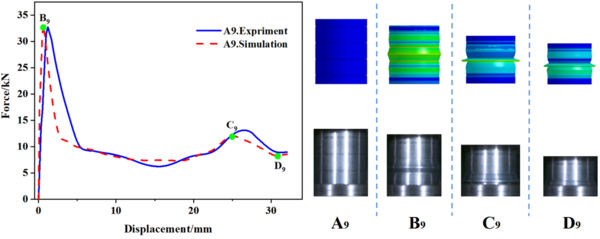

Figure 8. Experimental and simulation results of specimens A1 to A10
In general, the initial peak load is generated at the moment of collision, and the mechanism of its generation involves a number of related factors, such as material parameters, initial impact velocity, strain rate and elastic wave transmission distance, etc., and there is no exact theoretical solution for the initial peak load. The size of the initial peak load of the inner and outer staggered grooved thinwalled circular tubes is influenced by various factors during collision, including impact velocity, crosssectional tube area, strain rate, and dimensional parameters of the grooved structure. The formation of this load is a complex physical process, lacking a theoretical derivation formula.
Based on the CowperSymonds equation [42], the initial peak load can be expressed as:

(2)
where is the initial peak load; is the crosssectional area of the thinwalled circular tube; is the dynamic yield stress of the material; is the static yield stress of the material; is the equivalent strain rate; and are the strain rate parameters.
Under lowvelocity impact, the elastic stress wave generated by the thinwalled circular tube is transmitted to a distance exceeding the height of the tube . Due to the extremely short impact time, the impact velocity can be considered to be essentially unchanged before the initial peak load is reached. If the axial impact velocity of the impact block is , the equivalent strain rate can be expressed as:

(3)
Thinwalled circular tubes with internal and external staggered grooves exhibit a more stable deformation pattern and require lower compression loads for collapse when compared to the tubes without grooves. The efficiency of engineering design can be improved if the initial peak load can be predicted.
The correlation between is plotted from Table 3, as shown in Figure 9. From Table 4, it can be seen that the maximum load of the thinwalled circular tube with internal and external staggered grooves decreases linearly with the groove width . The maximum load of the thinwalled circular tube with internal and external staggered grooves decreases linearly with the groove depth . is the half wavelength (half of the fold length) of the thinwalled straight tube, which can be expressed as:

(4)

(5)

(6)
As illustrated in Figure 9, when the width of the groove b and the depth of the groove are fixed, it becomes evident that the simulation result curve (Eq. (5)) and the curve (Eq. (6)) run parallel to each other. This suggests that the two spatial curves are interrelated:

(7)
where is a constant.

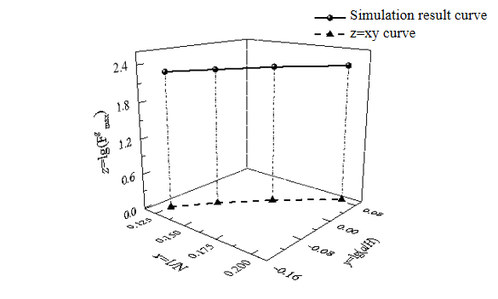

Figure 9. Results of data processing
Based on the aforementioned analysis, this paper draws upon the methodology outlined in the literature [27]. The proposed strategy involves the introduction of a geometric parameter , which is related to the number of grooves , groove size , groove width and groove depth . This will be based on the simulated initial peak load of the ungrooved thinwalled circular tubes. The aim is to predict the initial peak load of the internally and externally staggered grooved thinwalled circular tube. Thus, the geometric parameter can be expressed as:

(8)
At this point, the initial peak load of the thinwalled circular tube with staggered grooves both internally and externally is stated as:

(9)
Based on the above data analysis, this paper represents the parameters as follows:

(10)
Combining Eqs. (3), (9), and (10), the initial peak load of the thinwalled circular tube with internal and external staggered grooves can be determined:

(11)
The initial peak load of the different grooved thinwalled circular tubes under impact are calculated by Eq. (11), and the results are shown in Table 6. The theoretical calculation results are basically consistent with the experimental and numerical values, and the maximum error is only 7.64%. This demonstrates the accuracy and reliability of the initial peak load expression after the introduction of geometric parameters .
Number  Theory (kN)  Simulation (kN)
Experiment (kN)
Error between theory and simulation (%)
Error between theory and experiment (%)

A1  23.93  25.82  25.91  7.32  7.64
A2  24.46  25.14  24.78  2.70  1.29
A3  23.88  24.53  24.28  2.65  1.64
A4  22.79  23.32  23.13  2.27  1.46
A5  24.62  25.21  25.01  2.34  1.56
A6  24.29  24.53  23.91  0.98  1.59
A7  23.34  23.62  23.23  1.19  0.47
A8  39.61  40.78  38.69  2.87  2.38
A9  31.84  33.23  32.72  4.18  2.69
A10  15.93  16.85  16.43  5.46  3.04
To confirm the applicability of the initial peak load prediction expression, Eq. (11) was used to make a theoretical comparison of the A1A8 group of structures in the reference [33] (in this paper the test numbers correspond to A11A18). Table 7 details the relevant structural dimensions, whilst Table 8 showcases the corresponding comparison outcomes.
Number  (mm)  (mm)  (mm)

A11  3  23  2  0.75
A12  4  18.00  2  0.75
A13  9  8.00  2  0.75
A14  10  7.09  2  0.75
A15  6  11.29  3  0.75
A16  6  10.29  4  0.75
A17  7  10.5  2  1.1
A18  7  10.5  2  1.2
Number  Initial peak load (kN)  Error (%)

Theory  Simulation
A11  3  29.13  27.01  7.85
A12  4  27.70  26.32  5.24
A13  9  23.47  22.68  3.48
A14  10  22.35  20.23  10.48
A15  6  24.49  24.07  1.74
A16  6  24.23  23.83  1.68
A17  7  12.37  13.36  7.41
A18  7  10.04  11.09  9.47
Table 8 shows that the predicted results are in good agreement with the experimental results found in the literature. This again confirms the applicability of Eq. (11).
However, Table 8 reveals that the excessive number of grooves in test A14 produces a significant discrepancy between the simulation results and the predicted results. When a thinwalled circular tube with staggered internal and external grooves is subjected to axial compression, as the number of grooves increases, the thinwalled circular tube is rapidly destabilized and the initial peak load decreases sharply. At this point, the Eq. (11) is no longer applicable.
In this scenario, one can adjust the parameters of Eq. (11) as per the available experimental data to attain anticipated outcomes, thereby aiding in the selection of thinwalled circular tubes, predicting the initial peak load and advancing the project progress.
In this research, the axial buckling modes and crashworthiness of circular tube with external linear gradient grooves are investigated theoretically, experimentally and numerically. The following conclusions may be drawn:
(1) Compared to conventional thinwalled circular tubes, the grooved thinwalled circular tubes can effectively reduce the initial peak load during axial impact loading. The grooves cause symmetrical folding of the tube which directs axial deformation into regular superimposed and contracting patterns, thereby effectively improving the axial impact performance of thinwalled circular tubes.
(2) Through the comparison of experimental data and finite element simulation analyses of the internal and external grooved thinwalled circular tubes, it is found that the loaddisplacement curves are in good agreement, and the wrinkles produced on the thinwalled circular tubes are approximately similar at the same moment. Furthermore, the deformation from the beginning to the end of compression can correspond to each other. The maximal error value of the initial peak load is only 5.13%, and the experimental result is basically the same as that of the simulation result.
(3) The impact of groove dimensions (including the number of grooves , the width of grooves , and the depth of grooves ) on the initial peak load is analyzed via both experimental and simulation data. The twodimensional relationship graph clearly indicates that the initial peak load reduces as groove width , groove depth , and the number of grooves increase. Finally, the geometric parameter is introduced to derive a initial peak load prediction expression for thinwalled circular tubes with internal/external staggered grooves. By comparing the predicted results of this expression with previous experimental data, it was observed that the initial peak load of the grooved thinwalled tubes is mostly consistent with the predicted results within a certain dimensional interval. This confirms the reliability of the initial peak load prediction expression.
[1] Du X. Impact dynamics and crashworthiness design of cylindrical shell. Science Press, 2004.
[2] Tang Z., Liu S., Zhang Z. Analysis of energy absorption characteristics of cylindrical multicell columns. ThinWalled Structures, 62:7584, 2013.
[3] Mamalis A.G., Manolakos D.E., Ioannidis M.B., et al. Finite element simulation of the axial collapse of metallic thinwalled tubes with octagonal crosssection. ThinWalled Structures, 41(10):891900, 2003.
[4] Rossi A., Fawaz Z., Behdinan K. Numerical simulation of the axial collapse of thinwalled polygonal section tubes. ThinWalled Structures, 43(10):16461661, 2005.
[5] Liu Y.C., Day M.L. Simplified modelling of thinwalled box section beam. International Journal of Crashworthiness, 11(3):263272, 2006.
[6] Zhang X., Huh H. Crushing analysis of polygonal columns and angle elements. International Journal of Impact Engineering, 37(4):441451, 2010.
[7] Liu W., Lin Z., Wang N., et al. Dynamic performances of thinwalled tubes with starshaped cross section under axial impact. ThinWalled Structures, 100:2537, 2016.
[8] Yamashita M., Gotoh M., Sawairi Y. Axial crush of hollow cylindrical structures with various polygonal crosssections: Numerical simulation and experiment. Journal of Materials Processing Technology, 140(1–3):5964, 2003.
[9] Fan Z., Lu G., Liu K. Quasistatic axial compression of thinwalled tubes with different crosssectional shapes. Engineering Structures, 55(4):8089, 2013.
[10] Tang Z., Liu S., Zhang Z. Energy absorption properties of nonconvex multicorner thinwalled columns. ThinWalled Structures, 51:112120, 2012.
[11] Reddy S., Abbasi M., Fard M. Multicornered thinwalled sheet metal members for enhanced crashworthiness and occupant protection. ThinWalled Structures, 94:5666, 2015.
[12] Abbasi M., Reddy S., GhafariNazari A., et al. Multiobjective crashworthiness optimization of multicornered thinwalled sheet metal members. ThinWalled Structures, 89:3141, 2015.
[13] Tran T.N., Hou S., Han X., et al. Theoretical prediction and crashworthiness optimization of multicell triangular tubes. ThinWalled Structures, 82:183–195, 2014.
[14] Chen W., Wierzbicki T. Relative merits of singlecell, multicell and foamfilled thinwalled structures in energy absorption. ThinWalled Structures, 39(4):287306, 2001.
[15] Zhang X., Cheng G., Zhang H. Theoretical prediction and numerical simulation of multicell square thinwalled structures. ThinWalled Structures, 44(11):11851191, 2006.
[16] Najafi A., RaisRohani M. Mechanics of axial plastic collapse in multicell, multicorner crush tubes. ThinWalled Structures, 49(1):112, 2011.
[17] Zhang X., Zhang H. Energy absorption of multicell stub columns under axial compression. ThinWalled Structures, 68:156163, 2013.
[18] Nia A.A., Parsapour M. An investigation on the energy absorption characteristics of multicell square tubes. ThinWalled Structures, 68:2634, 2013.
[19] Fang J., Gao Y., Sun G., et al. On design of multicell tubes under axial and oblique impact loads. ThinWalled Structures, 95:115126, 2015.
[20] Tran T.N., Hou S., Han X., et al. Theoretical prediction and crashworthiness optimization of multicell square tubes under oblique impact loading. International Journal of Mechanical Sciences, 89:177193 , 2014.
[21] Qiu N., Gao Y., Fang J., et al. Crashworthiness analysis and design of multicell hexagonal columns under multiple loading cases. Finite Elements in Analysis & Design, 104:89101, 2015.
[22] Nia A.A., Parsapour M. Comparative analysis of energy absorption capacity of simple and multicell thinwalled tubes with triangular, square, hexagonal and octagonal sections. ThinWalled Structures, 74:155165, 2014.
[23] Mahmoodi A., Shojaeefard M.H., Googarchin H.S., et al. Theoretical development and numerical investigation on energy absorption behavior of tapered multicell tubes. ThinWalled Structures, 102(102):98110, 2016.
[24] Zhang X., Zhang H. Axial crushing of circular multicell columns. International Journal of Impact Engineering, 65:110125, 2014.
[25] Tabacu S. Axial crushing of circular structures with rectangular multicell insert. ThinWalled Structures, 95:297309, 2015.
[26] Kim H.S. New extruded multicell aluminum profile for maximum crash energy absorption and weight efficiency. ThinWalled Structures, 40(4):311327, 2002.
[27] Zhang X., Cheng G. A comparative study of energy absorption characteristics of foamfilled and multicell square columns. International Journal of Impact Engineering, 34(11):17391752, 2007.
[28] Zhang X., Wen Z., Zhang H. Axial crushing and optimal design of square tubes with graded thickness. ThinWalled Structures, 84:263274, 2014.
[29] Daneshi G.H., Hosseinipour S.J. Grooves effect on crashworthiness characteristics of thinwalled tubes under axial compression. Materials & Design, 23(7):611617, 2002.
[30] Daneshi G.H., Hosseinipour S.J. Elastic–plastic theory for initial buckling load of thinwalled grooved tubes under axial compression. Journal of materials processing technology, 125126(36):826832, 2003.
[31] Hosseinipour S.J., Daneshi G.H. Energy absorbtion and mean crushing load of thinwalled grooved tubes under axial compression. ThinWalled Structures, 41(1):3146, 2003.
[32] Hosseinipour S.J., Daneshi G.H. Experimental studies on thinwalled grooved tubes under axial compression. Experimental Mechanics, 44(1):101108, 2004.
[33] Mirmohammadsadeghi S.E., Khalili K., Ahmadi S.Y., Hosseinipour S.J. Experimental and finite element simulation investigation of axial crushing of grooved thinwalled tubes. International Journal of Advanced Manufacturing Technology, 77(912):16271643, 2015.
[34] Liu Z., Hao W., Xie J., et al. Axialimpact buckling modes and energy absorption properties of thinwalled corrugated tubes with sinusoidal patterns. ThinWalled Structures, 94(94):410423, 2015.
[35] Alkhatib S.E., Tarlochan F., Eyvazian A. Collapse behavior of thinwalled corrugated tapered tubes. Engineering Structures, 150:674692, 2017.
[36] Moradpour A., Elyasi M., Montazeri S., et al. Developing a new thinwalled tube structure and analyzing its crushing performance for AA 60601 and mild steel under axial loading. Transactions of The Indian Institute of Metals, 69(5):11071117, 2016.
[37] Yuen S.C.K., Nurick G.N. The energyabsorbing characteristics of tubular structures with geometric and material modifications: An overview. Applied Mechanics Reviews, 61(2):020802, 2008.
[38] Darvizeh A., Darvizeh M., Ansari R., et al. Analytical and experimental investigations into the controlled energy absorption characteristics of thickwalled tubes with circumferential grooves. Journal of Mechanical Science and Technology, 28(10):41994212, 2014.
[39] Montazeri S., Elyasi M., Moradpour A. Investigating the energy absorption, SEA and crushing performance of holed and grooved thinwalled tubes under axial loading with different materials. ThinWalled Structures, 131:646653, 2018.
[40] Zheng Y.Q., Zhu X.C., Dong X.Q., et al. Theoretical and experimental studies on the axial impact behavior of Q235B longitudinally welded tubes. Journal of Vibration and Shock, 35(20):98103, 2016.
[41] Niknejad A., Abedi M.M., Liaghat G., et al. Foamfilled grooved tubes with circular crosssection under axial compression: a theoretical analysis. Iranian Journal of Science and TechnologyTransactions of Mechanical Engineering, 40(3):155167, 2016.
[42] Wei Y., Yang Z., Yan H., et al. Proactive regulation of axial crushing behavior of thinwalled circular tube by gradient grooves. International Journal of Mechanical Sciences, 108:4960, 2016.
[43] Yang Z., Yu Y., Wei Y., et al. Crushing behavior of a thinwalled circular tube with internal gradient grooves fabricated by SLM 3D printing. ThinWalled Structures, 111:18, 2017.
[44] Abedi M.M., Niknejad A., Liaghat G.H., et al. Foamfilled grooved tubes with circular cross section under axial compression: an experimental study. Iranian Journal of Science and Technology, Transactions of Mechanical Engineering, 42:401413, 2018.
