Application of Nano cell based solar imprints on the top-coat surface of EV’s in Paint Shop

Abstract:

The automotive industry is continuously evolving, with paint technology being a significant area of development due to its dual role in aesthetics and protection. This paper explores the historical advancements in automotive paint technology and introduces the innovative application of nano-cell-based solar imprints on the top-coat surface of electric vehicles (EVs). By integrating these solar imprints during the paint process, the study aims to enhance the energy efficiency and sustainability of EVs while maintaining high standards of visual appeal.

Keywords: Automotive paint technology, Nano-cell solar imprints, Electric vehicles, Sustainable manufacturing, Paint shop processes.

Introduction:

The evolution of the automobile industry has been marked by continuous advancements in technology and manufacturing processes. From Carl Benz's invention of the first car in 1886 to Henry Ford's revolutionary assembly line in 1908, the industry has seen significant improvements in efficiency and production techniques. One critical aspect of automobile manufacturing is the painting process, which has evolved from simple air-dry varnish techniques to sophisticated multi-step procedures. This paper reviews the historical developments in automotive paint technology and explores the application of nano-cell-based solar imprints on the top-coat surface of EVs, aiming to improve energy efficiency and sustainability.

Carl Benz invented the first car in 1886, which Emile Lavassor subsequently remodeled with the engine at the front. Ransom Eli Olds used automated production to build cars in 1901, but Henry Ford's Model T transformed manufacturing in 1908. Ford's unique assembly line, which included separate stations and a moving line, reduced production time to 90 minutes. This strategy, in which workers stayed fixed, is still used in modern automobile assembly, demonstrating Ford's long-lasting influence on the industry.

The car production process is divided into numerous stages, beginning with the vehicle's design and engineering, considering public preferences, including cutting-edge technology, and assuring aesthetic appeal. Following that, the acquisition of raw materials prioritizes sustainability and cost-effectiveness. The obtained materials are stamped or pressed at the Press shop to create sheet metal components such as doors, roofs, and side frames. These parts are subsequently combined in the Body Shop to create the single-body structure (BIW). The paint shop ensures a dust-free atmosphere in which to apply numerous coats of protective coatings on the BIW, providing the best results. The trim line assembly is the next process, which involves putting together trim elements, insulation, and the car's interior. The car next travels to the mechanical line, the core of the manufacturing process, where all mechanical components, including the engine and tires, are assembled. In the last phase, thorough checks and tests are carried out to assure quality and safety.of Form

Paint application is one of the most challenging aspects of automobile manufacturing. The paint not only protects the body surface but also enhances its visual appeal. Enhance visual appeal by using shade and gloss - crucial selling points. The innovation used must meet high criteria of quality and cost-effectiveness while also being environmentally sustainable. Cutting-edge improvements in all important fields, together with our expertise in coordination, allow us to offer top-quality and cost-effective turnkey systems. As a General Contractor, we take responsibility for scheduling, project expenses, plant implementation, and the construction and its services. Car paint is used on cars for protection and decoration. Currently, water-based acrylic polyurethane lacquer paint is the most widely used paint due to its ability to reduce the environmental impact of painting.

The main organizational framework of this review study is as follows. The introduction to the painting technologies and its development with industrial evolution. Based on this, a review covers the literature pertaining to important paint shop methodologies and prospective applications of nano cell-based surface coating on automobiles. This technology analyses the steps involved in implementing important technologies and reviews pertinent literature on the use of emerging nano solar applications. The possible practical significance of nano solar imprints in paint shop and the ensuring research direction are anticipated by Discussion and Prospect. The conclusion provides an overview and reference for the informed development of the manufacturing sector by summarizing the review's findings.

Painting Technologies in Automobiles:

Since the late 1800s, the automobile paint technology has made significant breakthroughs since the manufacturing of the first cars. Automotive paint in the early 20th century was constrained by the technology available at that time, mostly utilizing air-dry varnish techniques that were originally designed for hardwood furniture and horse-drawn carriages. Yet, this method had notable disadvantages such as restricted shade choices and a laborious application procedure that required repetitive brush applications and prolonged drying times, leading to manufacturing delays.

During the late 1800s to the early 1900s, acquiring appropriate automotive paints was difficult due to the recent development of cars. People painted their automobiles by hand using brushes and paints that were readily accessible in their area. Regrettably, the paint would quickly fade and crack, necessitating repeated repainting. By 1900, car manufacturers began using carriage varnishes, which required a time-consuming coating process of up to 40 days per vehicle. Following the drying process, more procedures such as sanding and polishing were required.

In the mid-1900s, Dr. George Sargent undertook pioneering research that revolutionized car paint technology. His research was on electroplating chrome and identified a crucial ratio of one-part sulfuric acid to 100 parts chromium. The discovery, outlined in a 1920 publication, was a crucial moment in the field, leading to progress in chrome finishes and influencing the development of automobile paint systems.

In the 1930s, vehicle paint technology saw a tremendous revolution with the adoption of stoving veneers by manufacturers. These paints are well-known for creating shinier surfaces and greatly decreasing drying times, successfully overcoming the limitations of previous painting methods. This innovation enhanced the aesthetic appeal of cars and optimized the manufacturing process, leading to increased efficiency and faster production timelines. Dr. William Peacock significantly advanced the chromium field by creating a silvering spray during this time. The 1932 invention was initially designed for silvering mirrors but ended up transforming mirror manufacture by significantly cutting prices and improving availability. Dr. Peacock's progress has a wide-reaching impact, not limited to the automobile industry, highlighting the interconnectedness of technology advancements in today's dynamic times.

Fast-forward to 1955, General Motors ushered in a substantial change in automotive paint technology by introducing a new acrylic paint for their vehicles. This advanced paint necessitated a heating process after application to get a consistent and even surface. Although effective, it did not reach the same level of reflecting brightness as stoving polishes. General Motors advanced paint application procedures. Ford Motor Co. advanced the advancement by including acrylic stoving lacquers into their manufacturing process by 1960. This intentional action was taken to improve the shiny look of their cars, showcasing the ongoing progress and rivalry in the automotive paint industry during this changing period.

Today, vehicle painting has developed into a sophisticated, multi-step process that takes environmental factors into account. The modern car paint system consists of six separate layers, each applied individually to offer corrosion resistance, durability, and vivid color. The layers are precisely prepared to attach flawlessly, creating a robust coating that is resistant to flaking or peeling. The evolution from simple varnish systems to the current environmentally important procedure highlights the continuous advancements in automotive paint technology. As the industry progresses, there is a continuous focus on reconciling the need for high-performance coatings with environmental sustainability to ensure that our cars are both physically attractive and environmentally friendly.

Historical Advancements in Automotive Paint Technology

In the early 20th century, automotive paint was primarily air-dry varnish, which had limited color options and required multiple brush applications. The process was time-consuming and often resulted in manufacturing delays. By the 1930s, stoving enamels were introduced, reducing drying times and enhancing the aesthetic appeal of vehicles. Significant contributions from researchers like Dr. George Sargent and Dr. William Peacock further advanced the field with innovations in electroplating and silvering sprays, respectively.

Modern Automotive Paint Systems

Today's automotive paint process involves multiple layers, including pre-treatment, electrodeposition, primer, basecoat, and clearcoat. Each layer serves a specific function, from corrosion resistance to providing a durable and visually appealing finish. Modern paint technologies focus on reducing environmental impact through the use of water-based acrylic polyurethane lacquer and other sustainable materials.

Painting Process:

The automotive paint shop is a complex setting where a detailed process is carried out to produce visually striking vehicles while providing strong protection against environmental factors. In the paints and coatings industry, there are several roles, from high-volume original equipment manufacturers (OEMs) with automated systems to custom shops that do contract work with manual equipment.

The painting process is governed by five key methods: pre-treatment and electrodeposition (ED), ED sanding, sealant and PVC line application, primer, and topcoat. Car paints have a dual function: determining hues and aesthetics while also offering essential protection against corrosion and weathering. Conventional paint films, approximately the thickness of a human hair, are composed of four layers.

The car body is prepared, immersed in an electrocoat, then coated with a primer in a typical technique to guard against corrosion. The layers are subsequently burned onto the surface using an oven. After applying the basecoat for color and the clearcoat for aesthetics and scratch resistance, the composition process is completed with another round of oven heating.

The Pre-Treatment and Electro Dip (PTED) procedure plays a crucial role in creating a rust-resistant base using contemporary technology. This treatment greatly improves the vehicle's ability to resist corrosion, therefore increasing its longevity and strength. The next phase includes a regulated curing process in an oven setting to guarantee the best adhesion and strengthening of the protective coatings.

The sealant is applied with precision and carefully inspected by an auditor to ensure thorough evaluation and necessary repairs on the sealant bead. Thorough supervision is crucial for ensuring the effective and long-lasting incorporation of the protective barrier. The following primer application is a crucial step that necessitates meticulous preparation. An automated system ensures accurate flange masking for outside surfaces, while skilled operators supervise the process for interior surfaces. The BASE coat determines the color identity of the car, while the topcoat improves shine and luster, improving visual attractiveness.

It is crucial to place the coated object back into a controlled oven environment to ensure the curing process, which creates a durable bond with the vehicle's surface. In the last steps, polishing procedures are used to enhance the surface finish, and wax is carefully applied, including cavity filling processes to fix any faults.

The meticulous and refined method in the paint shop goes beyond just looks, demonstrating a dedication to excellence and the quest for perfection. The completed car coating showcases visual beauty and the combination of talent and strength in this precise operation.

2. Problem background:

Henry Ford invented the moving assembly line in 1914, which cut the production time from 12.5 hours to 93 minutes. One car departed the line every three minutes, using fewer laborers than previously (Georgano, 1985). The

The purchaser may choose from a variety of bodywork options, although there weren't many paint colors available. In 1909, Ford informed his management staff that going forward, "Any customer can have a car painted any color that he wants so long as it is black," according to his autobiography (Ford & Crowther, 1922). Nevertheless, the Model T was not offered in black during its initial years of manufacture, from 1908 to 1913 (McCalley, 1994). Instead, it was offered in a variety of colors, depending on the kind of car: gray for town cars, red for touring cars, and green for coupes and Landaulets (as well as certain town and touring vehicles). All automobiles had midnight blue paint and black fenders by 1912. Only in 1914 was the one-color notion eventually put into practice. From 1914 to 1926, Ford recommended the use of black paint, most likely because of its affordability and longevity. A century later, mass customisation has supplanted Ford's color approach, with the idea being that the more colors that are offered, the higher the profit. What is the significance for the factory? This section focuses on significant issue areas that changes in automotive production policy have brought about.

2.1 Color palette

Although paint coatings are crucial for safeguarding the body's surface, people typically notice them for their color. Color increases visual attraction, making it a crucial factor in purchasing decisions. PPG research indicates that approximately 60% of buyers cited color as a key consideration when purchasing a vehicle. Fig. 1 shows the proportion by color according to vehicle build data for the 2015 model year. Nearly 75% of cars in 2015 had paint jobs in the conservative hues of silver, gray, black, and white.

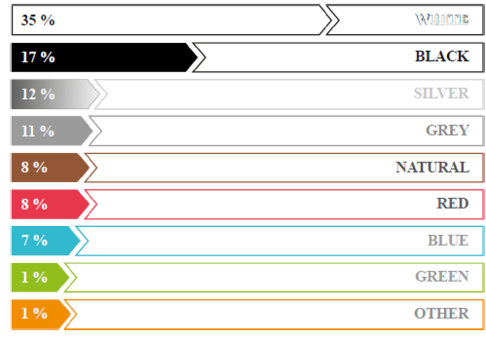

Fig. 1. 2015 Global Color Popularity – PPG data

The color palette has grown dramatically year over year. The range of colors and their characteristics is expanding as well. "Carmakers today have an endless variety of options," stated Jane E. Harrington, manager of PPG, "with a full spectrum of colors that can range in appearance from bright sparkle to silky pearlescence." This demonstrates that sellers are aware of these variations among possible customers. In response to the ongoing need for innovative color options in car coatings, PPG sent automakers 64 exterior hues to choose from when customizing vehicles for the 2018–2019 model year. The strategy and painting method are directly impacted by the pattern that has been noticed.

2.2. Painting process

Nowadays, painting is a multi-step, intricate, costly, energy-intensive procedure that has a negative impact on the environment.
Up to six layers of paint are used in automotive paint; these layers are applied individually but must cooperate to give color, durability, and corrosion protection. According to Geffen and Rothenberg (2000), each of these layers has unique performance criteria and needs to be ready in order to bind with the subsequent layer and create a strong covering that won't peel or flake.
Economic metrics show that painting is a significant production expense due to its high material usage and significant capital investments. The precise chemical composition, the color, and the method of application all affect the price of automobile paint ingredients (Geffen & Rothenberg, 2000).
The principal source of air emissions of controlled chemicals, such as volatile organic compounds (VOCs) and hazardous air pollutants (HAPs), is the painting process. The painting process also generates solid and hazardous waste, such as paint overspray waste, chemicals needed to clear paint lines, and application equipment trash (Geffen & Rothenberg, 2000).
Automotive paint quality, which is vital to product sales, is mostly determined by outside variables. Numerous factors, including substrate composition, temperature, humidity, air pressure, and air pressure, can affect color match, and many of these are outside the purview of contemporary facilities. The primary issue is that robots perform the painting process, necessitating the inclusion of both process and robot kinematics simulations in the simulation. Painting shop robots are typically employed in conjunction with line-tracking conveyors, which greatly complicates the task for simulation developers. For these reasons, research and development is still ongoing on painting process simulation techniques that would faithfully mimic the actual procedure.

2.3. Painting strategy

Reorganizing the painting process has become required due to the increasing number of colors available. Using an equal number of painting guns makes sense if there aren't many colors available. When the color palette is large, it becomes impossible to use this method because of factors like scarce resources and workspace, or expensive extra expenses. The most widely used remedy is the use of intricate painting systems, such as robotic cells. Although this type of technology becomes more flexible and efficient, robotic tools have to be modified every time the color shifts. The challenge of decreasing changeovers and associated expenses has arisen as a result of the painting strategy's advancement.

2.4. Production planning

At first, the entire automobile manufacturing process was a flow process, beginning at the press shop and continuing through the body and paint shops and ending at the assembly line (Fig. 2).
To guarantee a steady flow of supplies and finished goods, a production plan was established prior to the commencement of manufacturing. Sequencing was usually the last step of production planning; here, a build sequence was chosen so that the orders could be filled on a particular day (Epping, Hochstattler, & Oertel, 2004). This step was crucial because, since each order must go through multiple production stages and satisfy additional optimization requirements, sequencing has a significant impact on both production quality and prices. Parello, Kabat, and Wos were the first to explain this problem, which they named the Car Sequencing Problem (CSP) (1986). There is still a significant gap between the problem addressed in the literature and the actual industrial problem, even with the massive quantity of research on CSP conducted in recent years (Solnon, Cung, Nguyen, & Artigues, 2008). The rationale is that automotive variety changes occur far more frequently than once a day due to the steadily rising demand for specific car characteristics. Orders from customers are continuously fed into planning systems, allowing production schedules to be set for a maximum of three to four hours. This means that there isn't enough data to plan for an entire working shift. In reaction to the difficulties of long-term planning, the paint shop's organization has changed.

2.5. Paint shop structure

Over time, the configuration of the production line at the paint shop has undergone alterations. Significantly, buffers were present on the lines. Figure 3 displays a simplified representation of the updated paint shop's structure.

600px

Fig. 2. Stages of car production.

Buffering is crucial for maintaining the uninterrupted flow of the industrial process. If there is a period when the paint shop is not operational because there is not enough paint, the vehicles are kept in a designated area until the paint shop is fully operational again. In addition, in the event of a malfunction in the body shop, vehicle bodies that are held in the buffer are continuously moved to an output line, thereby avoiding any interruptions in the painting process. Empirical evidence has demonstrated that this solution is superior in terms of efficiency and reliability compared to the flow system.
Buffer potential has also been utilized for an additional purpose - to facilitate the rearrangement of automobile bodies moved from the body shop to the paint shop, in order to minimize the frequency of painting gun changeovers.

An optimal approach would involve constructing a sufficiently extensive buffer where each line is exclusively allocated for a distinct hue (Fig. 4).
The size of the buffers is constrained by the available unused area. The buffer structure is the sole field that can be modified.

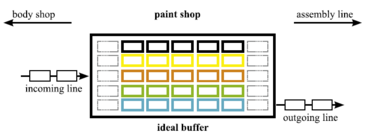

Fig. 4. Structure of ideal buffer with reserved line.

As a component of the project, three manufacturers located in Central Europe were visited.
Each of them utilizes buffers with distinct structures. This document provides a comprehensive description of how the organization of car flow is managed using the selected buffers.

The movement inside the blue columns is conducted vertically, but the transportation between buffering sites in the black columns is contingent upon the buffer structure.
The first buffer structure permits the movement of an automobile solely within a single row (Fig.5).

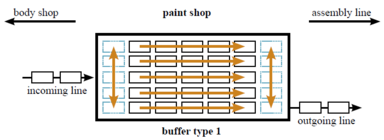

Fig. 5. Structure of exemplary buffer – type 1.

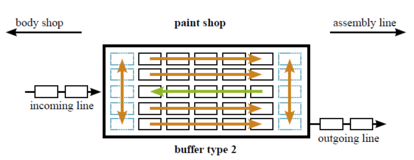

Fig. 6. Structure of exemplary buffer – type 2.

The second buffer structure (Fig. 6) includes a line with a reverse transport direction (green line), allowing automobiles from the last column of the other lines to be carried to the first position of this specific line.
The third buffer structure is equipped with a bypass mechanism, which is responsible for transferring any automobile body from the last column in the buffer to any location in the first column, thus reversing the sequence of bodies. This is seen in (Fig-7).

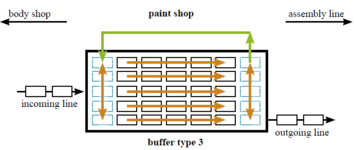

Fig. 7. Structure of exemplary buffer – type 3.

The architecture of the paint shop appears to be a highly efficient and effective solution that has undergone significant development over the years. Where is the primary issue located? The present systems used for managing buffers are inadequate.

2.6. Buffer control system in the paint shop

The buffer control system should address two issues that are closely linked to the purpose of a buffer. These objectives include the efficient management of uninterrupted traffic flow and the automated production of optimal sequences of cars.

To effectively avoid unexpected downtimes and interruptions that hinder productivity and incur substantial time and financial losses, one commonly employed approach is to eliminate the sequence optimization problem.
While visiting paint businesses, we witnessed various incorrect methods used to address the sequencing problem. The next paragraphs will explain the most crucial realizations of the control system. For the sake of safeguarding industrial data, the examples provided are designed to give a general overview of the situation without divulging specific information.
Factory A utilizes buffer type 2 and relies on operator expertise to determine when to load and unload the buffer.
In close proximity to the buffer, a workstation specifically built for the decision-making process was implemented (Fig. 8).

The buffer operator utilizes four monitors, each serving a distinct purpose:

• Monitor 1 shows a text file (such as MS Excel) that contains the production plan. It is updated approximately every 3-4 hours and shows the current production status.

• Monitor 2 displays the current state of the buffer using a SCADA application.

• Monitor 3 shows a QR code (previously known as VIN) that is read by a digital camera.

• Monitor 4 displays an operator panel.

The decision-making process occurs via multiple stages. Upon scanning the QR code, the operator receives information regarding the color that can be allocated to a body. The selection of one of the available colors is determined by comparing the information provided on monitors 1 and 2.
Next, a determination is made regarding the specific location within the buffer where an automobile will be guided. Meanwhile, the operator chooses one of the vehicles stored in the buffer for the painting process, aiming to achieve the longest sequences of cars with the same color. Numerical calculations and statistical analysis are only conducted by the operator.

Consequently, no sophisticated mathematical analysis is conducted. Furthermore, certain information, such as details about failures or paint flaws, is exclusively communicated verbally to the operator, without being recorded in the IT system. This information has a substantial influence on the process of making decisions.

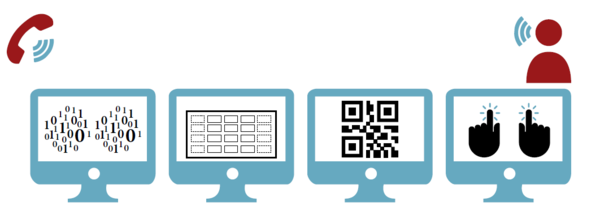

Fig. 8. Exemplary workplace in real paint shop.

The primary issues related to the methodology employed in factory A can be succinctly outlined as follows:

• A workstation specifically designed for operators needs to be established.

• As a result of having 3 shifts, a minimum of 3 individuals must be hired.

• Manufacturing designers must provide a work environment that is both safe and conducive to good health for the operators.

• The operator's role can be characterized as demanding, repetitive, and monotonous, particularly when ergonomic considerations are disregarded.

• The effectiveness of sequencing relies more on intensive human effort rather than current technology.

• There is a lack of logical connections between the methods that individual operators utilize.

• The probability of the operator making an error is significant.

• The level of reliance on operator expertise is substantial. If an experienced operator is not available, there can be a substantial decrease in production.

The paint shop in plant B is organized with a buffer type 3 and utilizes automated car flow management. These systems rely on historical data and statistical analysis for their operation. The implemented program fails to consider the presence of unforeseen emergency scenarios. Consequently, if there is any malfunction, the buffer switches to manual control.
Every car is assigned a pre-established color prior to the commencement of manufacturing. Initially, specific colors are assigned fixed priority at the start of the decision-making process. Subsequently, the likelihood of selecting a particular color to paint a car is determined. Cars with the most probable color will be given the highest priority. This strategy is undeniably superior to the solution employed in factory A, although it still possesses numerous drawbacks:

• Although human work is partially reduced, some of the difficulties that existed in factory-A still persist.

• The system lacks flexibility as it only considers long-term trends and not short-term ones.

• Relying solely on past data renders it impracticable to adjust to fluctuations in the buffer status.

Factory C utilizes buffer type 1. The simple nature of the structure reduces the potential variations throughout construction sequences, hence complicating the decision-making process. Efforts have been made in recent years to address this issue without altering the buffer structure, however all these have been unsuccessful. Consequently, the buffer's potential is not completely harnessed, as its primary objective remains to guarantee uninterrupted production.
In summary, the increase in the color options available in response to market demands has led to a higher frequency of robot changeovers. Factories will experience an increase in the following indicators: paint loss, solvent use for cleaning painting guns, and environmental pollution. Consequently, the expenses of production are increasing. Hence, the automotive industry has been continuously endeavoring to minimize the frequency of color alterations within the enamel booth.

Methodology

Integration of Nano-Cell-Based Solar Imprints

The integration of nano-cell-based solar imprints involves embedding solar cells within the top-coat layer of the paint. This process is designed to capture solar energy, which can then be used to power various functions of the EV, enhancing its overall energy efficiency. The methodology includes:

1. Material Selection: Choosing suitable nano-cell materials that are compatible with the automotive paint process.

2. Application Process: Developing a technique to embed the nano-cells within the top-coat layer without compromising the paint's durability or aesthetic quality.

3. Testing and Validation: Conducting rigorous tests to ensure the solar imprints are effective in capturing solar energy and that the paint's protective properties remain intact.

Painting Process

The painting process in the automotive industry consists of several key steps, each critical to achieving a high-quality finish. The process includes pre-treatment and electrodeposition (ED), ED sanding, sealant and PVC line application, primer application, and the final topcoat. The integration of nano-cell-based solar imprints is incorporated during the topcoat application phase.

Concept Overview

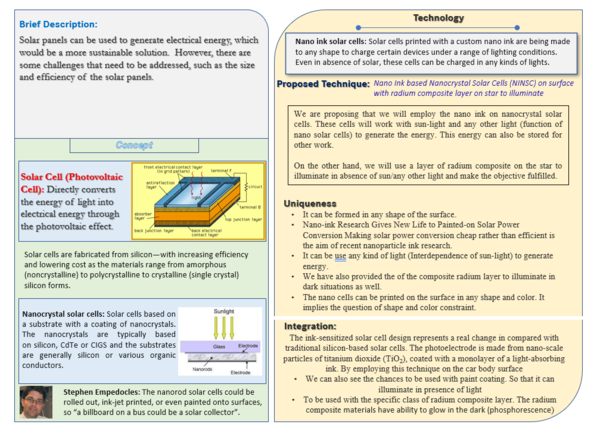

The proposal involves the innovative use of nano ink-based nanocrystal solar cells (NINSC) combined with a radium composite layer. This integration aims to harness solar and artificial light to generate energy and store it for later use while providing illumination in low-light conditions through phosphorescence.

Detailed Explanation and Methodology

1. Nano Ink Based Nanocrystal Solar Cells (NINSC)

1.1 Principle of Operation

• Nano Ink Solar Cells: These are solar cells printed with a custom nano ink that allows them to be flexible and adaptable to various shapes and surfaces. These cells can work with sunlight and other light sources to generate energy, making them versatile and efficient in diverse lighting conditions.

• Photovoltaic Effect: NINSCs convert light into electrical energy through the photovoltaic effect. This is achieved by coating a substrate with a light-absorbing ink, typically consisting of nano-scale particles such as titanium dioxide (TiO2) coated with light-sensitive dyes.

1.2 Materials and Structure

• Photoelectrode: Made from nano-scale TiO2 particles coated with a monolayer of light-absorbing ink.

• Substrate: Typically silicon or various organic conductors, providing a base for the nanocrystals.

• Ink Composition: The ink contains nanocrystals of materials such as silicon, CdTe (Cadmium Telluride), or CIGS (Copper Indium Gallium Selenide), which are known for their high efficiency in light absorption and energy conversion.

1.3 Application Process

• Printing: The nano ink solar cells are printed onto the vehicle's surface using specialized ink-jet printers or similar technologies. This allows for precise and customizable application, enabling the cells to conform to the vehicle's contours and design.

• Layering: The solar cells are applied as part of the top-coat layer, ensuring they are protected while still exposed to light for energy generation.

2. Radium Composite Layer for Illumination

2.1 Principle of Operation

• Phosphorescence: The radium composite layer has the ability to glow in the dark, a property known as phosphorescence. This material absorbs light (from the sun or artificial sources) during the day and releases it slowly in the absence of light, providing illumination.

• Composite Material: Typically, radium-based materials or other phosphorescent compounds are used, which can store and emit light over extended periods.

2.2 Application Process

• Composite Layer: A layer of the radium composite material is applied over or integrated with the nano ink solar cells. This ensures that the vehicle can generate and store energy during the day and illuminate at night.

• Surface Integration: The composite material is seamlessly integrated into the top-coat layer, ensuring durability and maintaining the vehicle’s aesthetic appeal.

3. Combined Functionality and Benefits

3.1 Energy Generation and Storage

• Light Utilization: The NINSCs can generate energy from both sunlight and artificial light. This energy can be stored in the vehicle’s battery or other storage systems for use in powering various functions of the EV.

• Continuous Operation: The ability to generate energy from any light source ensures that the EV remains efficient in diverse environmental conditions, not just under direct sunlight.

3.2 Illumination in Dark Conditions

• Phosphorescent Illumination: The radium composite layer provides illumination in the absence of light, enhancing visibility and safety. This feature is particularly beneficial for EVs, which can use this light for aesthetic and functional purposes (e.g., illuminated logos, safety markers).

3.3 Design Flexibility

• Shape and Color Customization: The nano ink solar cells can be printed in various shapes and colors, offering flexibility in design without compromising the functionality of the solar cells. This allows for creative and practical applications on the vehicle’s surface.

3.4 Cost-Effectiveness

• Affordable Solar Power Conversion: The use of nanoparticle ink and advanced printing techniques aims to make solar power conversion cheaper, focusing on cost-effectiveness rather than just efficiency. This approach aligns with the goal of making sustainable technology more accessible and widely adopted.

Implementation Steps

1. Material Selection: Choose appropriate nanocrystals and composite materials based on efficiency, cost, and desired properties (e.g., flexibility, phosphorescence).

2. Surface Preparation: Clean and prime the vehicle’s surface to ensure optimal adhesion and performance of the solar cells and composite layer.

3. Printing and Application: Use advanced printing techniques to apply the nano ink solar cells and radium composite layer. Ensure uniform coverage and integration into the top-coat layer.

4. Curing and Testing: Cure the applied layers to ensure durability and test the system for energy generation efficiency and illumination performance.

5. Quality Control: Conduct rigorous inspections and quality checks to ensure the final product meets all performance and aesthetic criteria.

6. Documentation and Training: Document the process and provide training to ensure consistency and quality in mass production.

Enhanced Energy Efficiency

Preliminary tests indicate that the nano-cell-based solar imprints can capture a significant amount of solar energy, which can be utilized to power various functions of the EV, thereby reducing reliance on traditional energy sources and enhancing the vehicle's overall energy efficiency.

Aesthetic and Protective Qualities

The integration of solar imprints does not compromise the paint's aesthetic or protective qualities. The top-coat layer with embedded nano-cells maintains its durability, corrosion resistance, and visual appeal, ensuring that the vehicle meets high standards of quality and customer satisfaction.

Discussion

The application of nano-cell-based solar imprints on the top-coat surface of EVs presents a novel approach to enhancing the sustainability and energy efficiency of automobiles. This innovation aligns with the industry's ongoing efforts to reduce environmental impact and promote sustainable manufacturing practices. The challenges associated with this integration, such as ensuring compatibility with existing paint processes and maintaining the paint's protective qualities, are addressed through meticulous material selection and rigorous testing.

Conclusion

The application of Nano Ink based Nanocrystal Solar Cells (NINSC) combined with a radium composite layer represents a significant advancement in automotive technology. This approach not only enhances the energy efficiency and sustainability of EVs but also provides innovative illumination solutions, improving safety and aesthetics. By leveraging the flexibility and cost-effectiveness of nano ink technologies, this methodology offers a promising avenue for the future of automotive manufacturing.

The integration of nano-cell-based solar imprints within the top-coat layer of automotive paint represents a significant advancement in both paint technology and sustainable manufacturing. This innovation not only enhances the energy efficiency of EVs but also maintains high standards of visual appeal and protection. Future research should focus on optimizing the application process and exploring additional applications of this technology in other areas of automotive manufacturing. A new cell in the field of possibility of low-cost conversion of photovoltaic energy and focuses on recent advances in molecular design and technological aspects of dyes for applications. i.e., applicable on any kind of surfaces.

References

1. Pal, Ayan, and Gayatri Natu. "Nano-inks for solar cells." Smart Multifunctional Nano-inks. Elsevier, 2023. 305-331.

2. Sahan, Kassim M., et al. "Manufacturing of ink-sensitized solar cell by NANO technology." 2013 1st International Conference & Exhibition on the Applications of Information Technology to Renewable Energy Processes and Systems. IEEE, 2013.

3. Cited from: https://www.technologyreview.com/2009/09/18/123917/nano-ink-boost-for-silicon-solar.

4. Cited from: https://spectrum.ieee.org/nanoink-research-gives-new-life-to-paintedon-solar-power-conversion-
